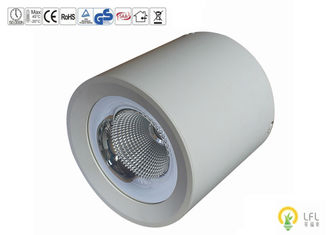

D193*H193mm Ceiling Mounted LED Lights, 40W 4800lm Surface Mount LED Lights
Our ceiling mounted downlight can suitable to many applying . with the good heat sink and Citizen COB LED cheaps , the light efficiency upto 120lm/W and life time to be (L70)50000hrs .- Our light fittings come in 2700/3000/4000/5000K colour temperature LFL-C55 Round ceiling mounted downlight 40W......
Send Inquiry
Product Description
Our ceiling mounted downlight can suitable to many applying . with the good heat sink and Citizen COB LED cheaps , the light efficiency upto 120lm/W and life time to be (L70)50000hrs .
- Our light fittings come in 2700/3000/4000/5000K colour temperature
LFL-C55 Round ceiling mounted downlight 40W 4800lm SDMC<3 citizen COB Dimm commercial lighting 5 years
Product Feature:
Voltage: AC86-264V
LED: Citizen COB
Size: D170*H185mm
LED Driver: LIFUD
Material: Dia-casting aluminum
PF: >0.95
CRI:>80/90/97Ra
CCT: 2700K/3000K/4000K/5000K/6000K
Lifespan: 50,000hours
Warranty: 5 years
Housing Color: white/black
Dimmable type :0-10V/Triac/Dali
SMDC:<3
| Item No. | A | B | Power (W) | Beam Angle |
| Size(mm) | 170 | 185 | 30 | 20°/45° |
| 193 | 193 | 40 | 20°/45° |
| Model No. | Power(W) | Lumen output(lm) | Voltage (V) | LED | Size(mm) | Beam Angle | LED Driver | Material | PF | CRI | CCT | Lifespan |
| MDL-09-C55 | 9 | 1080 | 86~264V | Citizen COB | D90*H90 | 45° | Lifud | Aluminum | >0.95 | ≥80/90/97Ra | 2700/3000/4000/5000K | 50,000hours |
| MDL-15-C55 | 15 | 1800 | 86~264V | Citizen COB | D110*H120 | 20°/45° | Lifud | Aluminum | >0.95 | ≥80/90/97Ra | 2700/3000/4000/5000K | 50,000hours |
| MDL-20-C55 | 20 | 2400 | 86~264V | Citizen COB | D130*H152 | 20°/45° | Lifud | Aluminum | >0.95 | ≥80/90/97Ra | 2700/3000/4000/5000K | 50,000hours |
| MDL-30-C55 | 30 | 3600 | 86~264V | Citizen COB | D170*H185 | 20°/45° | Lifud | Aluminum | >0.95 | ≥80/90/97Ra | 2700/3000/4000/5000K | 50,000hours |
| MDL-40-C55 | 40 | 4800 | 86~264V | Citizen COB | D193*H193 | 20°/45° | Lifud | Aluminum | >0.95 | ≥80/90/97Ra | 2700/3000/4000/5000K | 50,000hours |
Features :
- Class 2
- Power 40W
- IP20 rated, suitable for use outside Zone 3
- Dimmable Type :0-10V/DALI/Triac
- Astro plaster and ceramic lights can be painted using a good quality emulsion paint
- Height 170mm ƒ- Diameter 185mm
Our ceiling mounted downlight are produced using the finest quality materials that are built to last and Australian,England tested - our continuously growing support of customers will reassure this statement.
Our LED downlights can be used for a variety of applications, including public Utilities, commercial and hospitality environments and other special applying .
1.High heat sink part ensure optimal cooling effect and lighting effect,small dimension provide high lumen output;
2.Remarkable energy-saving; SDMC less than 3 , keep the consistant of the bulbs color .
3.Aluminum alloy shell,ensure product high-end,gorgeous,beautiful design;
4.Power supply and lamp body are designed separately to ensure lifetime of power supply and LEDs better;
5.Metallic luster reflection up,high lighting effect and uniform light output;
6.Can realize 0-10V dimming or TRIAC dimming or DALI ea

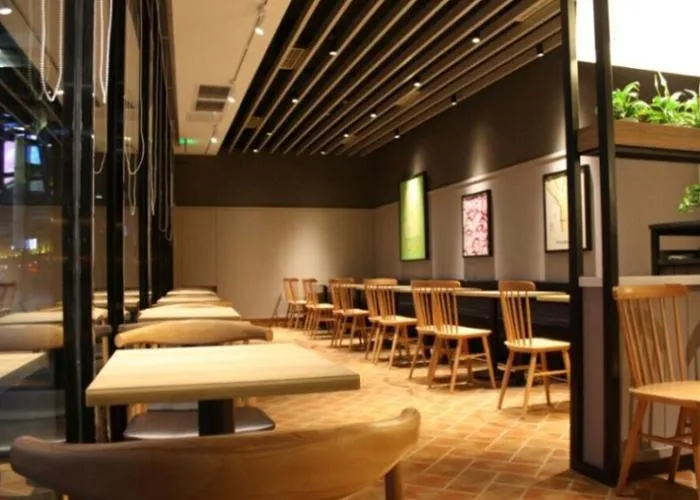

Applying
Especially good for applying on the common space , which with higher roof , and need enough birghtness on floor .
- Hotel
- Retail
- Schools
- Shopping malls
- Show room
- Residential
- Public facilities
Warrenty
* all commercial lights for 5yrs warrenty .
