Product Description

Features:
1. Energy efficient and eco-friendly with LED light source;
2. High color rendering, high lumen output, soft light;
3. Long lifespan, less maintenance;
4. Easy installation.

Slim LED Downlight Specifications:

Item No.	Power	Flux	Dimenssions (mm)	Cut Size (mm)	Carton Sizes (cm)	PCS/ CTN
BN-LBTD3W -25A/B	3 W	170LM	Ф90x32	Ф80	56x24x40	50
BN-LBTD5W -30A/B	5 W	320LM	Ф108x32	Ф95	59.5x25x39	50
BN-LBTD7W -35A/B	6 W	440LM	Ф120x32	Ф105	65.5x28x40	50
BN-LBTD8W -40A/B	7 W	550LM	Ф138x32	Ф115	76x31x25	30
BN-LBTD12W -50A/B	10 W	780LM	Ф158x32	Ф135	81x21.5x40	20
BN-LBTD14W -60A/B	14 W	1060LM	Ф180x32	Ф165	81x22x40	20
BN-LBTD17W -80A/B	16 W	1400LM	Ф232x32	Ф205	78x27x40	15

Detailed discriptions:
Item No.: BN-LBTD12W-50A
Material: Aluminium, PMMA
Rated Power: 10W
Dimensions: Φ158x32mm
Cut Size: Φ135mm
Input Voltage: 100-120Vac; 200-240Vac
Flux: 780lm
Color Temperature: 3000/4000/5000/6000K
CRI: >80
Beam Angle: 120°
IP Rating: IP20
Driver: Constant Current; External
Finish: A-White; B-Silver
Carton Size: 81x21.5x40cm/20PCS
Installation: Recessed
Applicaton: Restaurant, Office, Supermarket, Complex, Store, Bank, Hotel, Hospital, etc.
Lifespan: 30,000 hours
Warranty: 3 years

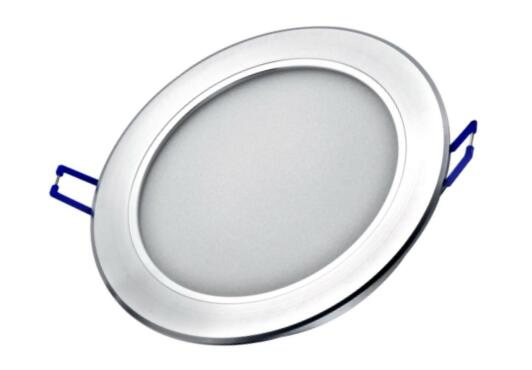

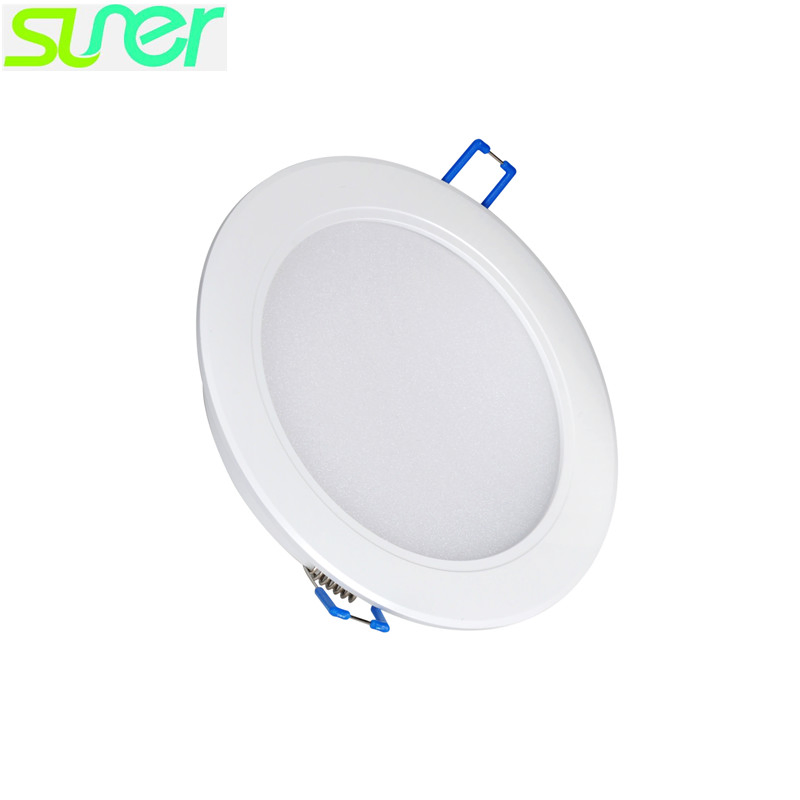

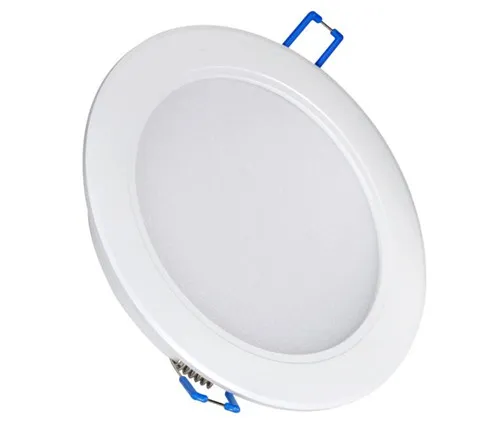

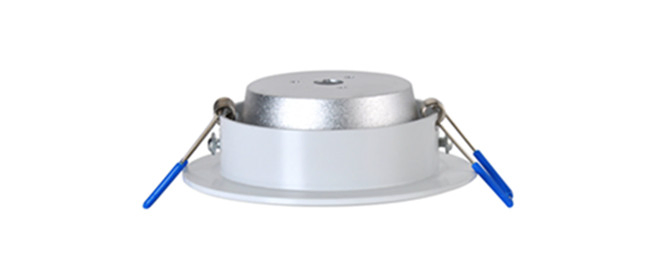

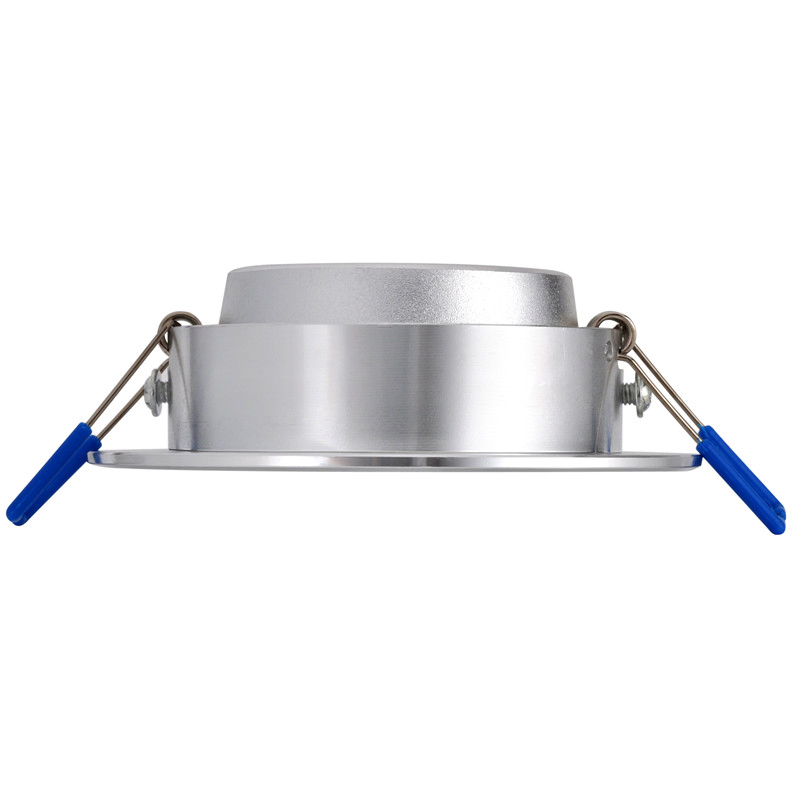

Recessed LED Ceiling Light Slim Aluminum Downlight 5 Inch 10W 5000K

Recessed LED Ceiling Light Slim Aluminum Downlight 5 Inch 10W 5000K

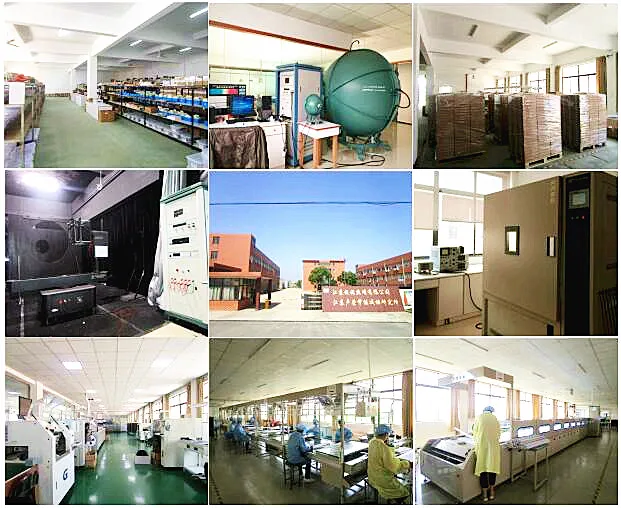

SHINUO LIGHTING Company Profile:
History: Established in 1998.
Products: LED Indoor & Outdoor Lighting.
Certificates: ISO9001, ISO14001, ISO45001, CCC, CQC, CE, FCC.
