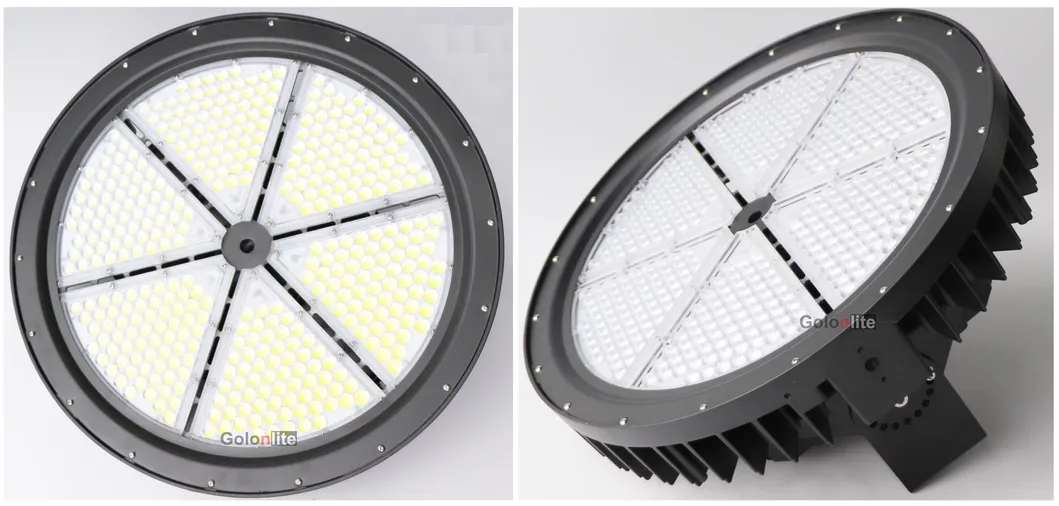

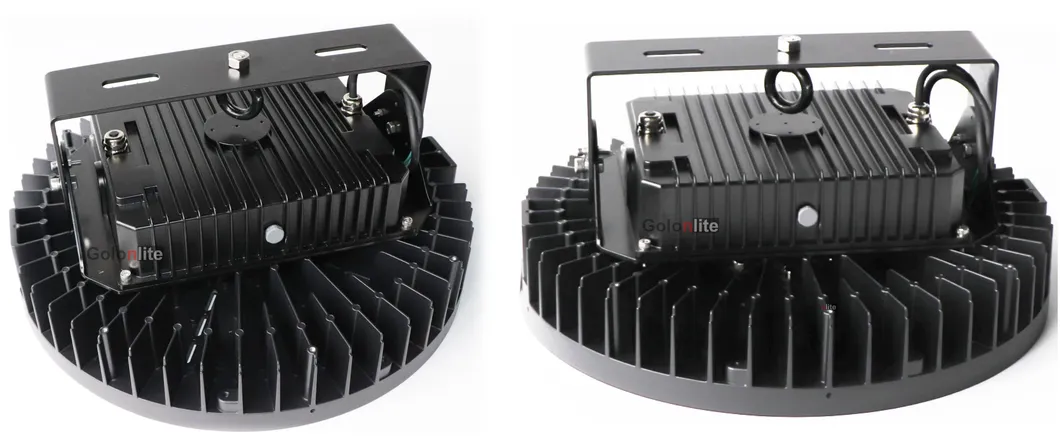

150lm/W Casting Aluminum IP66 Waterproof 500W 600W UFO LED High Bay Light
Casting Aluminum IP66 Waterproof 500W 600W UFO LED High Bay LightHigh power LED high bay light Specifications:Product description: 130-160Lm/W UFO LED high bay lightItem no.: GL-FR-600W/500W/400W/300W Light Luminous Efficiency150Lm/WCCT(K)3000K / 4000K / 5000K / 5700K / 6500KCRI> Ra80/70Power S......
Send Inquiry
Product Description
High power LED high bay light Specifications:
| Product description: 130-160Lm/W UFO LED high bay light | ||
Item no.: | GL-FR-600W/500W/400W/300W | |
Light | ||
| Luminous Efficiency | 150Lm/W | |
| CCT(K) | 3000K / 4000K / 5000K / 5700K / 6500K | |
| CRI | > Ra80/70 | |
| Power Supply | Meanwell HBG / Sosen Driver | |
| Lifespan (Hrs) | > 50,000Hours | |
Electricity | Input Voltage(V) | 100-277VAC 347VAC 480VAC 50/60Hz |
| Dimming function | Three in one(0-10V,PWM,Resistance), Dali dimmable | |
| Power Consumption(W) | 600W/500W 400W /300W 240W/200W/160W/100W/60W ±2W | |
| Sensor control | Microwave / Photocell sensor | |
| Beam angle | 20° / 30° / 40°/ 60° / 90° | |
| Replacement | Metal Halide / HPS / HID / Halogen lamps | |
Structure | Materials | Casting Aluminum housing + PC lens |
| Base(Standard Design) | 3 cores outlet +US/EU/US/AU plug | |
| Protection Grade | IP66 waterproof | |
| Certificate | CE RoHS 5 years warranty | |
High power LED high bay light Product features:
Three in one dimming function (0~10Vdc or PWM signal or resistance); Dali dimmable
Microwave sensor / Day light/Photocell sensor option
Die casting aluminum housing for the best heat sink solution
Super bright: 150Lm/W high lumens efficiency; the best energy saving;
Meanwell / Inventronics / Sosen driver, offer 5 years warranty, remarkable performance, top quality;
IP66 waterproof for indoor / outdoor application
Ring/Hook haning; Wall/ ceiling surface bracket mouting;
IES files, Free Dialux lighting study.
Fair price, fast delivery, LED lights factory since 2010.

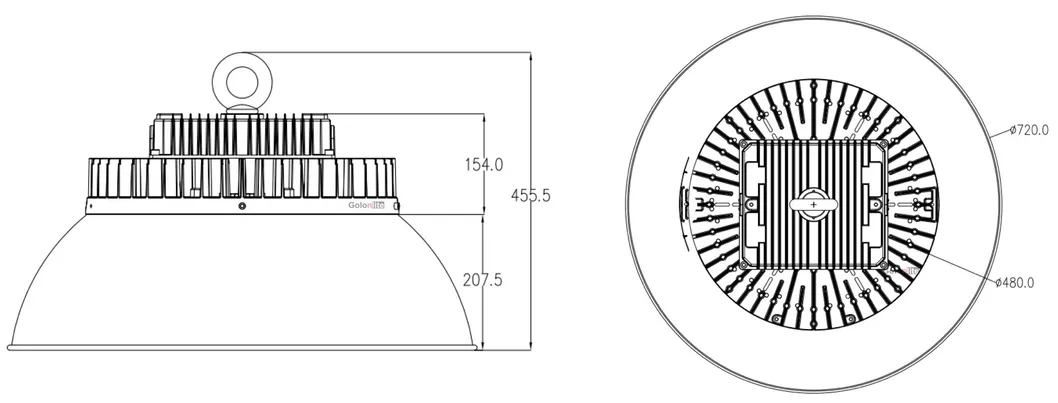

High power LED high bay light dimensions:

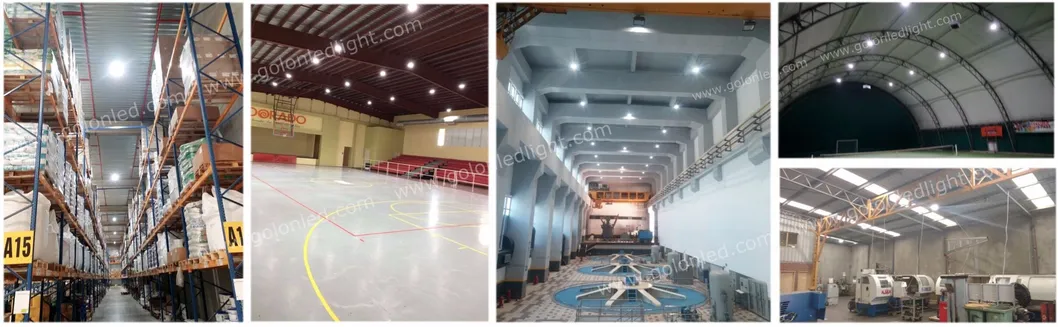

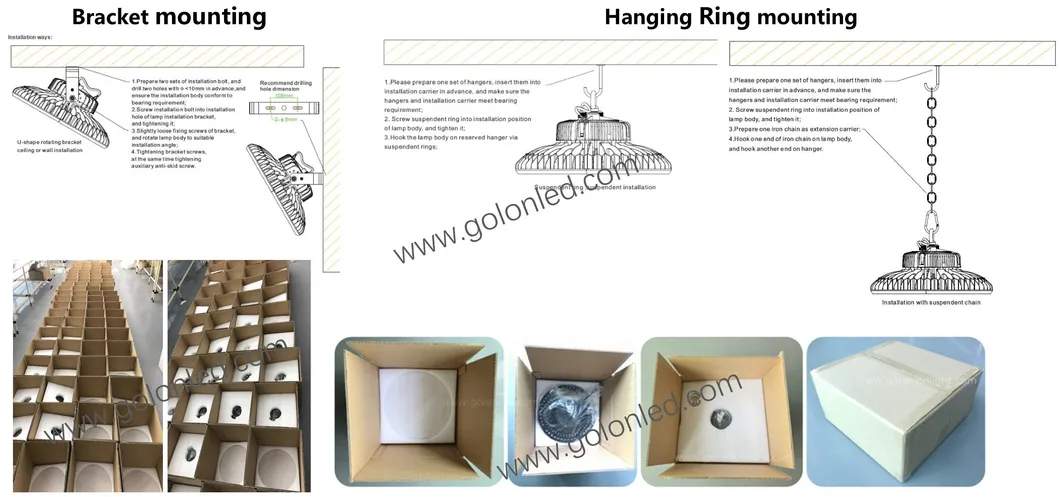

LED high bay light installations:
UFO IP65 LED high bay light indoor & outdoor Application:
Widely used in shopping mall, exhibition hall, parking lot, playground,
gymnasium, billboards, park, sculpture, national green lighting project,
building facade and public corridor, stair corridor and other indoor and outdoor lighting
GOLON 150Lm/W High power LED high bay light Package:
1pc/carton
| Model | Power | Lumens (Lm) | Replacement | Lamp size (mm) | N.W/pc (Kg) | G.W/CTN (Kg) | CTN size(cm) |
| GL-FR-600W | 600W | 90000 | 1500-2000W | Φ480*210mm | 17.1 | 18.9 | 54*54*31 |
| GL-FR-500W | 500W | 75000 | 1000-2000W | Φ480*210mm | 16.56 | 14.76 | 54*54*31 |
| GL-FR-400W | 400W | 60000 | 1000-1500W | Φ480*210mm | 16.35 | 14.55 | 54*54*31 |
| GL-FR-300W | 300W | 45000 | 500-1500W | Φ480*210mm | 15.13 | 13.33 | 54*54*31 |

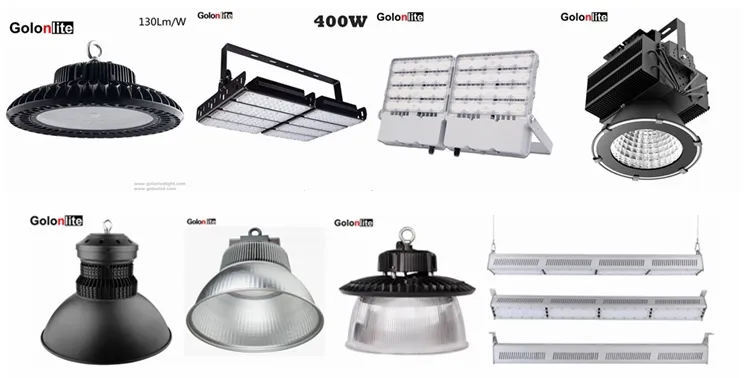

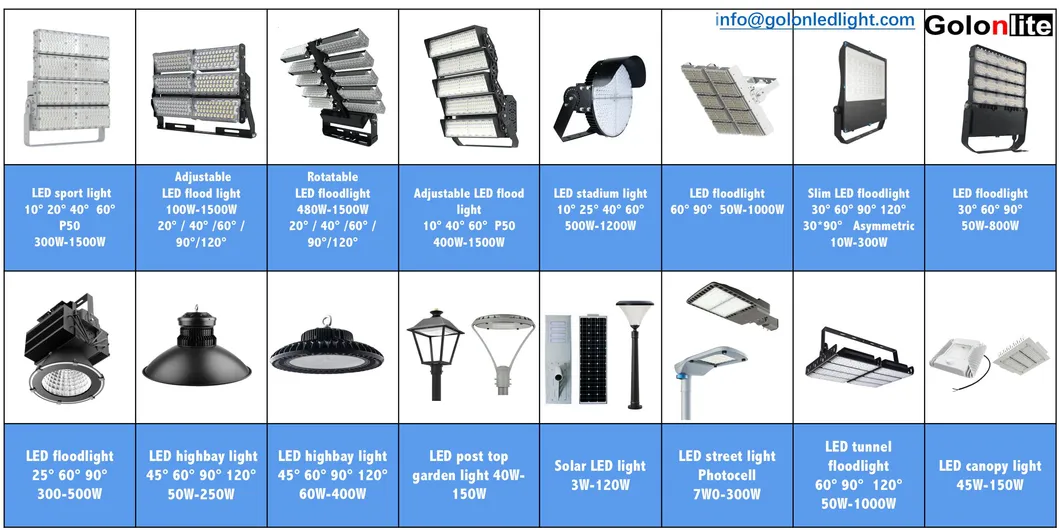

GOLON More LED high bay light series:
Experienced LED lights manufacturer since 2010 offers LED lighting solutions
New produced LED lights, fast delivery
Dialux lighting study available
Golonlite is a technology oriented enperprise in Shenzhen, integrating the research, development, design and production of industrial / Commercial LED light fixtures. . We have our own brand Golonlite registered in Shenzhen. With 9 years experirnece of production, engineering and world trades, we understand the importance of price, quality and design,so we do our own procutions, engineerings and reseach into full consideration. Our main prouduct lines include LED flood lights, LED high bay lights, LED canopy lights, LED street lights, high mast LED stadium light, solar LED street lights, tennis court lighting solutions,exterior led spotlight, LED PL lamp bulbs.
We are well-known in the LED industry with our advanced technology, scientific management, excellent quality and the first-class services.
1. Any inquiries, will be replied in 24hrs.
2. All your inquiries will be well explained by our experienced staff.
3. All after sale problems will be deal with in 24hrs.
4. OEM, ODM welcomed.
5. Distributorship is available for your unique design and some our current models.
6. We will keep secret for customer sale area,design ideas and all other private information.
7. Offer 5 years warranty.
8. Lighting design for free --- Provide IES file, Dialux lighting design & solution.
Golon Manufacturing Co. Ltd.
Unit price is negotiable, any need of LED high bay light 600W 500W 400W 300W 240W 200W 160W 150W 100W option. Just contact with us, will reply in 24hrs.
