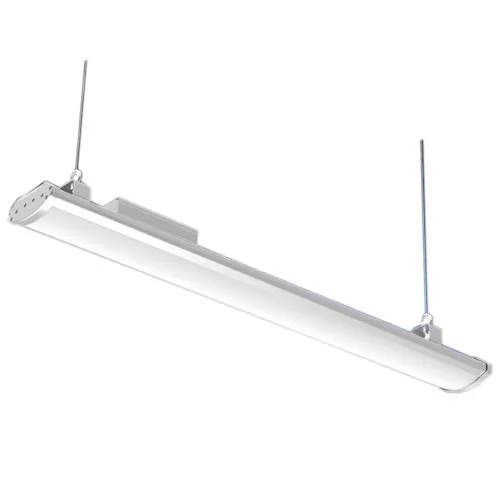

                                      2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB- LHB -120W)
                                      • 2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB- LHB -120W)2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB- LHB -120W)
                                      • 2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB- LHB -120W)2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB- LHB -120W)
                                      • 2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB- LHB -120W)2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB- LHB -120W)
                                      • 2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB- LHB -120W)2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB- LHB -120W)

                                      2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB- LHB -120W)

                                      2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting(RB-LHB-120W)Product Specifications:Linear LED High Bay Light/Industrial High Bay LED Lighting (80W-200W)120W Linear LED High bay Light Technical ParametersItem No.:RB-LHB-120WInput Voltage:AC100-277VFreqency Range:50Hz~60HzLed Chip:Lumiled......

                                      Send Inquiry

                                      Product Description

                                      2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting(RB-LHB-120W)


                                      Product Specifications:
                                      Linear LED High Bay Light/Industrial High Bay LED Lighting (80W-200W)
                                      120W Linear LED High bay Light Technical Parameters
                                      Item No.:RB-LHB-120W
                                      Input Voltage:AC100-277V
                                      Freqency Range:50Hz~60Hz
                                      Led Chip:Lumileds
                                      Power Factor:>0.97
                                      Power Efficiency:>90%
                                      LED Power120W
                                      LED QTY: 336pcs
                                      LED Working Voltage:DC 30~36V
                                      System Consumption:126 W
                                      LED Luminous FluxWarm White13000LM
                                      Pure White15000LM
                                      Cool White15600LM
                                      Viewing Angle:30/60/90/120/70*140Degree
                                      Center IlluminanceHeight 3M422LUX
                                      Height 4M237LUX
                                      Height 5M152LUX
                                      Illuminance AreaHeight 3MDia.9.6 M  points visible
                                      Height 4MDia.12.8M points visible
                                      Height 5MDia.16.1 M points visible
                                      Illuminance Uniformity:>0.6
                                      Color TemperatureWarm White2700K~3500K
                                      Pure White4000K~5500K
                                      Cool White6000K~7000K
                                      Color Rendering IndexRa>78
                                      Light Distribution:LED points visible
                                      LED Junction Temperature:≤115ºC
                                      Working Temperature:-40ºC~50ºC
                                      IP Grade:IP65
                                      Working Life-span:50000 H
                                      Power Line:1.0 mm three line
                                      Connect WireBrownL
                                      BlueN
                                      Yellow / GreenG

                                      2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB-LHB-120W)

                                      Linear LED High bay Lamp Features:
                                      1.IP65, water-proof, dust-proof, moisture-proof.
                                      2.120-130 LM/W .
                                      3.HLG Meanwell dirver with high power factor, flicker free instant re-strike
                                      4.No flicker or buzz
                                      5.4m to 12m application
                                      6. IP65 waterproof, dust-proof, corrossion proof.
                                      7. Profiled aluminum housing and screw locked ends
                                      8. Tempered frosted PC lens, low dazzling
                                      9. Gas-tight silicon rubber seal made for wet locations
                                      10. Aircraft-grade 6063 aluminum housing, quick heat sink and durable.
                                      11. Excellent vibration & shock resistance
                                      12. Environment-friendly, no air pollution, no lead-free, no-mercury.
                                      13. Versatile, trouble-free installation: linkable, rotating, suspended, ceiling.
                                      14. CE,RoHS,VDE approved
                                      15. Apply for unique surface treatment technology, welldecorated, novel style, easy to install, lower maintenance cost and wide in application.



                                      Linear LED High Bay lamp Competitive Advantage :
                                      1. CE & RoHS & TUV&SAA approved, Quality Guaranteed
                                      2. Imported original Samsung ,OSRAM led chip, superior light source
                                      3. OEM & ODM welcome, independent R&D ability, patent design.
                                      4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed
                                      5. Reliable quality & credit, 5 years warranty and 50.000 hours lifespan

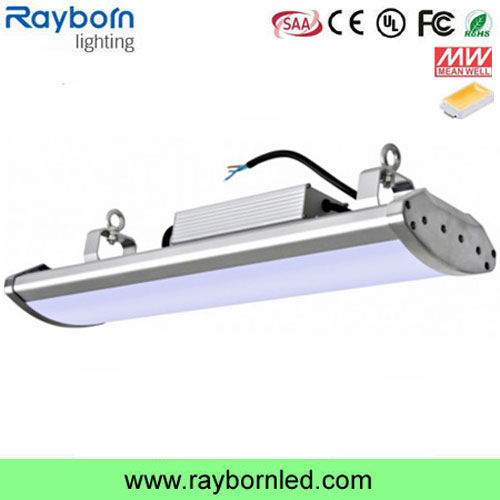

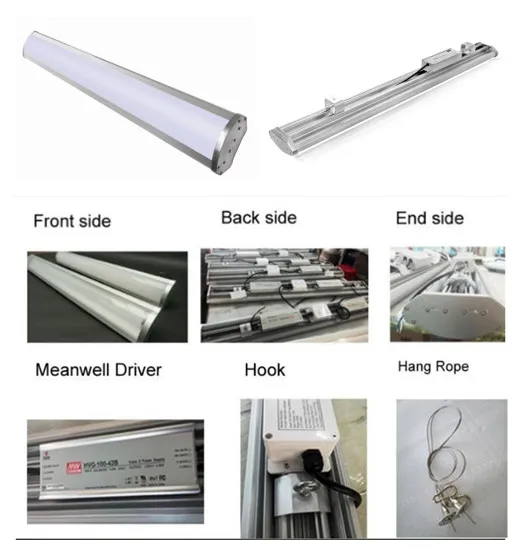

                                      Linear LED High bay light details :

                                      2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB-LHB-120W)

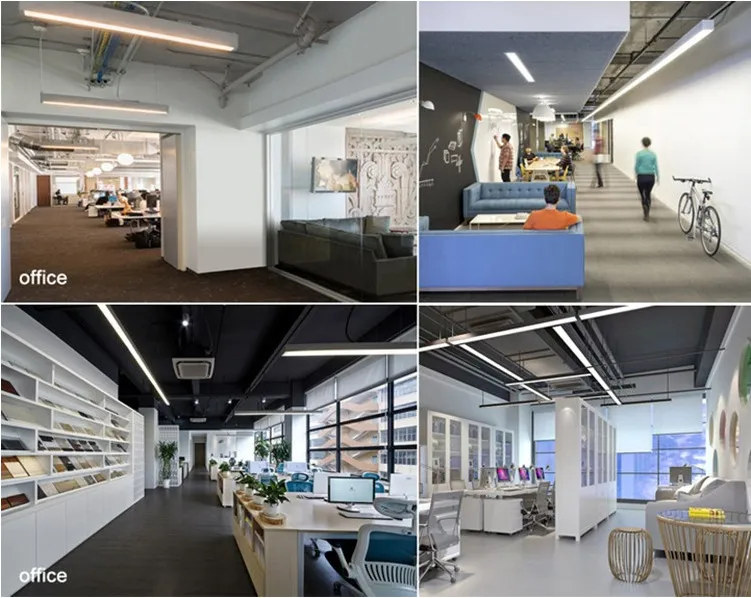

                                      Linear LED High bay light Application:
                                      1. Workshop and factory lighting.
                                      2. Goods shelf or corridor lighting.
                                      3. Museum, supermarket ,exhibition hall ,stadium and gymnasium lighting.
                                      4. Highway toll station ,Parking lot ,and gas station lighting.
                                      5. Building and smeltery lighting.
                                      2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB-LHB-120W)

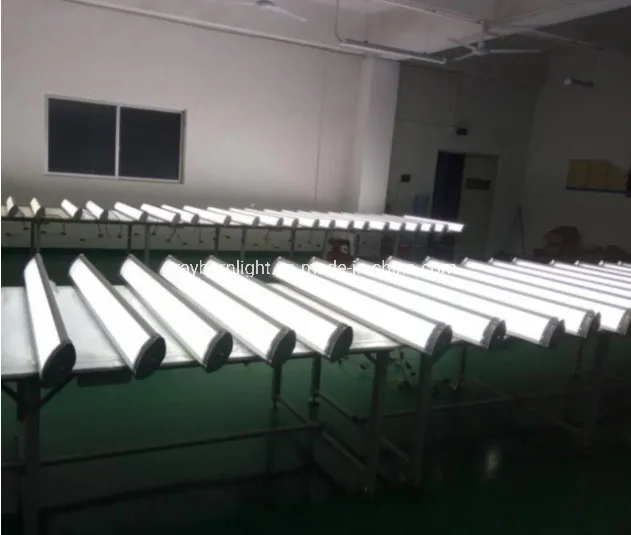

                                      Linear LED High bay light more than 24hours aging test :
                                      All LED lights will be over 24 hours aging tested, inspection department
                                      will test 100% products including light up test , power wattage test ,
                                      highVoltage test , waterproof test , ground connection test and so on,
                                      defective rate is controlled  less than 0.1%. Quality is ensured, you can
                                      be assured.
                                      2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB-LHB-120W)

                                      2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB-LHB-120W)

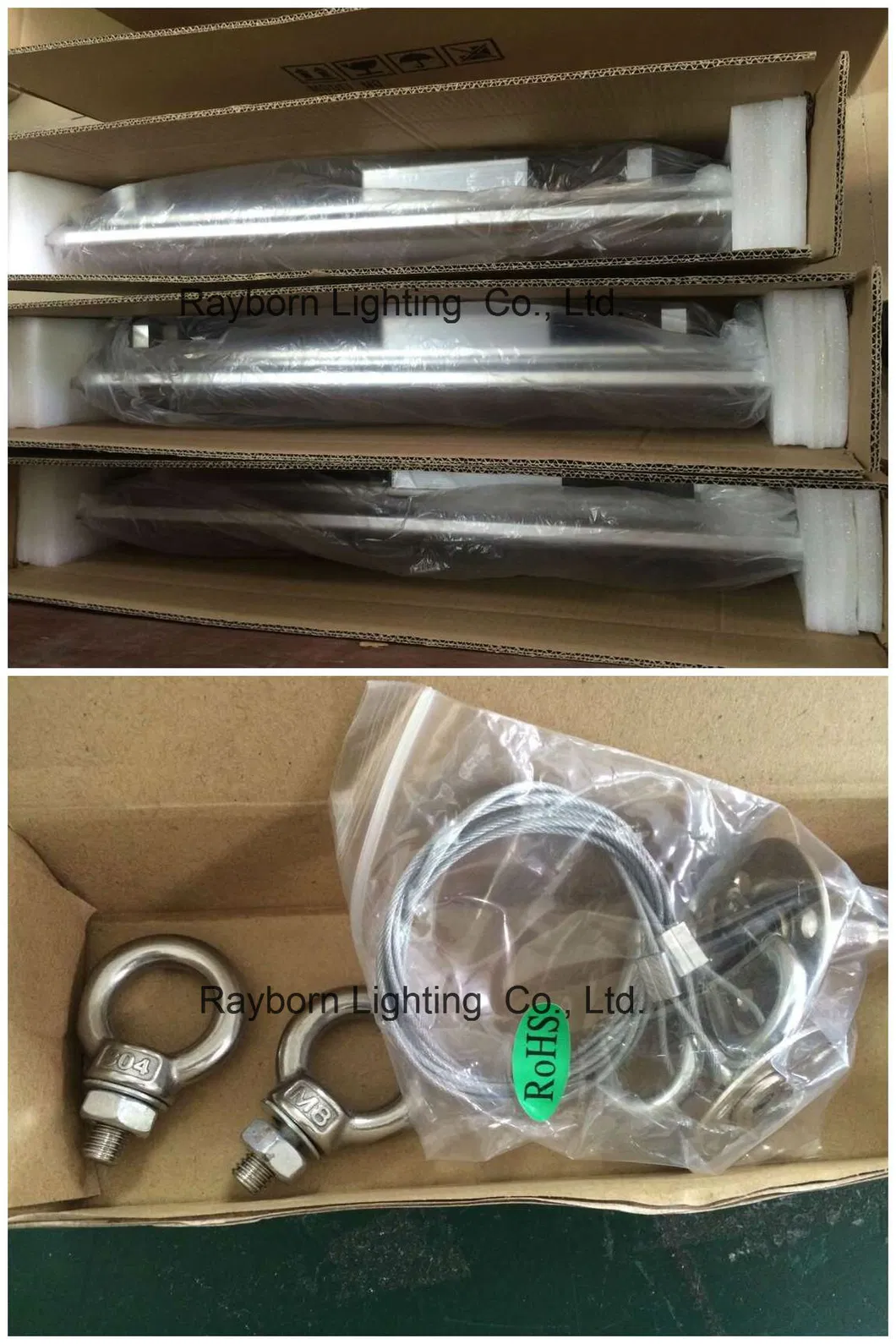

                                      Linear High bay led light Shipping & Package :

                                      Our individual package maximize protecting the LED lights from transfer damage in transit.
                                      1. Label on backside of each LED lights and your required label is available.
                                      2. One piece led Light per carton , strong and professional package for safety transportation .
                                      3. Clear label Item show what is product in the cartons, including watts, CCT, quantity,etc.

                                      We can also custom color packing and put customer logo on it.
                                      2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB-LHB-120W)

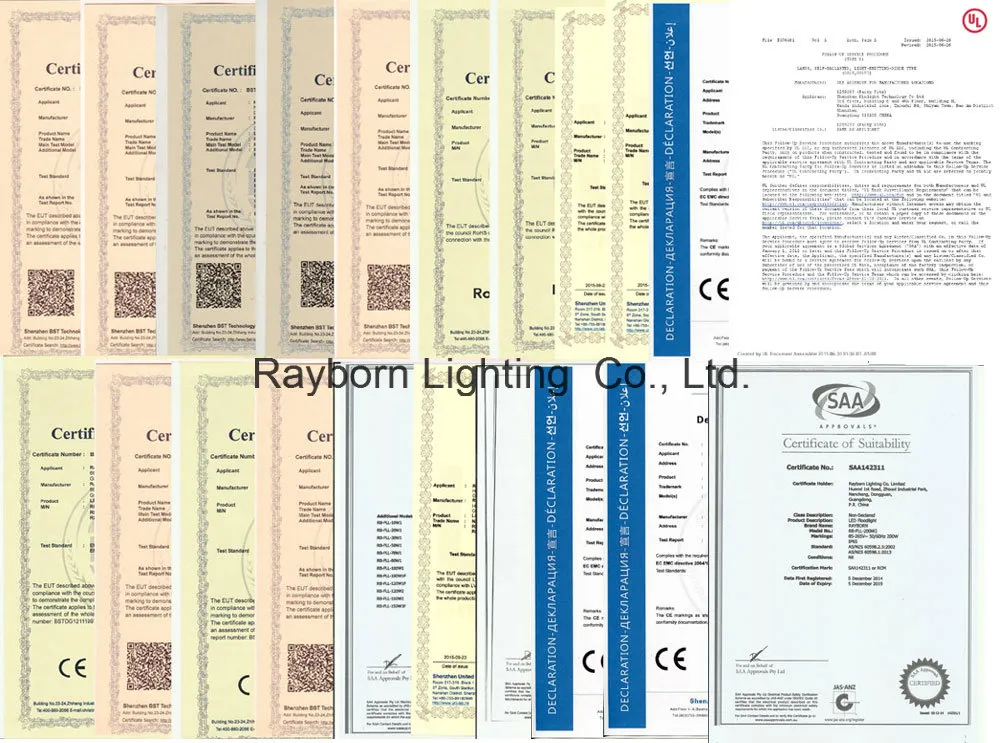

                                      CE/RoHS/SAA Certification:

                                       Rayborn Lighting Co.,Ltd is a professional manufacturer ,focus on Industrial LED lights and commerical LED lights research ,devolopment ,production,sales ,on service,was in High-end operation and service provider in High-power led .Under the country "saving "polics,we are striving to create environment protection ,energy saving ,long life lighting and earned a reputation of being a quality supplier of LED lighting .

                                       We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.

                                      2FT 3FT 4FT 5FT Office Suspended Pendant LED Linear Lighting (RB-LHB-120W)


                                      Payment terms :
                                      1. Payment: T/T, L/C at sight, Western Union ,Paypal available
                                      2. Samples can be available within 5-7 working days; Order: 10-20Days
                                      3. Shipping freight is quoted under your requests
                                      4. Shipping port:Shenzhen , China
                                      5. Discounts are offered based on order quantities



                                      Our Services :

                                           As a big led manufacturer with years of experiences,we Rayborn led lghting would very like to be your reliable lighting specialist. We ensure that:

                                      1.Offering you the lowest price with good quality led lights.
                                      2.Delivery the goods to you with speed and precision wherever you are.
                                      3.Reply your inquiry and request in 8 hours during workdays.
                                      4.Keep on researching and developing news prodcuts to satisfy your various needs.



                                      FAQ
                                      1. What is the general business process?
                                      Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service

                                      2. What is the warranty?
                                      Answer : 5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.

                                      3. What is the payment term?
                                      Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable

                                      4. Can I add my logo on the product label?
                                      Answer : Yes, but order quantity is requested depending on different lights.

                                      5. I don't know how many Linear Led High bay Light should I use, can you advise?
                                      Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.

                                      6. Do you have any MOQ limit for led light order?
                                      Answer: Low MOQ, 1pc for sample checking is available .

                                      7. How do you ship the goods and how long does it take to arrive?
                                      Answer: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

                                      8. How to proceed an order for led light?
                                      Answer : Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order.
                                      Fourthly We arrange the production.


                                      9. How to deal with the faulty ?
                                      Answer : Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
                                      Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
                                      defective batch products, we will send out new replacement to you immediately for you to solve the problem.
