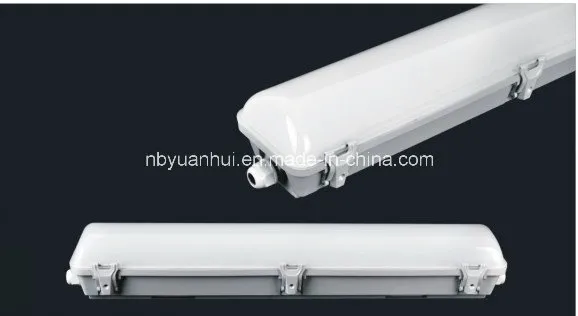

5 Foot Residential Plastic Housing and Diffuser LED Tri-Proof Lamp

Product Description

IP66 LED Module Waterproof Luminaire
5 Foot Residential Plastic Housing and Diffuser LED Tri-Proof Lamp

Product Description:

Input: AC 100-270V, 50-60HZ

Driver: OSRAM, Meanwell or other options

Reflector: MCPCB or High temperature resistant PCB for your option

Body and diffuser could meet the IK08, and 850 degree glow wire test requirement

Perfect replacement for the whole set of T8 fluorescent Luminaire.

Save uo to 60% in electricity consumption compared to fluorescent lighting fixture

Lifetime:50000hrs, Warranty: 5 years

It could be with sensor (turn on/off sensor, dim sensor), emergency kit.

suitabel for supermarket, underground parking, warehouse, function well in waterproof and dustproof, suitable for outdoor and wet location lighting application

Techinical Parameters:

Model No	LMF12-600	LMF24-600	LMF24-1160	LMF36-1160	LMF48-1160	LMF34-1560	LMF54-1560	LMF70-1560
Power (w)	12w	24w	24w	36w	48w	34w	54w	70w
Product Size	600120108mm		1160120108mm			1560120108mm
Efficiency (lm/w) opal len	100lm/w
CCT (K)	2700-6500K
Certificates	CE-LVD, EMC, ROHS, GS, ENEC, CB, SAA, C-TICK, UL, CUL, DLC
LED chips	SAMSUNG or EVERLIGHT
LED driver	OSRAM or MEANWELL
CRI	>83
Bean Angel	120 degree
Operating Ambient temperature	-20~40ºC
Operating Humidity	10-90%
Warranty	5 years
IP	IP66
IK	IK08
Glow Wire Test	Pass 850ºC
Material	Polycarbonate Material
