Product Description

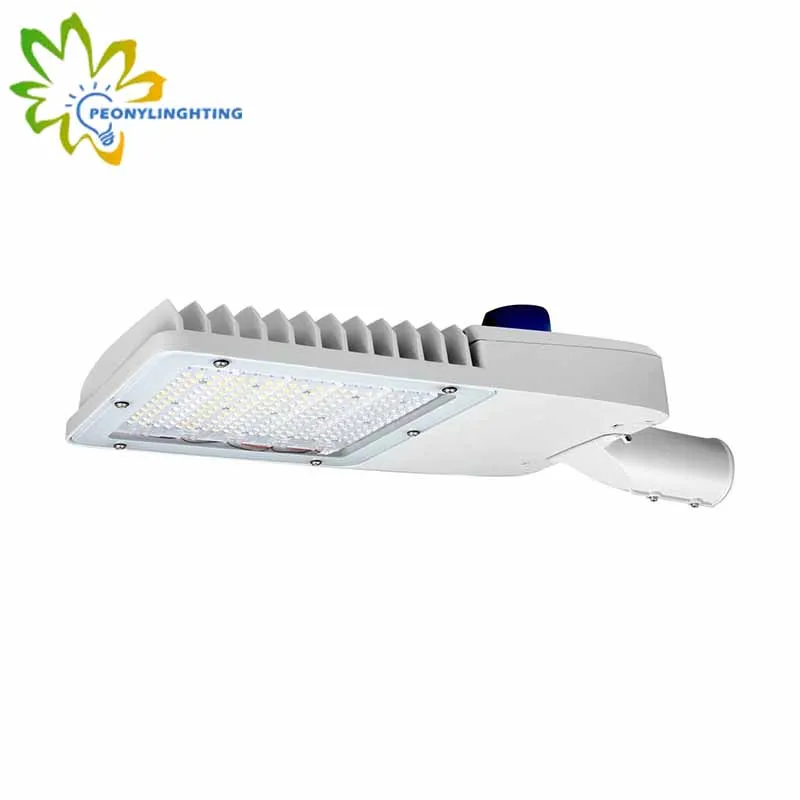

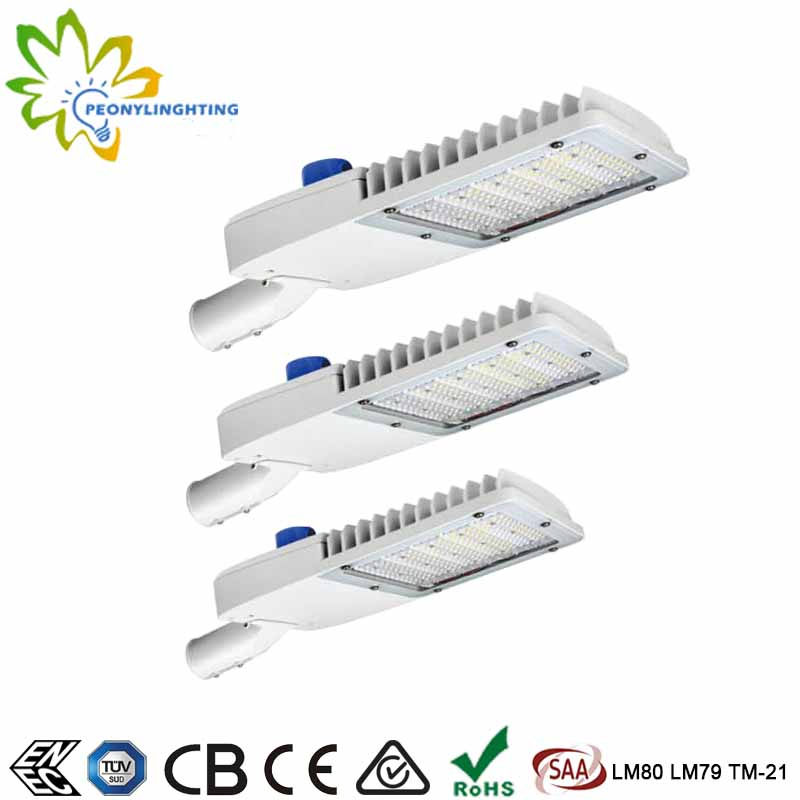

Super bright 150lm/W ENEC CB CE IK10 IP66 LM79 LM80 30W to 300W watt led street light
Key Features
1).Adopting high-power 3030smd as light source. Energy-saving, environment protecting and long life.
2). 5mm toughened transparent glass/lens , high temperature resisting, easy for lights penetration, transmittance as hight as 92%.
3).The radiator adopts Aluminium alloy with high thermal coefficient, Lamp surface adopts oxidation technology, corrosion-resistance and ensure the radiating.
4).Constant current supply, good stabilize and high security.
5).Energy sawing up to 80%.
6).Good-Looking shape, easy installation

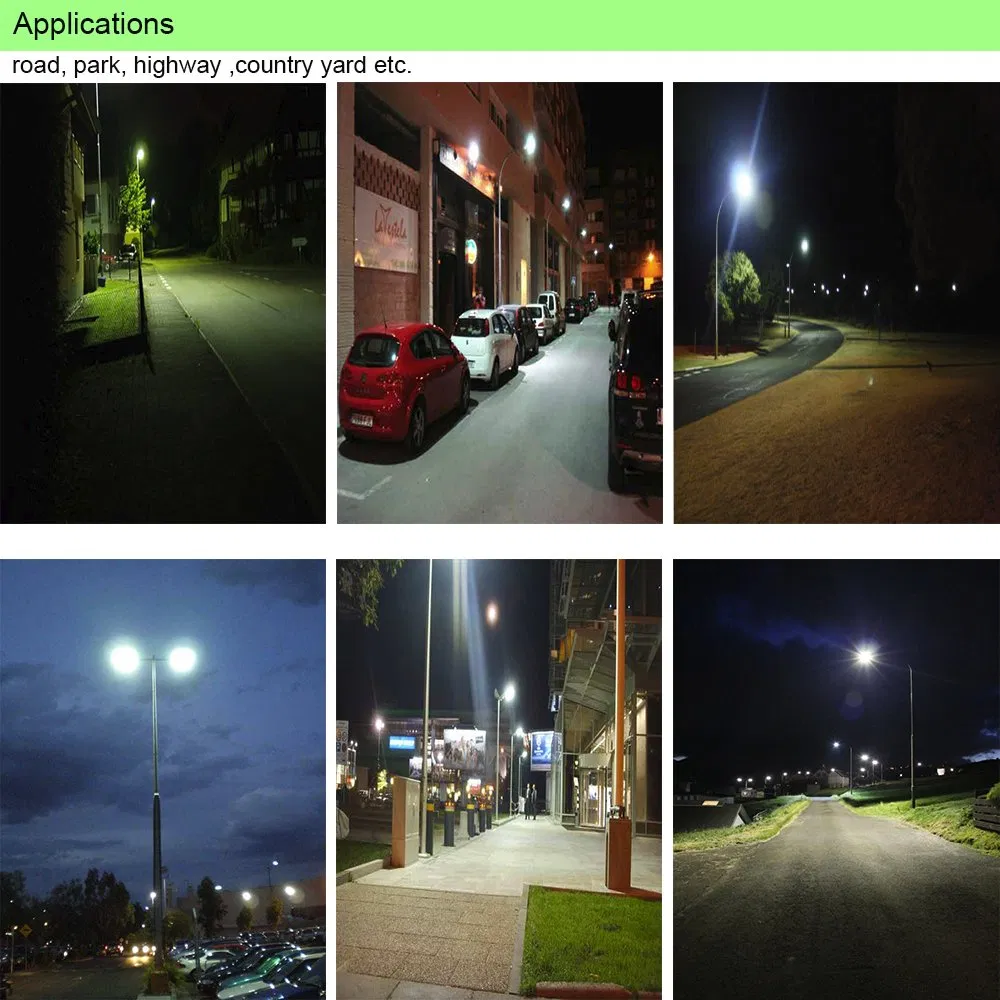

7).Applicable for the expressway, road in down town, over bridge, port, factory lighting and so on..
8).Lampshade material: Die cast aluminum housing, Toughened safety glass, painting coating.
9).The metal part which is between pole and street light is designed as original pole size.
Datesheet
| LED Street light Specifications | |||

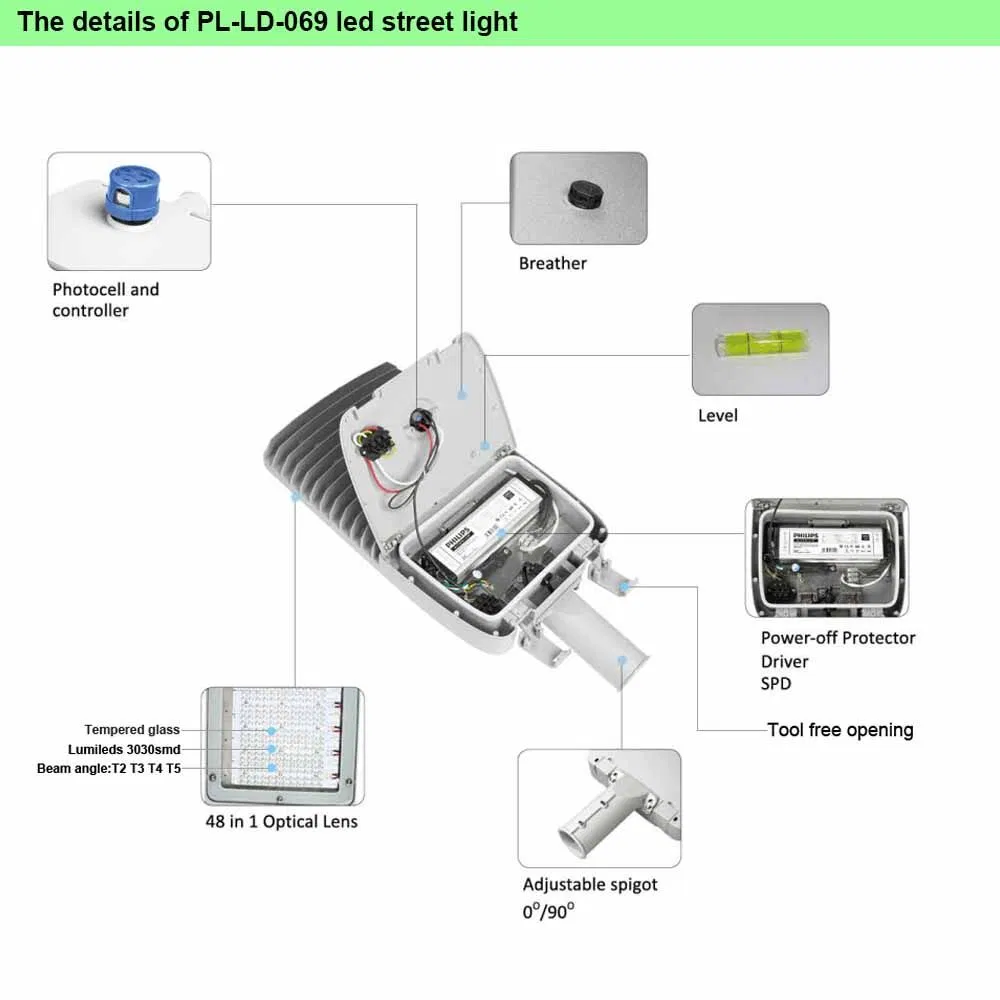

| Model | PL-LD-069 | PL-LD-069 | PL-LD-069 |
| Input Voltage | 100-305 V AC | ||
| Power | 30W 40W 50W 60W 70W 80W 90W 100w 120W | 150W 180W 200W | 240W 300W |

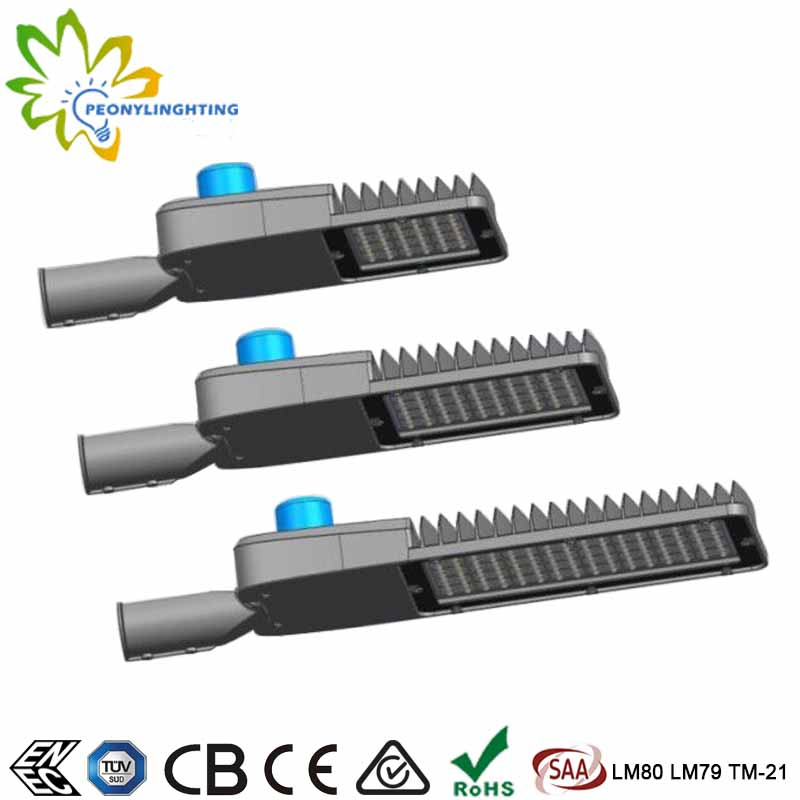

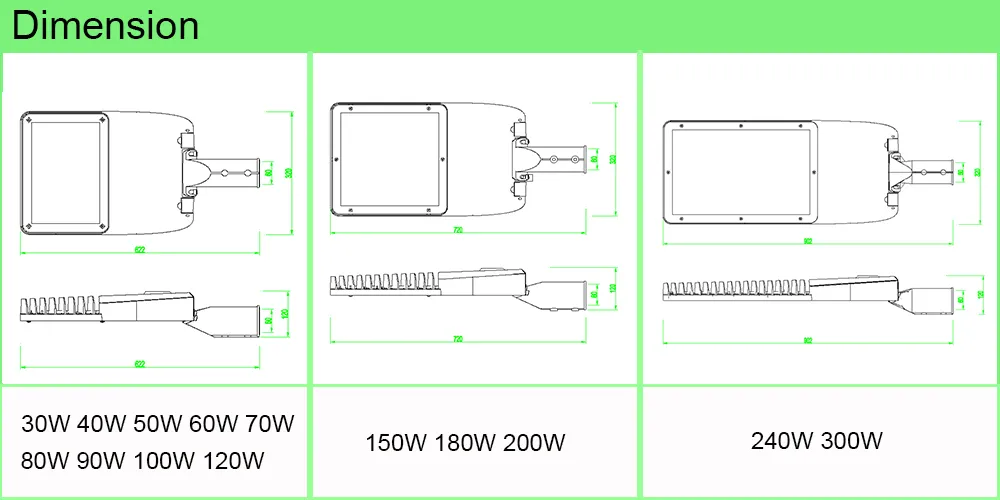

| Size(mm) | 622*320*119mm | 720*320*119mm | 902*320*119mm |
| LED chip | Lumileds 3030SMD | ||
| CRI | Ra>70/80 | ||
| Power Factor | >0.95 | ||
| Light efficiency | 145LM/W±5% | ||

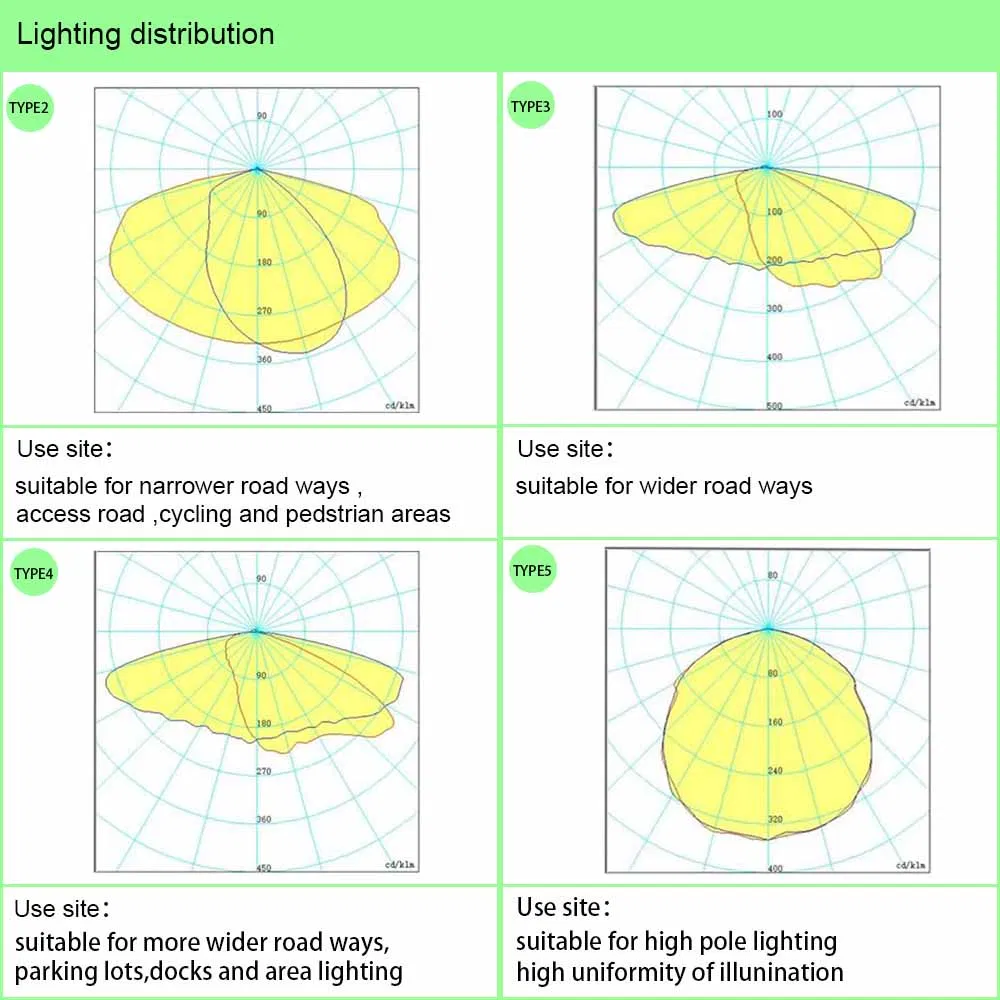

| Beam angle | T2 T3 T4 T5 | ||
| LED driver brand | SOSEN, Meanwell driver ELG/HLG series | ||
| Surge protection | 6KV/10KV/20KV as customers' rerquirement | ||
| Waterproof and IK | IP66 IK10 | ||
| Housing material | Die-cast Aluminum +Steel glass | ||
| Storage temperature | -40ºC~85ºC 10%~90% H.R | ||
| Work temperature | -40ºC~50ºC 20%~90% H.R | ||
| Lifespan | 100000 hours | ||
| Options | Photocell ,PWM /DALI/1-10V/Timing/Daylight sensor/Nema 7 Pin socket | ||
| Certificates | CE ROHS SAA CB ENEC IK10 IP66 LM80 LM79 TM21 | ||
| warranty | 5 -8years | ||

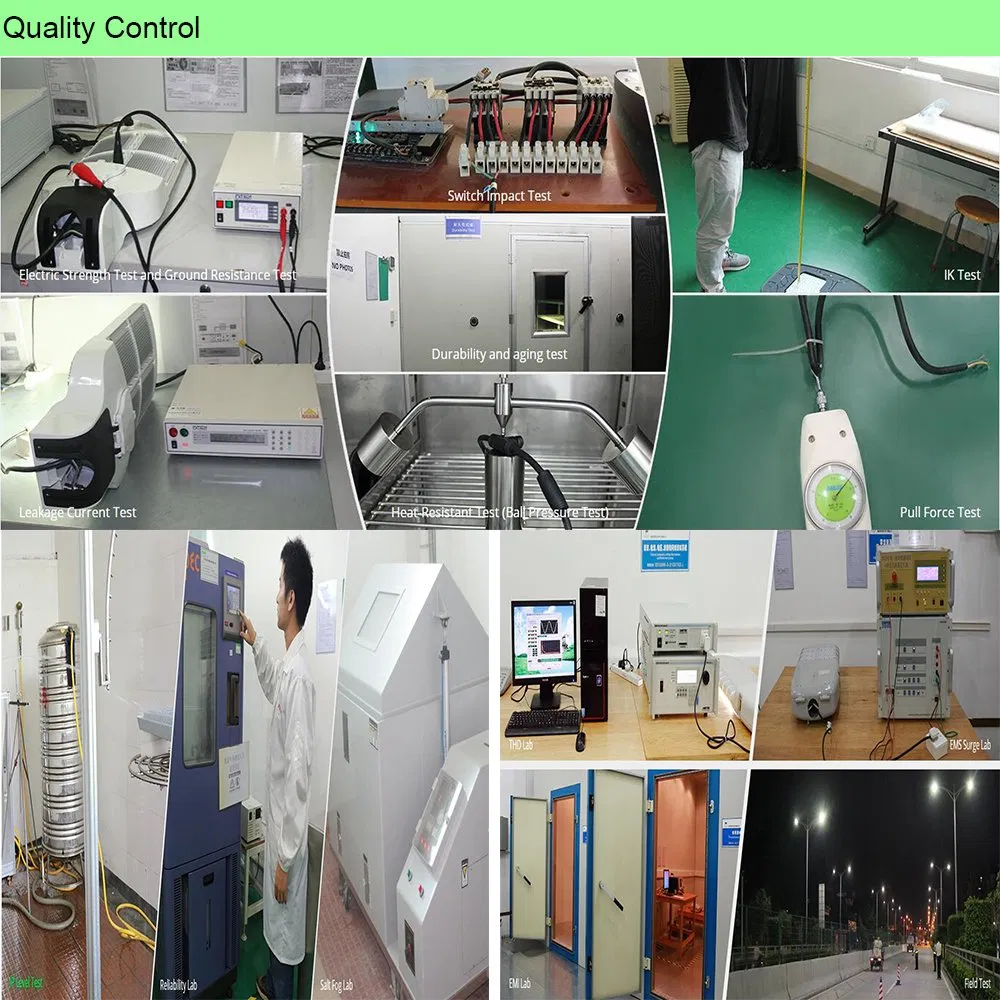

Peonylighting has won the trust and respect of many clients from both domestic and oversea. We strictly manage the quality control through ISO9001:2015 quality management system. Our products have passed the certificates of TUV ENEC CB CE ROHS SAA IP65 IK08 LM79 TM-21 and atex and so on .which is the guarantee of high-quality products. Currently, our products have been widely used in many fields like street and highway and path park lighting, landscape, commercial lighting and industrial lighting and on .peonylighting luminaires were applied successfully in thousands of projects worldwide, such as warehouse, factories, parking lot, hospital, school, office, football field, tennis court and supermarket.
With its developing policy of "integrity to develop new markets, high-quality to consolidate the market, technology lead the market" and its goal of" LED green lighting, energy-saving, low-carbon and environmental-friendly" , Peonylighting wishes to cooperate with you in a Win-Win relationship.
Q: Whether the LED lights really have 50,000 hours lifespan?
A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from
in lab,actual lifespan is only <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.
Q: For same power,why different suppliers with different brightness?
A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip
and same brightness version,the brightness will be slight difference.But please make clear the brightness difference
between LEDs and lamp fixture.
Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized
in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,
while a cooler (higher color temperature) light is used to enhance concentration in offices.
Q: What is CRI?
A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.
Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
