Product Description

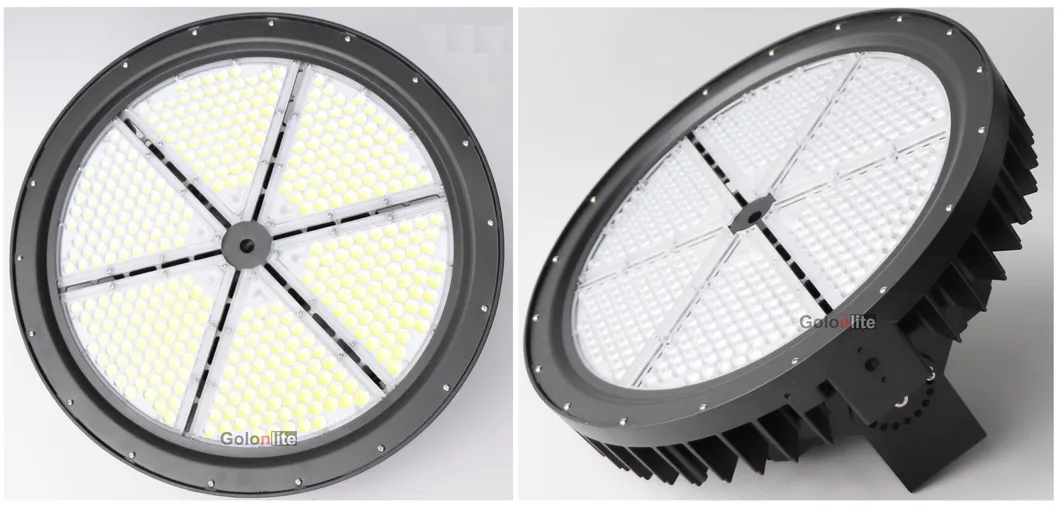

High power LED high bay light Specifications:
| Product description: 150Lm/W UFO LED high bay light | ||
Item no.: | GL-FR-600W/500W/400W/300W | |
Light | LED Type | SMD5050 |
| Luminous Efficiency | 150Lm/W | |
| CCT(K) | 3000K / 4000K / 5000K / 5700K / 6500K | |
| CRI | > Ra80/70 | |
| Power Supply | Meanwell / Inventronics / Sosen Driver | |
| Lifespan (Hrs) | > 50,000Hours | |
Electricity | Input Voltage(V) | 100-277VAC 347VAC 480VAC 50/60Hz |
| Dimming function | Three in one(0-10V,PWM,Resistance), Dali dimmable | |
| Power Consumption(W) | 600W/500W 400W /300W 240W/200W/160W/100W | |
| Sensor control | Microwave / Photocell sensor | |
| Beam angle | 20° / 30° / 40°/ 60° / 90° | |
| Replacement | Metal Halide / HPS / HID / Halogen lamps | |
Structure | Materials | Casting Aluminum housing + PC lens |
| Base(Standard Design) | 3 cores outlet +US/EU/US/AU plug | |
| Protection Grade | IP66 waterproof | |
| Certificate | CE RoHS 5 years warranty | |
High power LED high bay light Product features:
Three in one dimming function (0~10Vdc or PWM signal or resistance); Dali dimmable
Microwave sensor / Day light/Photocell sensor option
Die casting aluminum housing for the best heat sink solution
Super bright: 150Lm/W high lumens efficiency; the best energy saving;
With Lumileds 5050 LED, >Ra80;
Meanwell / Inventronics / Sosen driver, offer 5 years warranty, remarkable performance, top quality;
IP66 waterproof for indoor / outdoor application
Ring/Hook haning; Wall/ ceiling surface bracket mouting;
IES files, Free Dialux lighting study.
Fair price, fast delivery, LED lights factory since 2010.

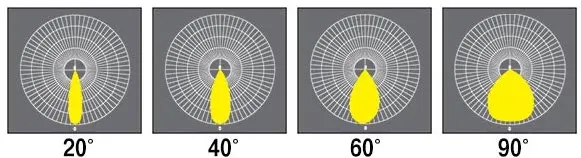

High power LED high bay light beam angle options:

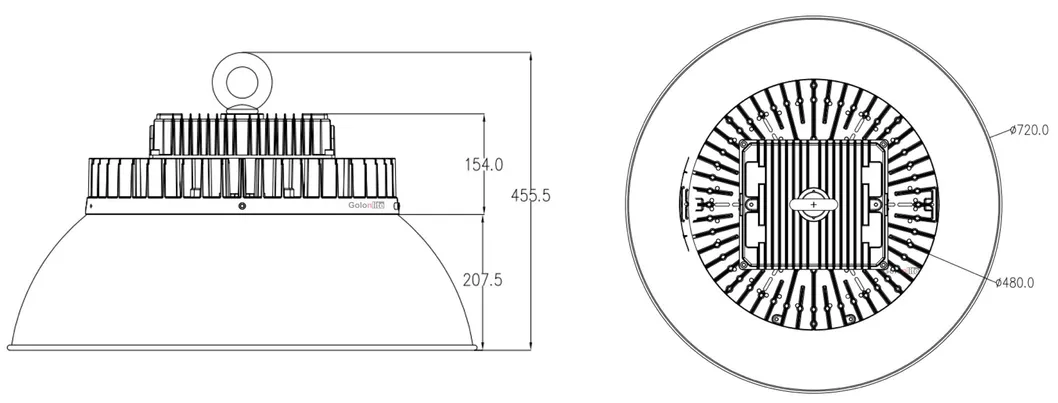

High power LED high bay light dimensions:

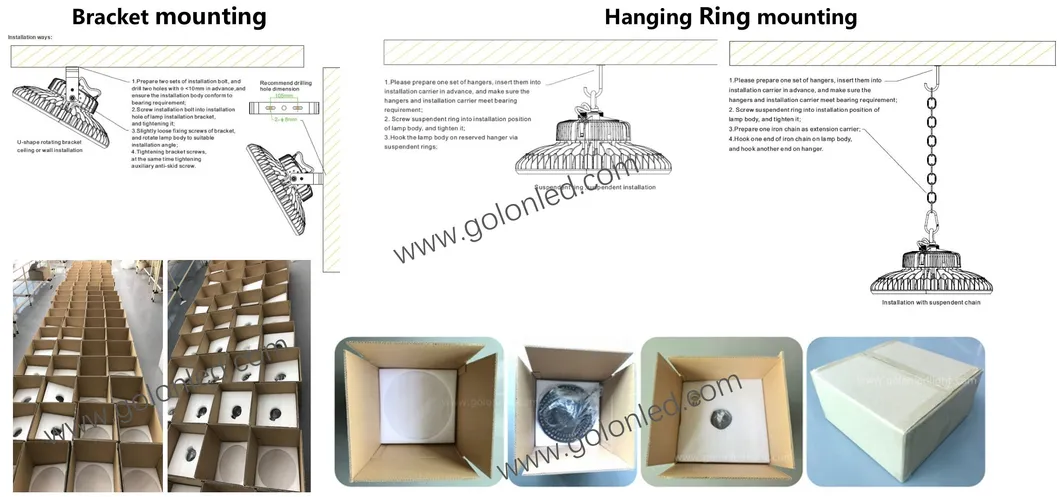

LED high bay light installations:

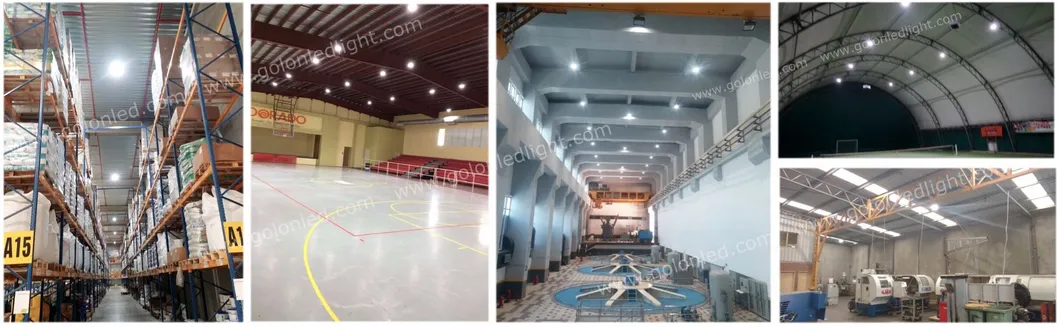

UFO IP66 LED high bay light indoor & outdoor Application:
Widely used in shopping mall, exhibition hall, parking lot, playground,
gymnasium, billboards, park, sculpture, national green lighting project,
building facade and public corridor, stair corridor and other indoor and outdoor lighting
GOLON 150Lm/W High power LED high bay light Package:
1pc/carton
| Model | Power | Lumens (Lm) | Replacement | Lamp size (mm) | N.W/pc (Kg) | G.W/CTN (Kg) | CTN size(cm) |
| GL-FR-600W | 600W | 90000 | 1500-2000W | Φ480*210mm | 17.1 | 18.9 | 54*54*31 |
| GL-FR-500W | 500W | 75000 | 1000-2000W | Φ480*210mm | 16.56 | 14.76 | 54*54*31 |
| GL-FR-400W | 400W | 60000 | 1000-1500W | Φ480*210mm | 16.35 | 14.55 | 54*54*31 |
| GL-FR-300W | 300W | 45000 | 500-1500W | Φ480*210mm | 15.13 | 13.33 | 54*54*31 |

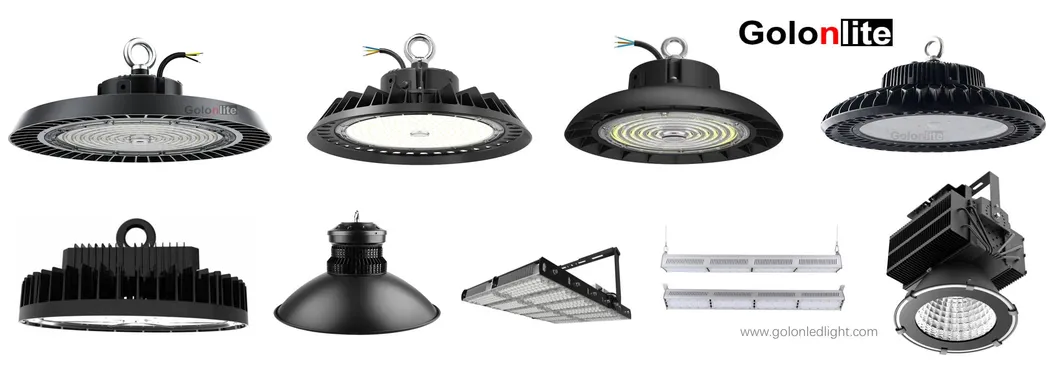

GOLON More LED high bay light series:
