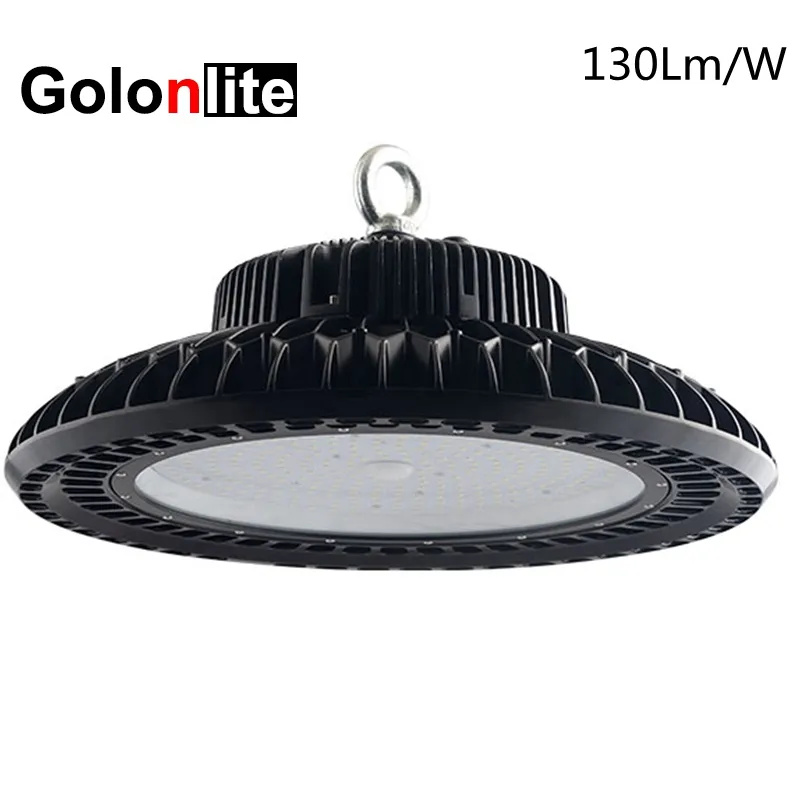

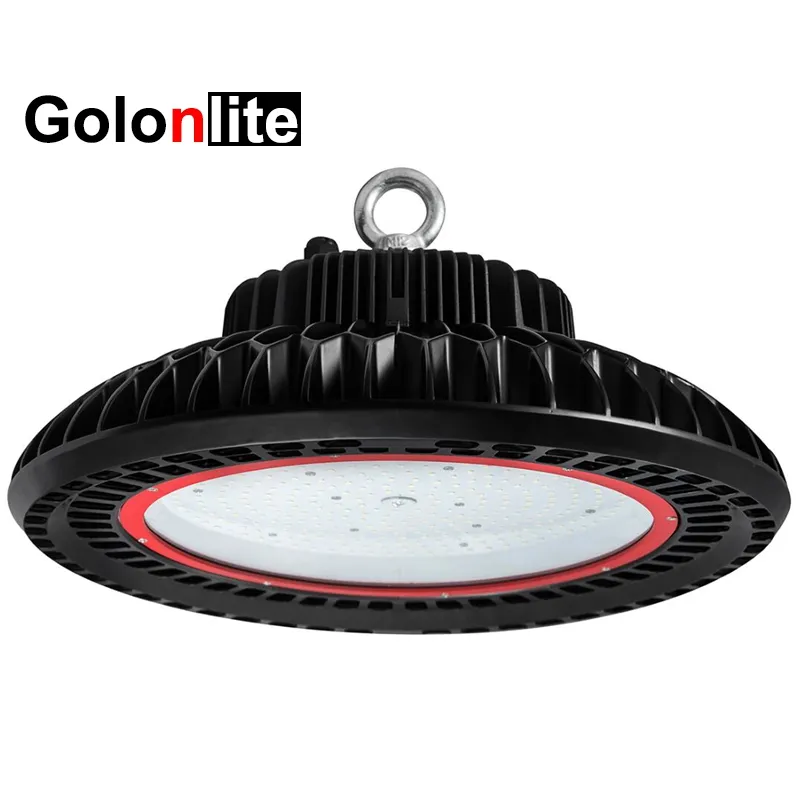

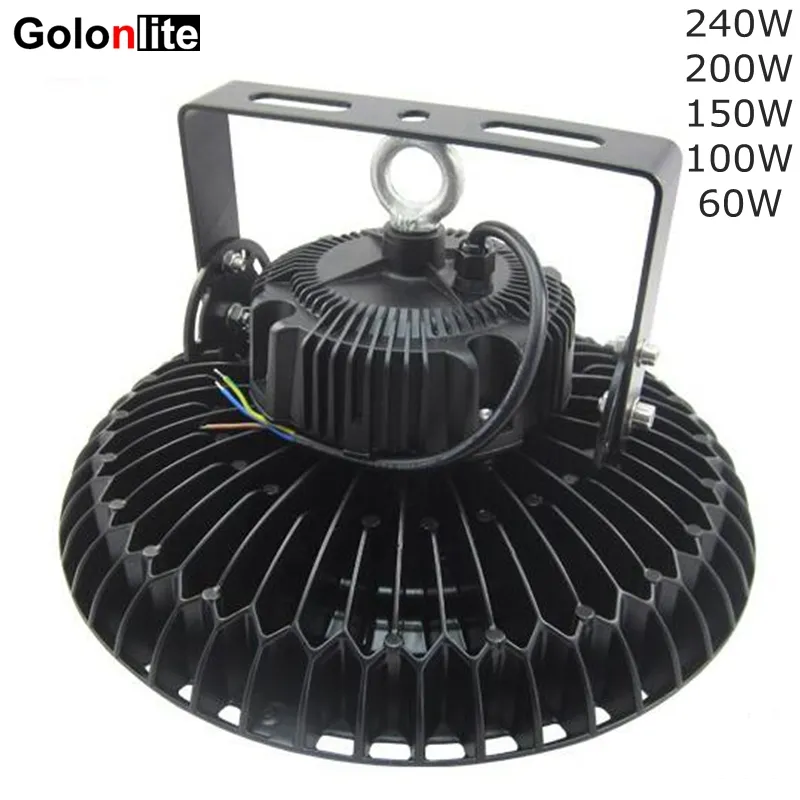

IP65 Waterproof 100W 200W 150W LED Flat Bay Lamp
CE IP65 waterproof 200W 150W LED flat bay lampLED flat bay lamp Specifications:Product description: 130Lm/W LED flat bay lampItem no.: GL-UHB-01/02/03/04D/05D LightLED Typewith Lumileds SMD3030Luminous Efficiency130Lm/WCCT(K)3000K / 4000K / 5000K / 5700K / 6500KCRI> Ra80Power SupplyMeanwell HB......
Send Inquiry
Product Description
LED flat bay lamp Specifications:
| Product description: 130Lm/W LED flat bay lamp | ||
Item no.: | GL-UHB-01/02/03/04D/05D | |
Light | LED Type | with Lumileds SMD3030 |
| Luminous Efficiency | 130Lm/W | |
| CCT(K) | 3000K / 4000K / 5000K / 5700K / 6500K | |
| CRI | > Ra80 | |
| Power Supply | Meanwell HBG / Sosen Driver | |
| Lifespan (Hrs) | > 50,000Hours | |
Electricity | Input Voltage(V) | 100-277VAC 347VAC 480VAC 50/60Hz |
| Dimming function | Three in one(1-10V,PWM,Resistance) | |
| Power Consumption(W) | 240W/200W/160W/100W/60W ±2W | |
| Sensor control | Microwave / Photocell sensor | |
| Beam angle | 60° / 90°(anti glare) / 120° clear cover | |
| Replacement | Metal Halide / HPS / HID / Halogen lamps | |
Structure | Materials | Aluminum housing + PC lens |
| Base(Standard Design) | 3 cores outlet +US/EU/US/AU plug | |
| Protection Grade | IP65 waterproof | |
| Certificate | CE RoHS 5 years warranty | |
LED flat bay lamp Product description:
Three in one dimming function (1~10Vdc or PWM signal or resistance)
Microwave sensor / Day light/Photocell sensor option
Black Fin aluminum housing, lighter and compact heat sink, saving freight cost & easier installation;
Super bright: 130Lm/W high lumens efficiency; the best energy saving;
With Lumileds 3030 LED, >Ra80;
External meanwell driver, offer 5 years warranty, remarkable performance, top quality;
IP65 waterproof for indoor / outdoor application
Ring/Hook haning ceiling / adjustable bracket mouting;
LED flat bay lamp Items details:
| Model | GL-UHB-01D | GL-UHB-02 | GL-UHB-03 | GL-UHB-04 | GL-UHB-05 |
| LED Light Source | 315pcs Refond 3030 | 266pcs Refond 3030 | 210pcs Refond 3030 | 133pcs Refond 3030 | 84pcs Refond 3030 |
| LM/W | 130Lm/W | ||||
| Bulb Watt | 240W | 200W | 160W | 100W | 60W |
| Input Voltage | 100-277VAC | 100-277VAC | 100-277VAC | 100-277VAC | 100-277VAC |

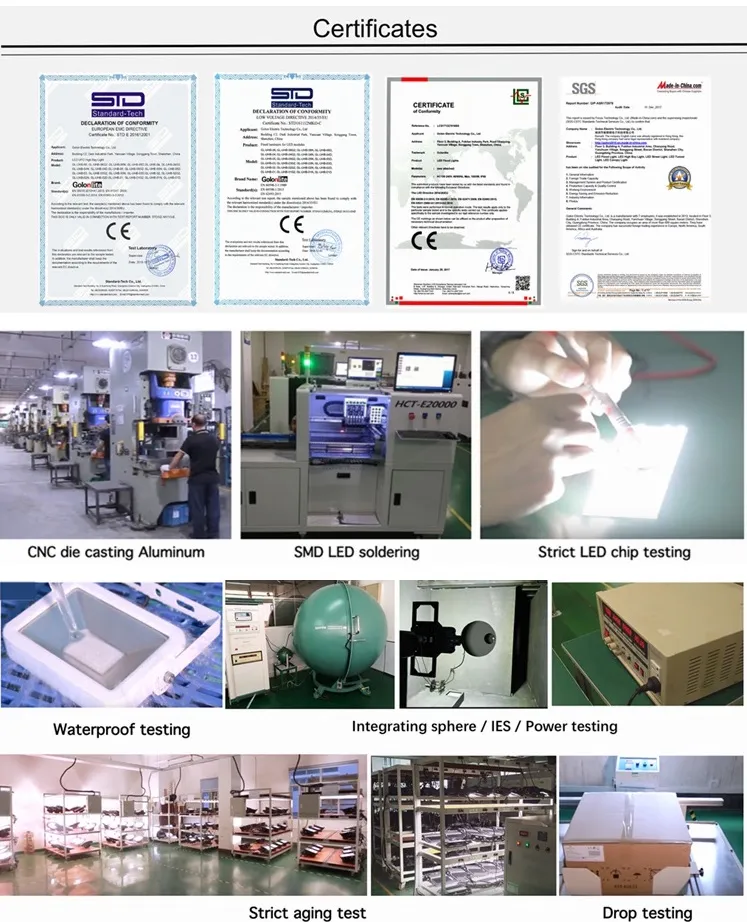

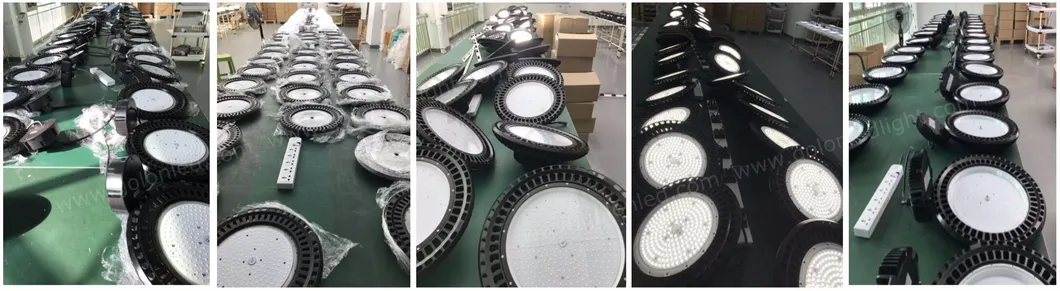

GOLON LED flat bay lamp productions:

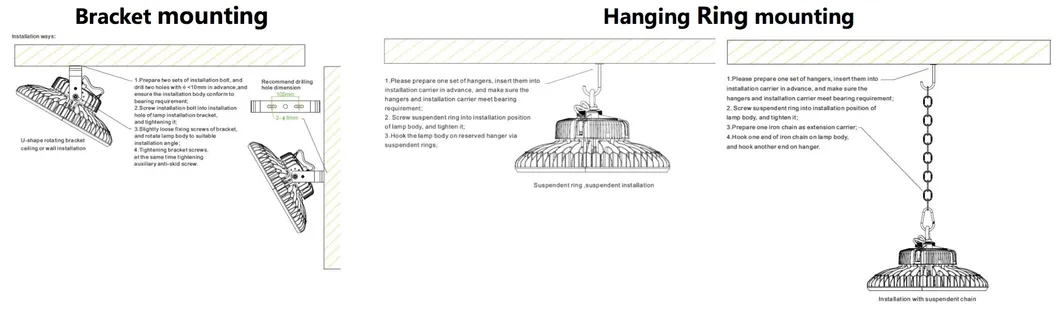

LED falt bay lamp installations:

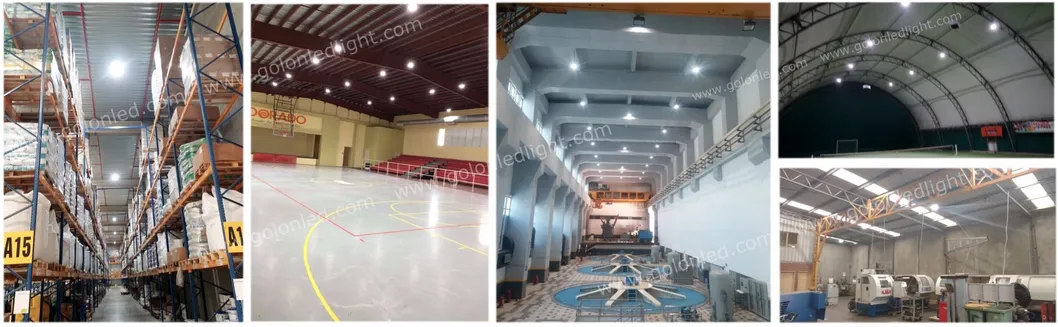

LED flat bay lamp indoor & outdoor Application:
Widely used in shopping mall, exhibition hall, parking lot, playground,
gymnasium, billboards, park, sculpture, national green lighting project,
building facade and public corridor, stair corridor and other indoor and outdoor lighting
GOLON LED flat bay lamp Package:
1pc/carton
| Model | Power | Lumens (Lm) | Replacement | Lamp size (mm) | N.W/pc (Kg) | G.W/CTN (Kg) | CTN size(cm) |
| GL-UHB-01D | 240W | 31200 | 800-1000W | Φ400*196mm | 6.5 | 8.1 | 47*47*24 |
| GL-UHB-02D | 200W | 26000 | 600-800W | Φ400*196mm | 6.5 | 8.1 | 47*47*24 |
| GL-UHB-03D | 160W | 20800 | 500-600W | Φ340*187mm | 4.93 | 5.93 | 41*41*23 |
| GL-UHB-04D | 100W | 13000 | 400-500W | Φ280*185mm | 3.78 | 4.33 | 35*35*23 |
| GL-UHB-05D | 60W | 7800Lm | 250-300W | Φ280*185mm | 2.26 | 3.45 | 32*32*20 |

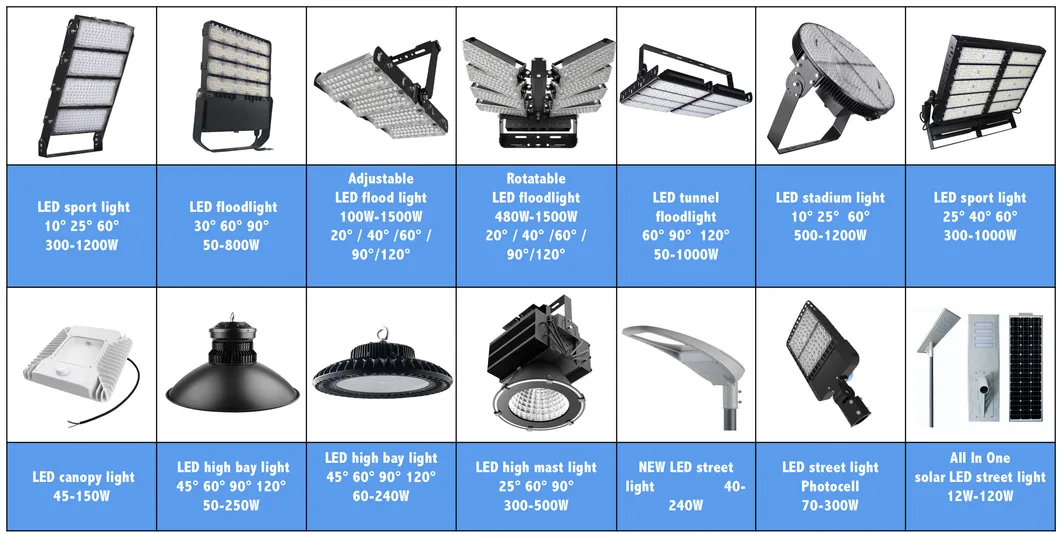

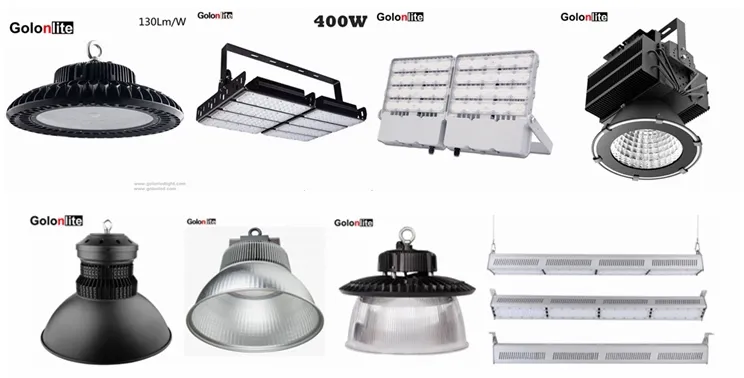

More LED falt bay lamp series:

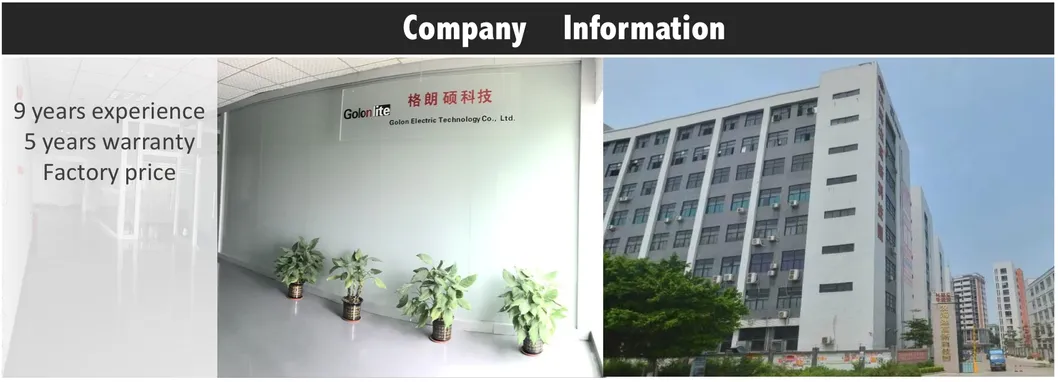

China LED light manufacture-- GOLON
Experienced LED lights manufacturer since 2010 offers LED lighting solutions
New produced LED lights, fast delivery
Dialux lighting study available
Golonlite is a technology oriented enperprise in Shenzhen, integrating the research, development, design and production of industrial / Commercial LED light fixtures. . We have our own brand Golonlite registered in Shenzhen. With 9 years experirnece of production, engineering and world trades, we understand the importance of price, quality and design,so we do our own procutions, engineerings and reseach into full consideration. Our main prouduct lines include LED flood lights, LED high bay lights, LED canopy lights, LED street lights, high mast LED stadium light, solar LED street lights, tennis court lighting solutions,exterior led spotlight, LED PL lamp bulbs.
We are well-known in the LED industry with our advanced technology, scientific management, excellent quality and the first-class services.
GOLON Services
1. Any inquiries, will be replied in 24hrs.
2. All your inquiries will be well explained by our experienced staff.
3. All after sale problems will be deal with in 24hrs.
4. OEM, ODM welcomed.
5. Distributorship is available for your unique design and some our current models.
6. We will keep secret for customer sale area,design ideas and all other private information.
7. Offer 5 years warranty.
8. Lighting design for free --- Provide IES file, Dialux lighting design & solutions.
Golon Manufacturing Co. Ltd.
golon2010.en.made-in-china.com golon2010.en.made-in-china.com golon2010.en.made-in-china.com
Unit price is negotiable, any need of high power high mast LED lighting 1500W 1440W 1200W 1000W 960W 800W 720W 500W 480W 400W 300W 240W 200W 120W 100W options. Just contact with us, will reply in 24hrs.
