Product Description

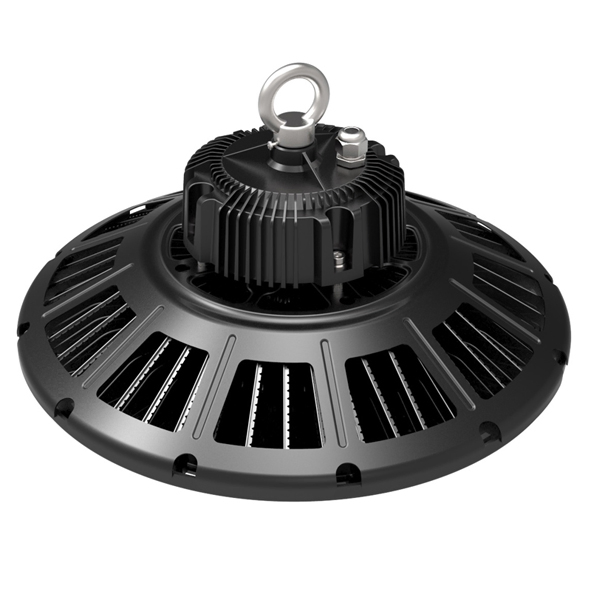

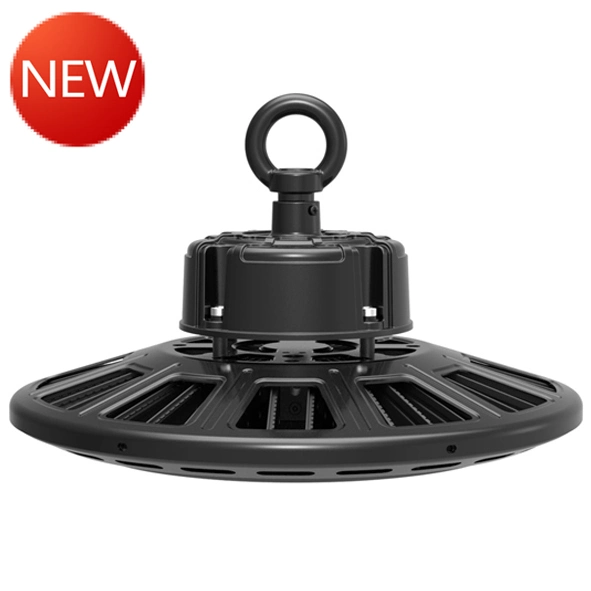

LED High Bay Light Warehouse Industrial Factory Commercial Lamp UFO

Parameters

Model	HB15-100W	HB15-150W	HB15-200W
Power	100W	150W	200W
LED type	SMD 3030	SMD 3030	SMD 3030
LED Qty	180 PCS	180 PCS	238 PCS
Connection	36P5S	36P5S	34P7S
LED Volt	30V	30V	42V
Driver type	MW/ HBG-100-36A	MW/ HBG-160-36A	MW/ HBG-240-48A
Input Volt	100-277V	100-277V	100-277V
Power Factor	>0.95	>0.95	>0.95
Lumen	>140LM/W	>130LM/W	>130LM/W
Color Temp	3000-6500K	3000-6500K	3000-6500K
Coler Render	>70	>70	>70
Beam Angle	60°/90°	60°/90°	60°/90°

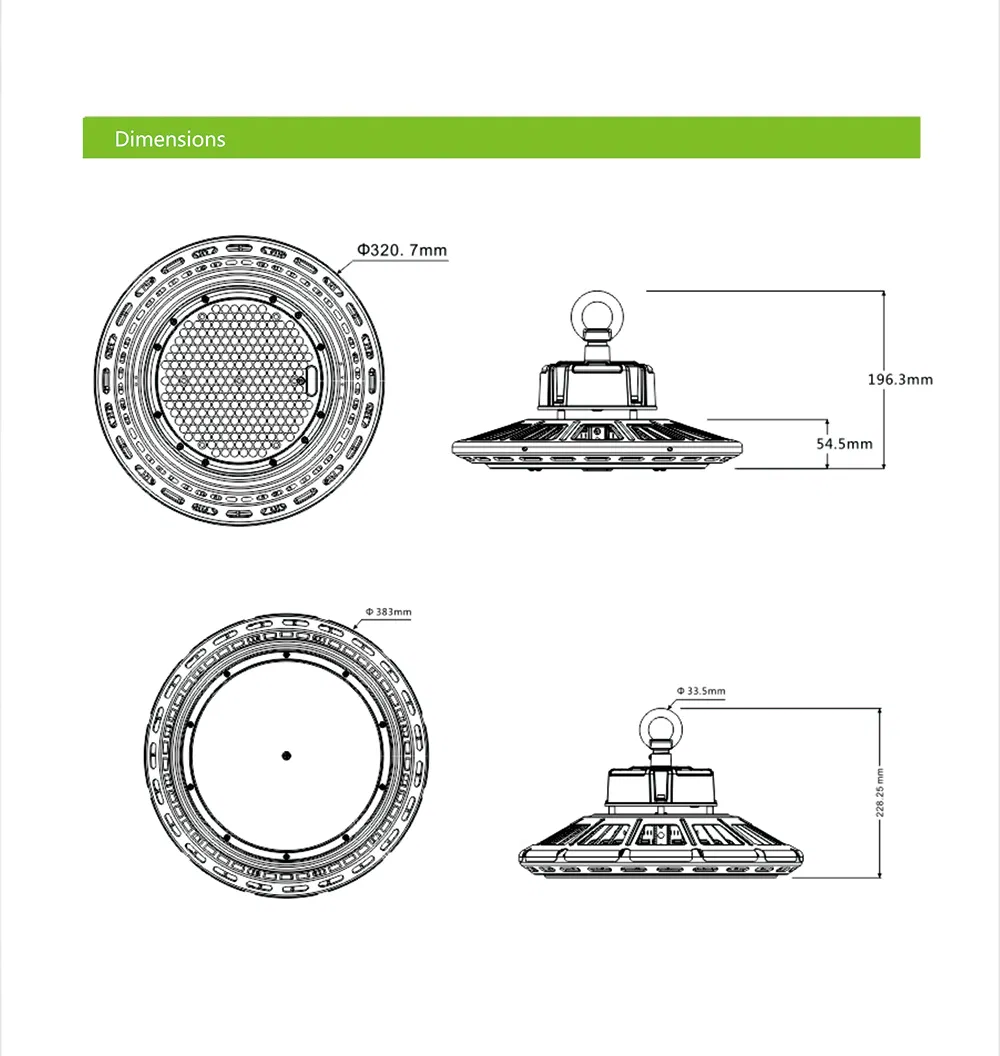

Product size	Φ321x197 mm	Φ321x197 mm	φ383x271mm

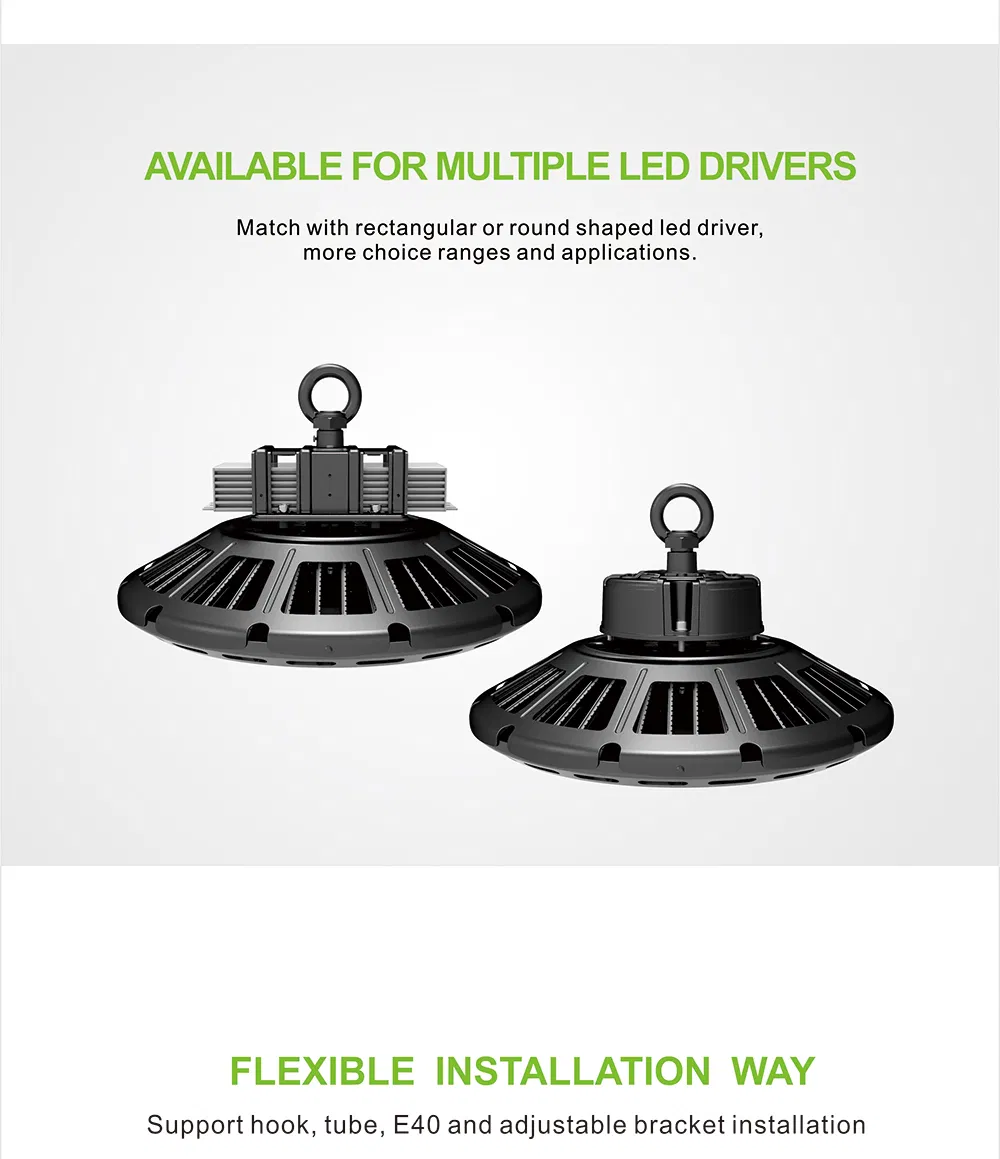

Installation	Hook / ring / E40 lamp / square bracket, optional
Light material	Die-cast lamp body + fins heat aluminum + PC lens
Protection degree	IP54	IP54	IP54
Work Temp	-30ºC~+50ºC	-30ºC~+50ºC	-30ºC~+50ºC
Work Humidity	10%~90%	10%~90%	10%~90%
Life/Warranty	50,000hrs / 5 Years	50,000hrs / 5 Years	50,000hrs / 5 Years

Products Details

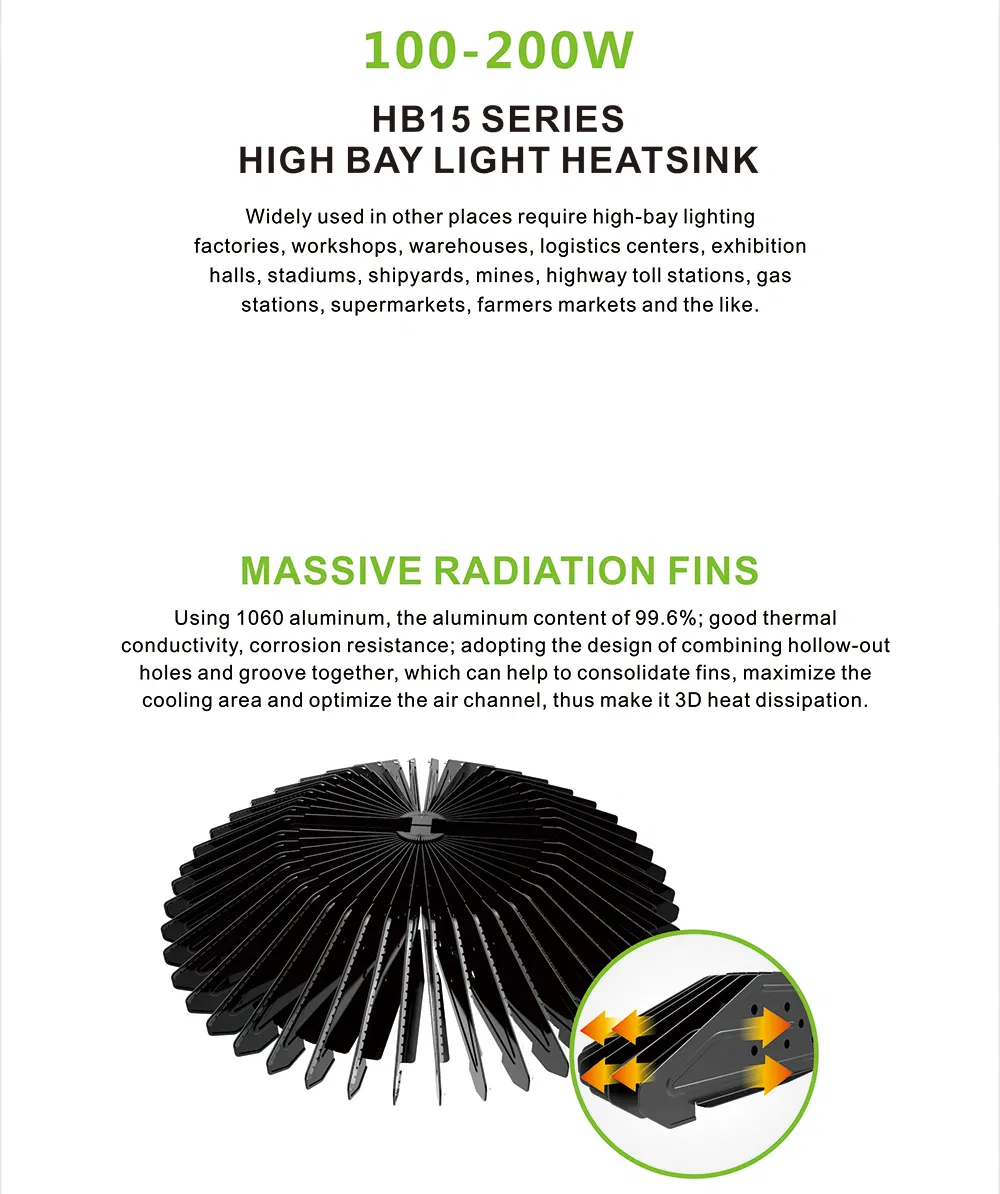

1) Use integrated structure design, the appearance of simple and tough shape; use high corrosion
resistance and high thermal conductivity of 1060 industrial aluminum, one for forming forming process,
precision plastic, heat a large area, good thermal conductivity.

2) The body is electrophoresis processed, the product has excellent anti-corrosion, anti-rust function, to
adapt to a variety of working environment; structural waterproof design, product protection up to IP65.

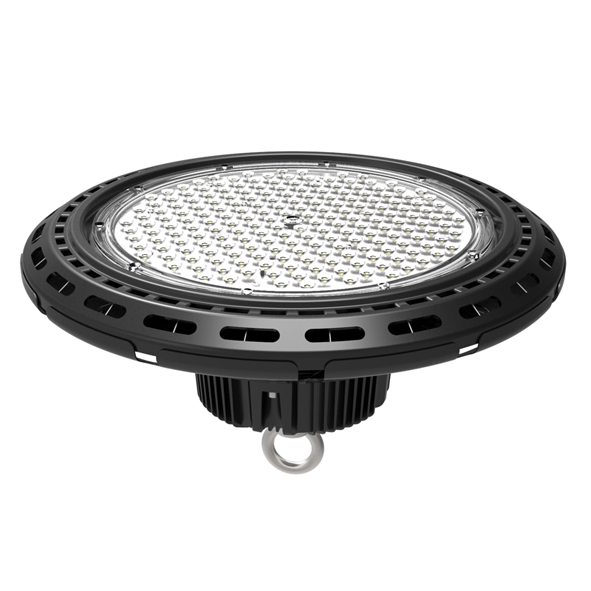

3.)Three beam angle 60 °/110 °/120° glossy lens, lens with high quality imported PC material, high
transmittance, flame retardant and anti-UV, professional light to meet the different applications.

4) Optional fog silver high-purity aluminum reflector, the appearance of simple atmosphere, solid and
reliable structure, with anti-glare function.

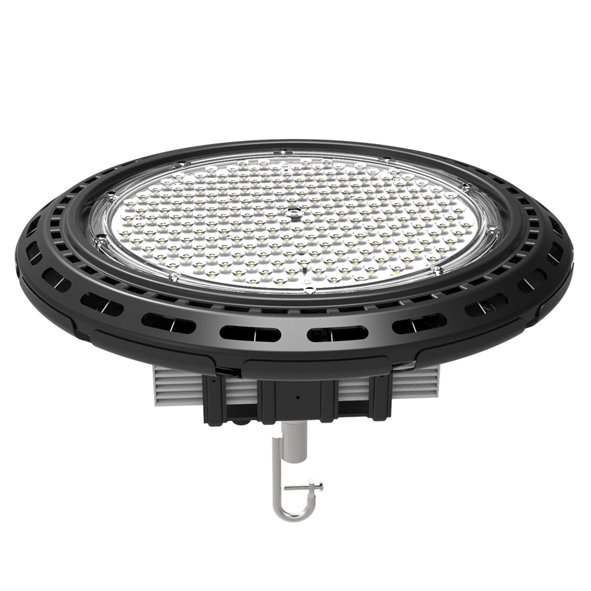

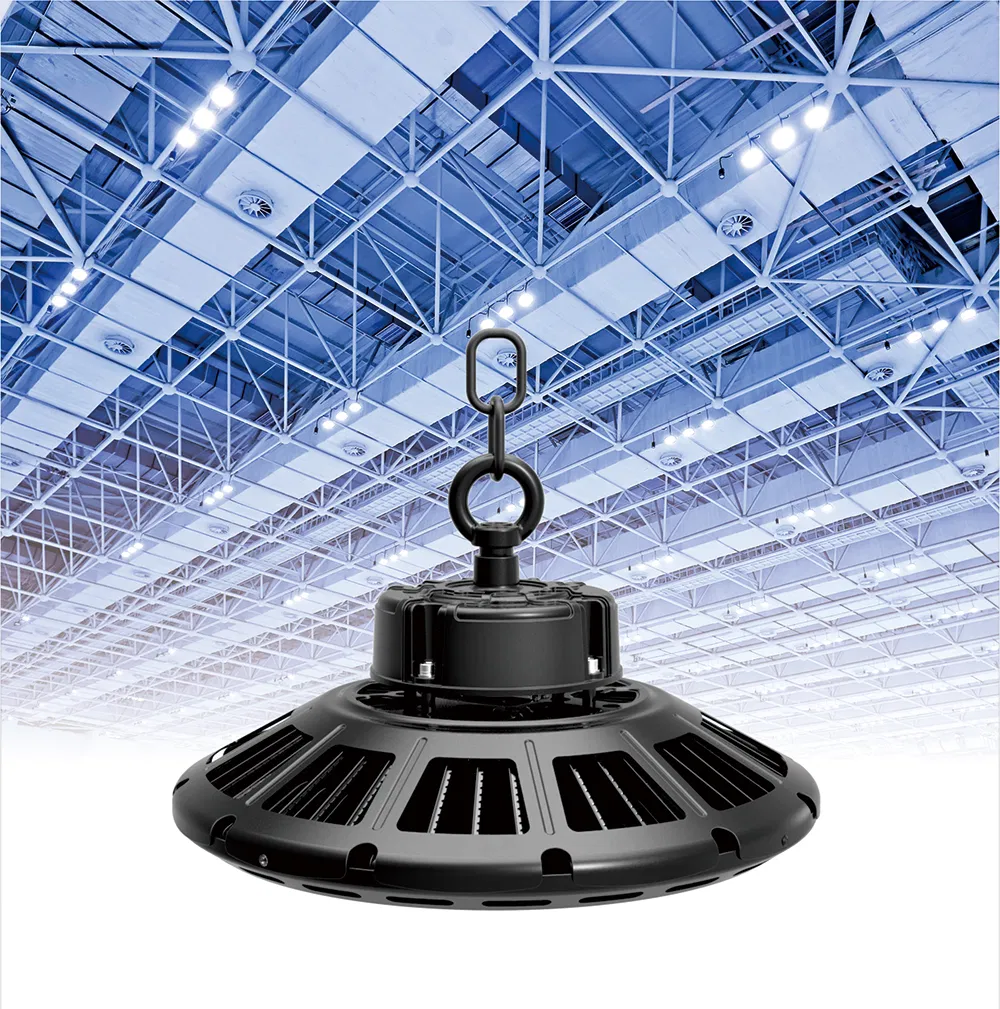

Picture showing
