LED Outdoor Lighting Luminaries 500W 400W 600W 1000W Public Luminaria LED
LED outdoor lighting luminaries 500W 400W 600W 1000W public Luminaria LED Dialux lighting study availableProduct description: 1440W 1200W 960W 720W 600W 480W 400W 300W 240W 200W 120W 100W Item No.: GL-ST-1440W 1200W 960W 720W 600W 480W 400W 300W 240W 200W 120W 100W LightLED Type Lumileds SMD5050Lum......
Send Inquiry
Product Description
Dialux lighting study available
| Product description: 1440W 1200W 960W 720W 600W 480W 400W 300W 240W 200W 120W 100W | ||
Item No.: | GL-ST-1440W 1200W 960W 720W 600W 480W 400W 300W 240W 200W 120W 100W | |
Light | LED Type | Lumileds SMD5050 |
| Luminous Efficiency | 160Lm/W | |
| CCT(K) | 3000K / 4000K / 5000K / 5700K / 6500K | |
| CRI | > Ra70 | |
| Power Supply | Meanwell / Sosen /Inventronic Driver | |
| Lifespan (Hrs) | > 50,000Hours | |
Electricity | Input Voltage(V) | 100-277VAC / 347V/ 480V 50/60Hz |
| Dimming function | 1-10V,PWM,Resistance, Dali dimmable | |
| Power Consumption(W) | 1440W 1200W 960W 720W 600W 480W 400W 300W 240W 200W 120W 100W | |
| Power factor | >PF0.95 | |
| Beam angle | 20° /40° / 60° / 90° / 120° / 100*140° | |
| Replacement | Metal Halide / HPS / HID / Halogen lamps 1000-2500W | |
Structure | Materials | Fin Aluminum housing + optical lens |
| Base(Standard Design) | 30cm 3 cores cable outlet(US/EU/US/AU plug optional) | |
| Protection Grade | IP65 waterproof | |
| Certificate | CE RoHS 5 years warranty | |
High efficiency waterproof Luminaria LED features:
1. Adopt with world famous Meanwell driver; Lumileds SMD5050 LEDs;
2. Super bright, reach high effieciey 150Lm/W

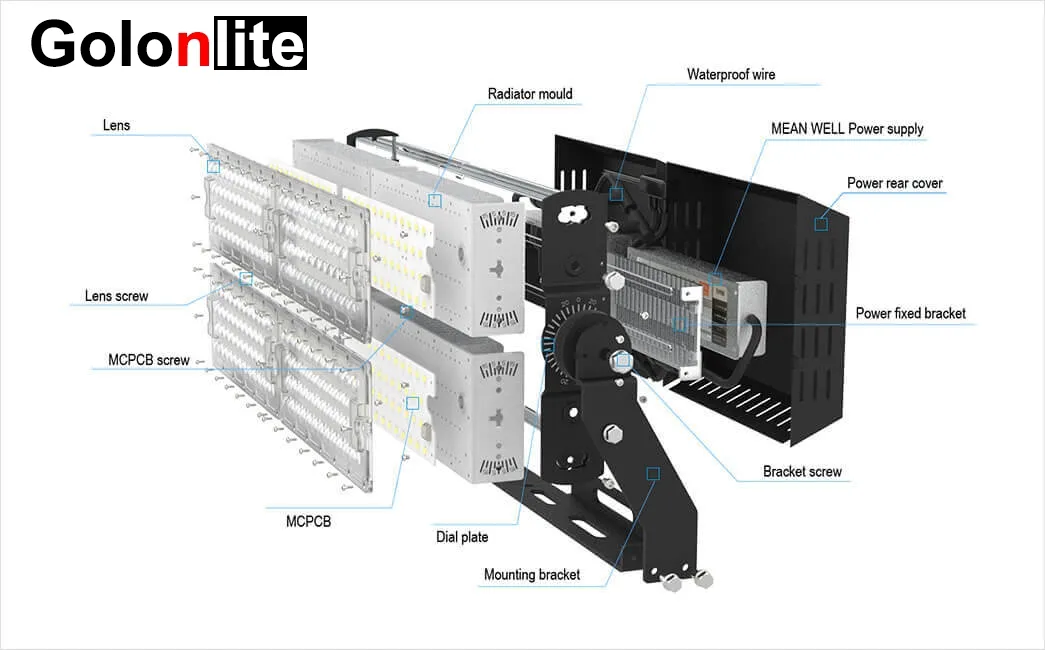

3. Fin Alumium housing design, for the best heat sink solutions,; 20% weight lighter compare to other lights;
4. Anti-dust design,able to be with flushable cleaning;
5. Protractor scale for easier aiming of 15° single LED moduel adjustable; 360° rotatable LED panel;

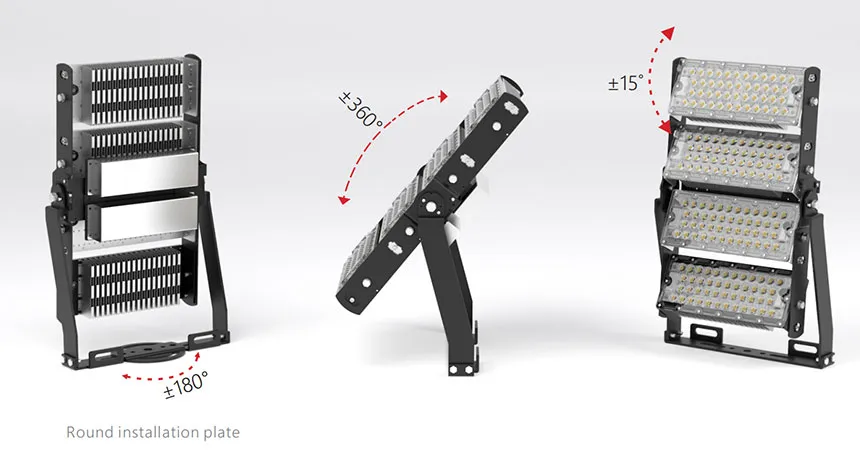

6. 180° adjustable for the whole lamp with Round installation plate;
7. Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other 6.components,these fixtures can withstand corrosive and salt intensive environments.

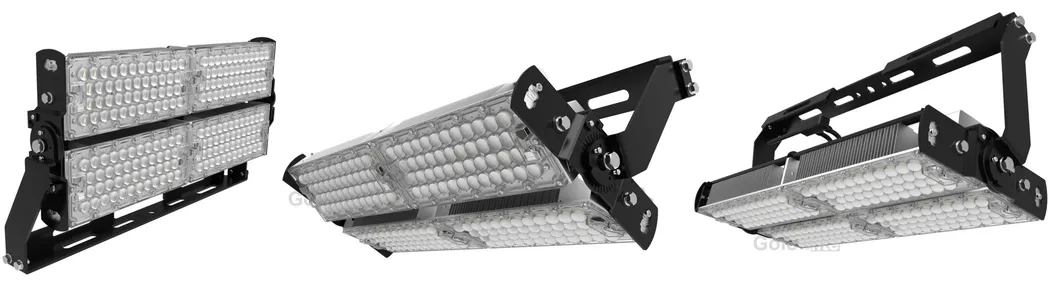

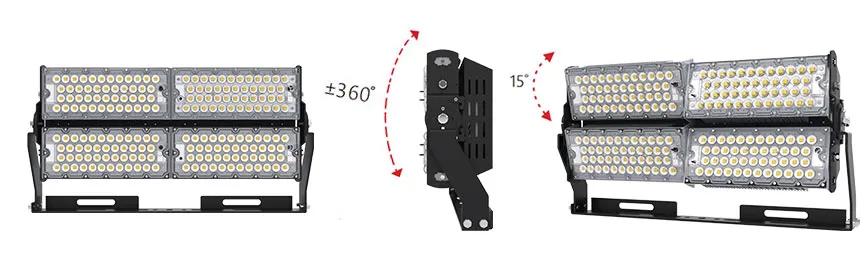

Single LED board Adjustable / Whole LED panel adjustable:

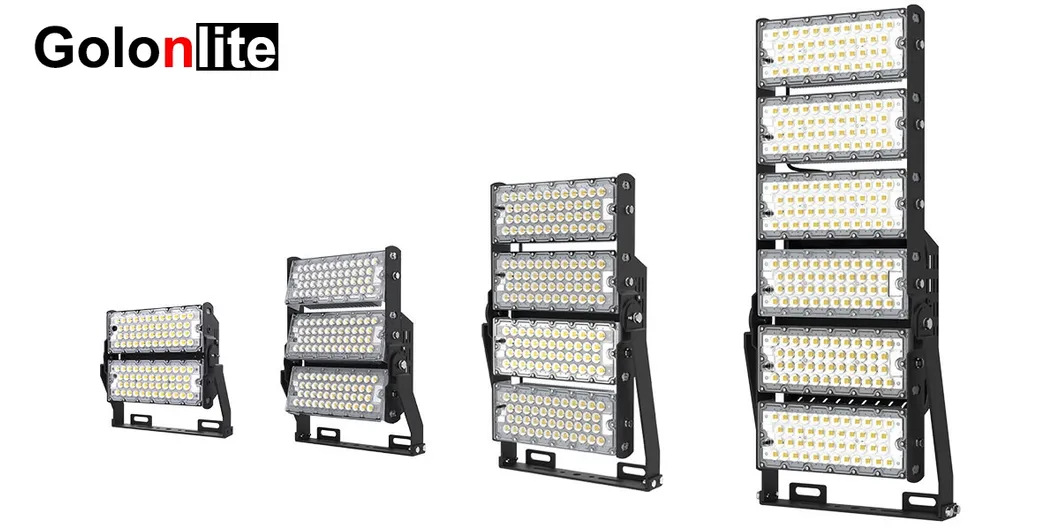

B Shape Luminaria LED:

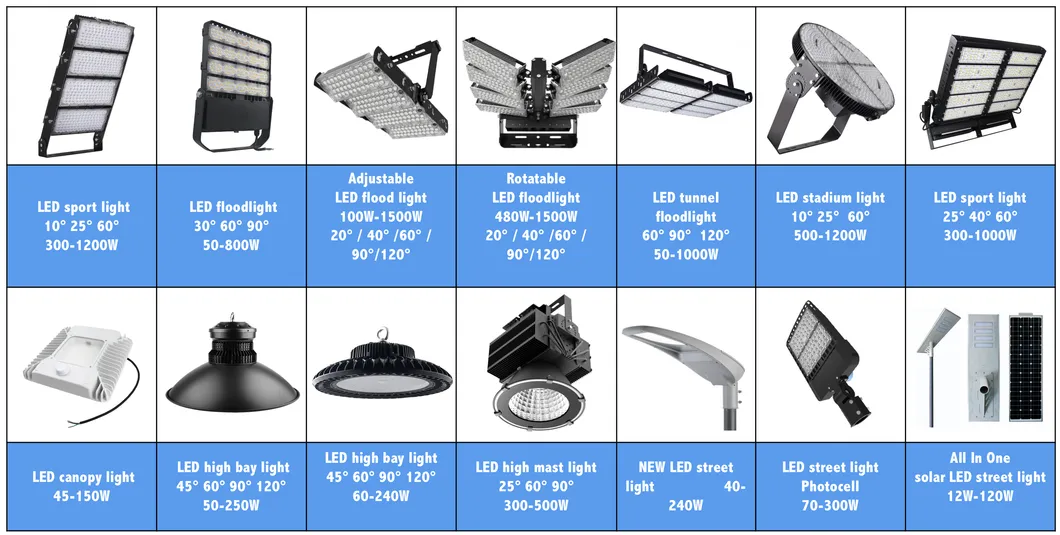

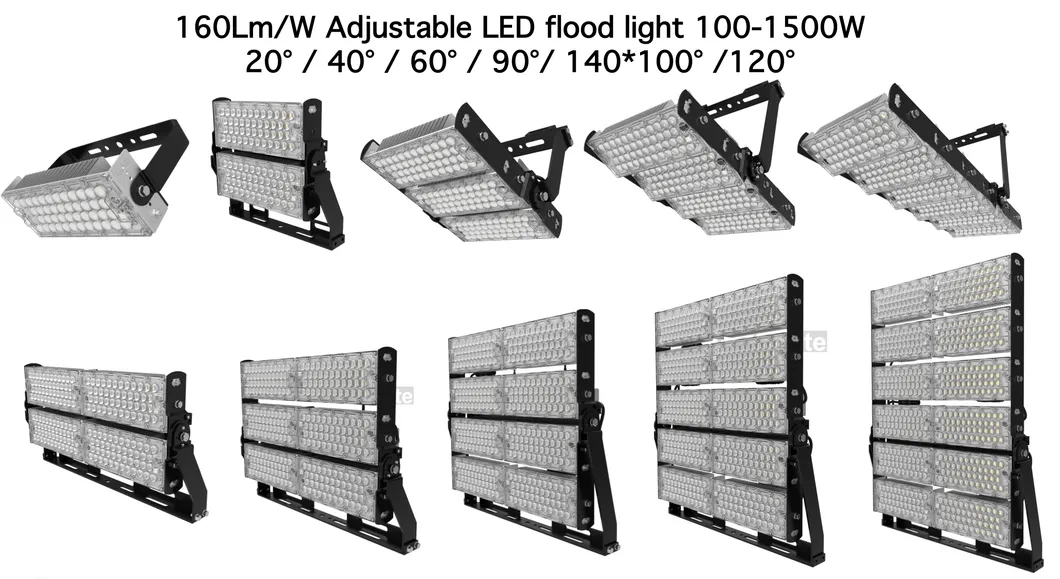

More Golonlite Luminaria LED series:

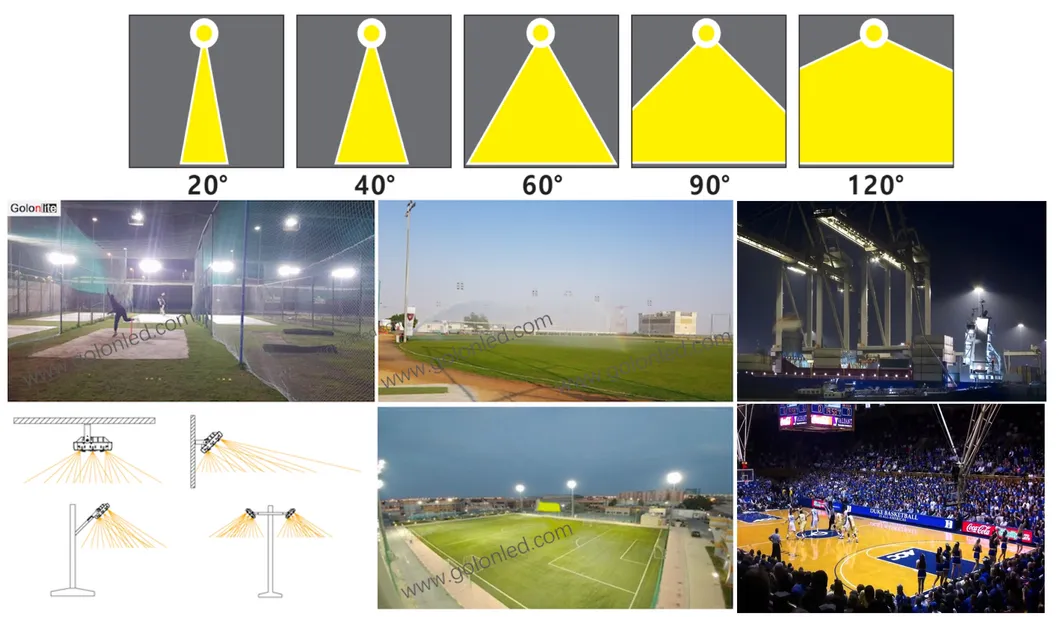

Photometrics & applications
High efficency LED sport light for high mast lighting stadium football sport court seaport airport wharf building
GOLON 160Lm/W highbay LED light series details:
| Model | Power | Lumens Efficiency | Beam angle | Replacement of Metal halide Halogen lamps | Driver | LEDs | Dimmable |
| GL-ST-1440W | 1440W | 160Lm/W | 20/40/60/90/120/ 140*100 degrees | 2000-2500W | Meanwell / Sosen /Inventronics | Lumields SMD5050 | 1-10V,PWM, resistance, Dali dimming |
| GL-ST-1200W | 1200W | 2000-2500W | |||||
| GL-ST-960W | 960W | 2000W | |||||
| GL-ST-720W | 600W | 2000W | |||||
| GL-ST-600W | 500W | 1000-2000W | |||||
| GL-ST-480W | 480W | 1000W-1500W | |||||
| GL-ST-400W | 400W | 1000W-1500W | |||||
| GL-ST-300W | 300W | 1000W | |||||
| GL-ST-240W | 240W | 800-1000W | |||||
| GL-ST-200W | 200W | 500W-1000W | |||||
| GL-ST-120W | 120W | 400-500W | |||||
| GL-ST-100W | 100W | 400-500W |
LED outdoor lighting luminaries 500W 400W 600W 1000W public Luminaria LED

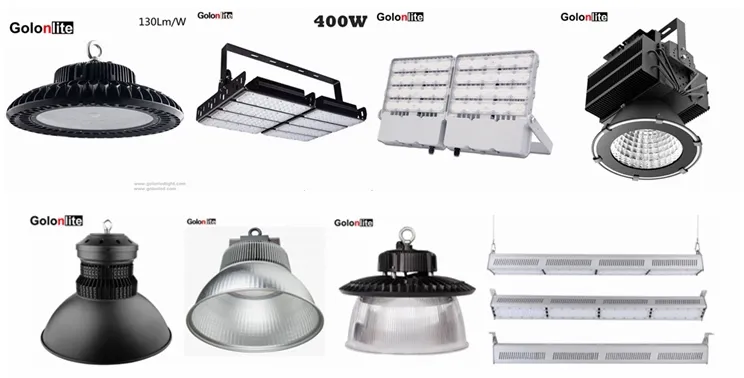

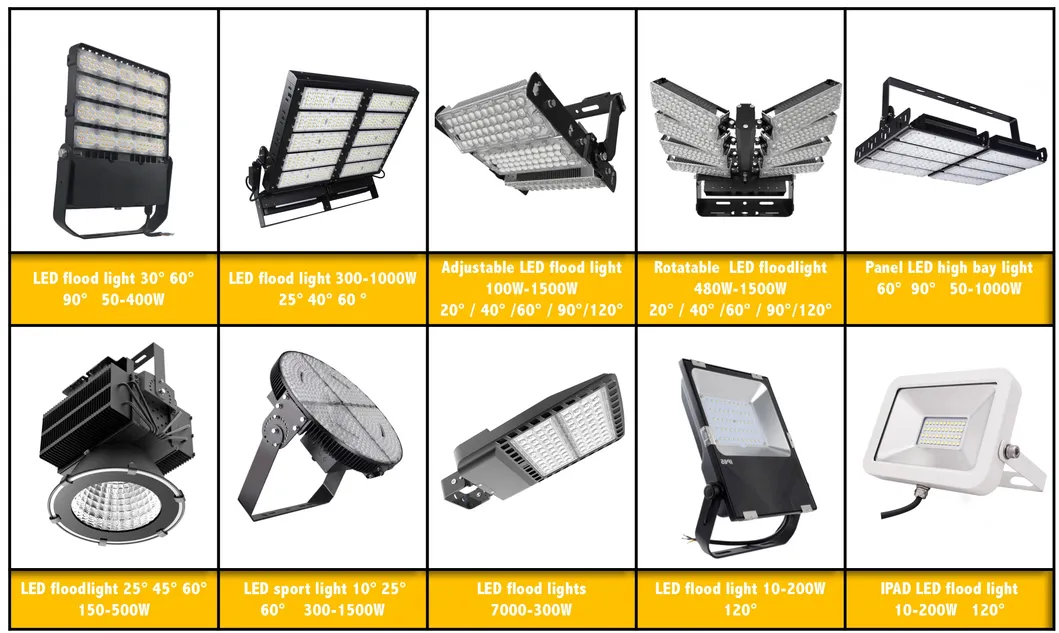

MORE industrial luminaria LED light series:
China LED light manufacture-- GOLON
Experienced LED lights manufacturer since 2010 offers LED lighting solutions
New produced LED lights, fast delivery
Dialux lighting study available
Golonlite is a technology oriented enperprise in Shenzhen, integrating the research, development, design and production of industrial / Commercial LED light fixtures. . We have our own brand Golonlite registered in Shenzhen. With 9 years experirnece of production, engineering and world trades, we understand the importance of price, quality and design,so we do our own procutions, engineerings and reseach into full consideration. Our main prouduct lines include LED flood lights, LED high bay lights, LED canopy lights, LED street lights, high mast LED stadium light, solar LED street lights, tennis court lighting solutions,exterior led spotlight, LED PL lamp bulbs.
We are well-known in the LED industry with our advanced technology, scientific management, excellent quality and the first-class services.
GOLON Services
1. Any inquiries, will be replied in 24hrs.
2. All your inquiries will be well explained by our experienced staff.
3. All after sale problems will be deal with in 24hrs.
4. OEM, ODM welcomed.
5. Distributorship is available for your unique design and some our current models.
6. We will keep secret for customer sale area,design ideas and all other private information.
7. Offer 5 years warranty.
8. Lighting design for free --- Provide IES file, Dialux lighting design & solutions.
