Warehouse Supermarket IP65 Linear LED High Bay Light (RB- LHB -120W)
warehouse supermarket IP65 Linear LED High Bay Light(RB-LHB-120W)Item No.: RB-LHB-120WInput Voltage: AC 100~277V 50-60HZPower Factor: >0.98; Power Efficiency: >0.90LED Luminous Efficiency: 130lm/WLED High Bay Light Power Consumption: 125WED Chip: 3030Lamp Beam Angle: 120 degreesColor Index: Ra......
Send Inquiry
Product Description

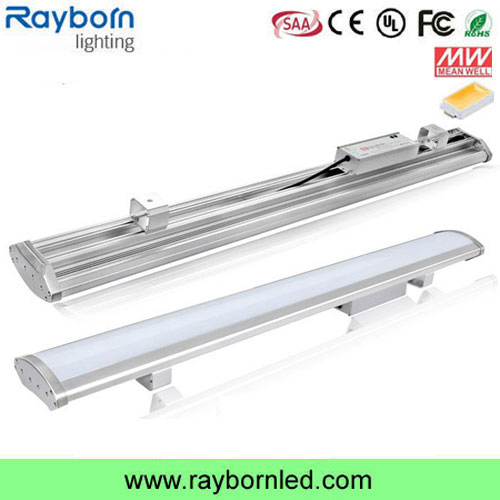

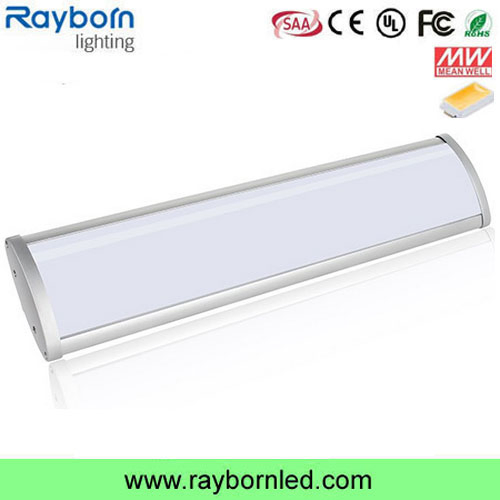

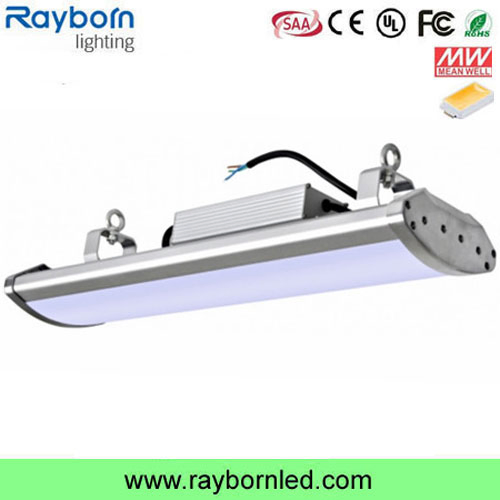

warehouse supermarket IP65 Linear LED High Bay Light(RB-LHB-120W)
Item No.: RB-LHB-120W
Input Voltage: AC 100~277V 50-60HZ
Power Factor: >0.98; Power Efficiency: >0.90
LED Luminous Efficiency: 130lm/W
LED High Bay Light Power Consumption: 125W
ED Chip: 3030
Lamp Beam Angle: 120 degrees
Color Index: Ra≥ 80
Color Temperature: 2700-7000K
Operating temperature: -40~50
Protection Class: IP65
Lumen: 15500LM
Useful Life: ≥ 50000 hours
Lamp Body Material: Aluminum +PC cover
Color of Housing: Silver

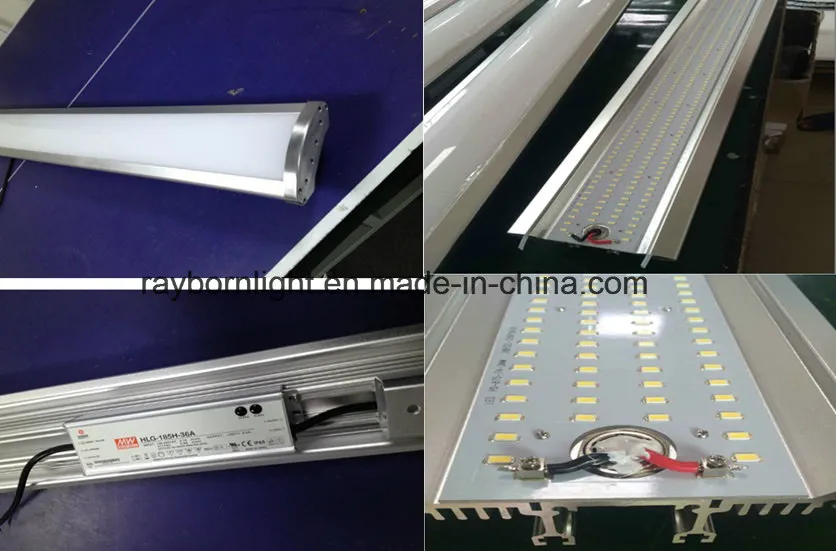

Details of linear led high bay light:
120W linear Led High bay light Features:
1. Adopting 3030 /Samsung 5630 chips, Meanwell HLG driver.
2. 2ft/ 80w, 3ft/ 120w, 4ft/ 150w, 5ft/ 200w
3. Overall aluminum stretching, beautiful shape, clear & milky cover.
4. High luminous efficiency 110lm/w-140lm/w.
5. Various view angle: 30/60/90/70*140/120Deg.
6. Better heat dissipation than traditional high-bay light.
7. IP65 design, suitable for indoor/outdoor, damp/wet locations.
8. Long lifetime, up to 50,000 hours with 5 years warranty.
9. 70%-80% energy-saving compared with traditional tube T8 Light.
10. Solid-state, high shock/vibration resistant.
11. No RF interference, No mercury or other hazardous materials, low power consumption, high intensity.

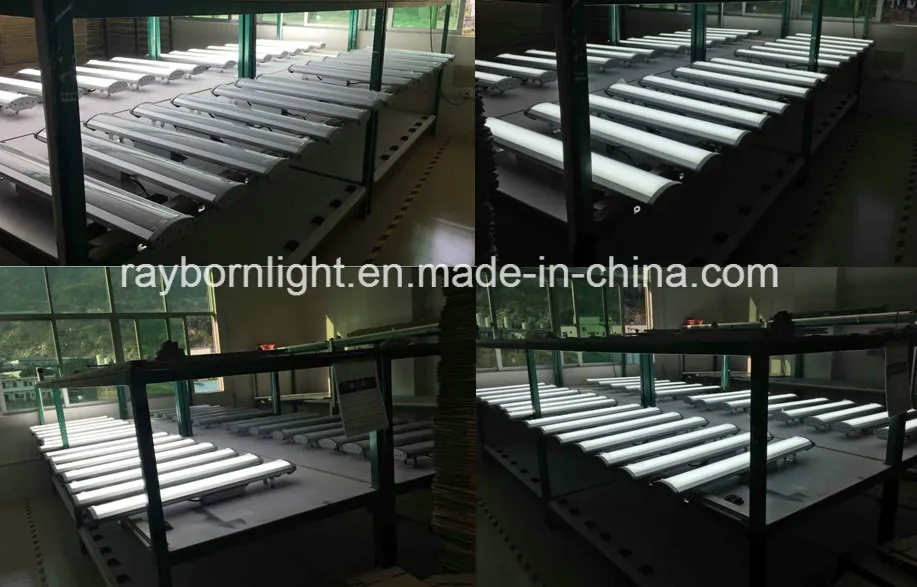

Testing of 120w linear led high bay light:
All our LED high bay lights will be tested before shipping,such as current and function test, earth conncet test, temperature test, light distribution test, vibration test, integrating sphere test, salt spray test, and aging test, so that we can ensure the quality and light performance.Because we must be responsible to our customers.

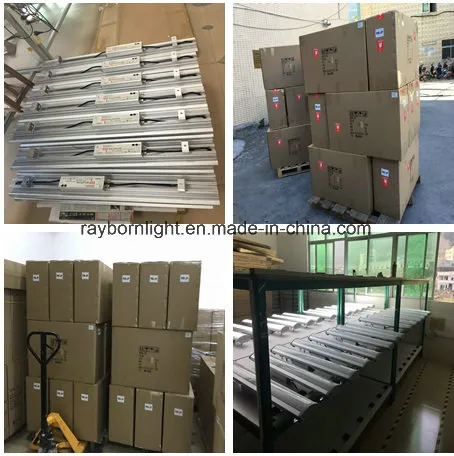

Packaging of LED 120w linear led high bay lights

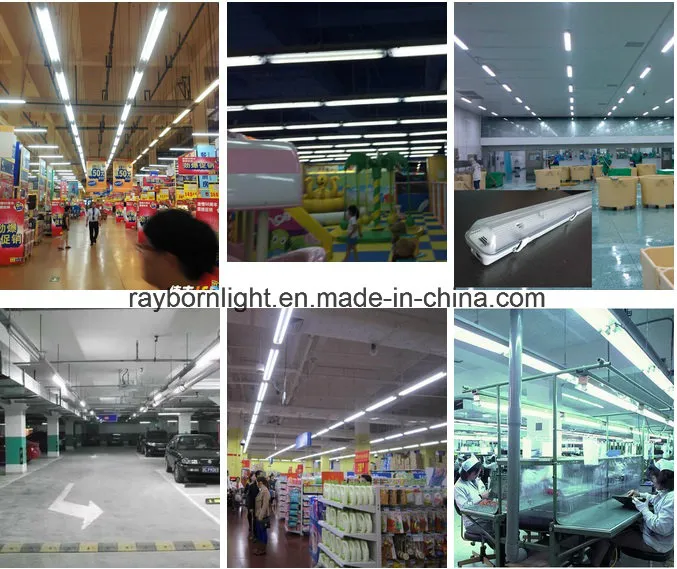

Installation and Application:
1. Instead of the fluorescent lights indoors
2. School / Universities / Hospital
3. Conference / Meeting room / Show Room
4. Commercial establishments
5. Factories / Offices
6. Super-markets
7. Residential / Institution buildings
8. Government lighting engineering, airport, subway, elevated overpass, billboard stadium,
9. Building external walls landmarks such as the landscape lighting
Shipping of led high bay lights: By sea,air,express (DHL,FedEX,UPS,TNT etc.)
1. Big quantity advised to be shipped by sea.
2. Samples advised to be shipped by express.
3. Small quantity advised to be shipped by air.
Varies services can be provided to you.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. OEM or ODM service is welcome.
3. Professional service from well-trained and experienced staffs is customers' best choice to secure good communication, on time delivery, reliable warranty etc.
4. For all your inquires about us or our products, we will reply you in details within 24 hours.
5. Convenient and smooth communication.
6. Detailed and professional specifications and guidances of products.
7. Your requirements and complaints are highly respected.
8. Lighting solutions by professional technician.
9. Fast &Cheap Delivery.
10. Free Light study.
11. Various Certificates.
12. Product Update.
Trade terms
1. Payment: T/T, L/C and paypal are available.
2. Lead time: Sample Order: 5-7 working days. Bulk Order: 10-15working days.
3. Package: 4 pcs /carton or as your custom package.
4. Shipping freights are quoted under your requests.
5. Shipping port: Shenzhen port
6. Discounts are offered based on order quantities.
Warranty and Warranty Terms
We offer 5 years warranty on the condition of the light be used under the normal environment and suitable maintenance and storage. We provide the repair, exchange(the components and parts)or replace the new item for your options. Any abnormal using within warranty or exceeding the guarantee time, appropriate cost for the material and the labor should be charged.

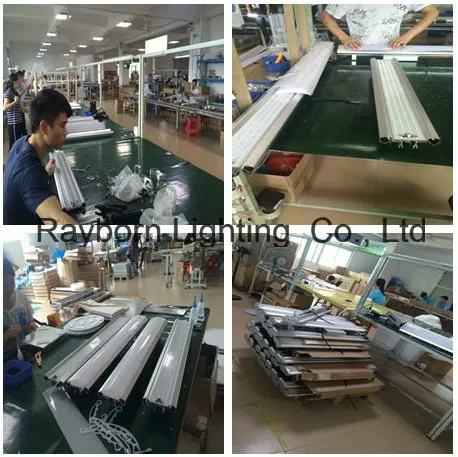

Company Information
1. Rayborn Lighting Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.
2. We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
3. With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.
4. We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
FAQ
Q1. What is the main business of Rayborn Lighting?
A: Rayborn focus on LED home lighting products from 2008 till now. Rayborn is the top
suppliers of led indoor and outdoor lighting fixtures. Especially focus on LED panel light,led
tube light, led downlight and so on. Outdoor lighting focus on led floodlight, led street light,etc.
Q2. What is the warranty of Outdoor LED Lighting?
A : Rayborn outdoor LED Lighting offer 3~5 years warranty depending on different types.
Q3. What is the payment term?
A: For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk
order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order. L/C is negotiable.
Q4. Can I add my logo on the led Lighting label?
A : Yes,our led lighting can print customer's logo on inner and outer carton.
Q5. What kind of certificates Rayborn Got?
A: Rayborn led light got CE,EMC,LVD,ROHS,FCC,C-tik,SAA Certification.
Price can be negotiable. We warmly welcome you to take some samples to test quality first.
Should you have any interest or further questions, please feel free to contact me at any time.
Looking forward to having a chance to cooperate with you.
Item No.: RB-LHB-120W
Input Voltage: AC 100~277V 50-60HZ
Power Factor: >0.98; Power Efficiency: >0.90
LED Luminous Efficiency: 130lm/W
LED High Bay Light Power Consumption: 125W
ED Chip: 3030
Lamp Beam Angle: 120 degrees
Color Index: Ra≥ 80
Color Temperature: 2700-7000K
Operating temperature: -40~50
Protection Class: IP65
Lumen: 15500LM
Useful Life: ≥ 50000 hours
Lamp Body Material: Aluminum +PC cover
Color of Housing: Silver
| 120W LINEAR LED HIGH BAY Main Technical Parameters | |||
| Item No.: | RB-LHB-120W | ||
| Input Voltage: | AC 100-277V | ||
| Freqency Range: | 50Hz~60Hz | ||
| LED Chip: | 3030 Chip | ||
| Power Driver: | Meanwell HLG | ||
| Power Factor: | >0.98 | ||
| Power Efficiency: | >93% | ||
| LED Power | 120W | ||
| LED QTY: | 336pcs | ||
| LED Working Voltage: | DC 40~48V | ||
| System Consumption: | 180W | ||
| LED Luminous Flux | Warm White | 14500LM | |
| Pure White | 15100LM | ||
| Cool White | 15500LM | ||
| Viewing Angle: | 120degree | ||
| MaximumIlluminance | Height 3M | 569LUX | |
| Height 4M | 320LUX | ||
| Height 5M | 205LUX | ||
| Illuminance Area | Height 3M | Dia.859CM points visible | |
| Height 4M | Dia.1145 CM points visible | ||
| Height 5M | Dia.1432 CM points visible | ||
| Illuminance Uniformity: | >0.6 | ||
| Color Temperature | Warm White | 3000K~3500K | |
| Pure White | 4500K~5500K | ||
| Cool White | 6000K~6500K | ||
| Color Rendering Index | Ra>80 | ||
| Light Distribution: | LED points visible | ||
| LED Junction Temperature: | ≤115ºC | ||
| Working Temperature: | -35ºC~55ºC | ||
| IP Grade: | IP65 | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0 mm2 three line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| Certificate | CE /ROHS | ||
| Size: | 900*150*67mm | ||
Details of linear led high bay light:
120W linear Led High bay light Features:
1. Adopting 3030 /Samsung 5630 chips, Meanwell HLG driver.
2. 2ft/ 80w, 3ft/ 120w, 4ft/ 150w, 5ft/ 200w
3. Overall aluminum stretching, beautiful shape, clear & milky cover.
4. High luminous efficiency 110lm/w-140lm/w.
5. Various view angle: 30/60/90/70*140/120Deg.
6. Better heat dissipation than traditional high-bay light.
7. IP65 design, suitable for indoor/outdoor, damp/wet locations.
8. Long lifetime, up to 50,000 hours with 5 years warranty.
9. 70%-80% energy-saving compared with traditional tube T8 Light.
10. Solid-state, high shock/vibration resistant.
11. No RF interference, No mercury or other hazardous materials, low power consumption, high intensity.
Testing of 120w linear led high bay light:
All our LED high bay lights will be tested before shipping,such as current and function test, earth conncet test, temperature test, light distribution test, vibration test, integrating sphere test, salt spray test, and aging test, so that we can ensure the quality and light performance.Because we must be responsible to our customers.
Packaging of LED 120w linear led high bay lights
| Item | Carton Size | Packaging | Gross Weight |
| 0.6M 80W/100W linear highbay light | 67*29*48cm | 4pcs/carton | 18KG |
| 0.9M 120W linear highbay light | 97*29*48cm | 4pcs/carton | 24KG |
| 1.2M 150W linear highbay light | 127*29*48cm | 4pcs/carton | 30KG |
| 1.5M 200W linear highbay light | 157*29*48cm | 4pcs/carton | 35KG |
Installation and Application:
1. Instead of the fluorescent lights indoors
2. School / Universities / Hospital
3. Conference / Meeting room / Show Room
4. Commercial establishments
5. Factories / Offices
6. Super-markets
7. Residential / Institution buildings
8. Government lighting engineering, airport, subway, elevated overpass, billboard stadium,
9. Building external walls landmarks such as the landscape lighting
Shipping of led high bay lights: By sea,air,express (DHL,FedEX,UPS,TNT etc.)
1. Big quantity advised to be shipped by sea.
2. Samples advised to be shipped by express.
3. Small quantity advised to be shipped by air.
Varies services can be provided to you.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. OEM or ODM service is welcome.
3. Professional service from well-trained and experienced staffs is customers' best choice to secure good communication, on time delivery, reliable warranty etc.
4. For all your inquires about us or our products, we will reply you in details within 24 hours.
5. Convenient and smooth communication.
6. Detailed and professional specifications and guidances of products.
7. Your requirements and complaints are highly respected.
8. Lighting solutions by professional technician.
9. Fast &Cheap Delivery.
10. Free Light study.
11. Various Certificates.
12. Product Update.
Trade terms
1. Payment: T/T, L/C and paypal are available.
2. Lead time: Sample Order: 5-7 working days. Bulk Order: 10-15working days.
3. Package: 4 pcs /carton or as your custom package.
4. Shipping freights are quoted under your requests.
5. Shipping port: Shenzhen port
6. Discounts are offered based on order quantities.
Warranty and Warranty Terms
We offer 5 years warranty on the condition of the light be used under the normal environment and suitable maintenance and storage. We provide the repair, exchange(the components and parts)or replace the new item for your options. Any abnormal using within warranty or exceeding the guarantee time, appropriate cost for the material and the labor should be charged.
Company Information
1. Rayborn Lighting Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.
2. We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
3. With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.
4. We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
FAQ
Q1. What is the main business of Rayborn Lighting?
A: Rayborn focus on LED home lighting products from 2008 till now. Rayborn is the top
suppliers of led indoor and outdoor lighting fixtures. Especially focus on LED panel light,led
tube light, led downlight and so on. Outdoor lighting focus on led floodlight, led street light,etc.
Q2. What is the warranty of Outdoor LED Lighting?
A : Rayborn outdoor LED Lighting offer 3~5 years warranty depending on different types.
Q3. What is the payment term?
A: For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk
order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order. L/C is negotiable.
Q4. Can I add my logo on the led Lighting label?
A : Yes,our led lighting can print customer's logo on inner and outer carton.
Q5. What kind of certificates Rayborn Got?
A: Rayborn led light got CE,EMC,LVD,ROHS,FCC,C-tik,SAA Certification.
Price can be negotiable. We warmly welcome you to take some samples to test quality first.
Should you have any interest or further questions, please feel free to contact me at any time.
Looking forward to having a chance to cooperate with you.
