Product Description

Customized Supermarket Indoor LED Linear Line Trunking System Pendant Light

Led Linear Trunking System Light Specifications
Rail Size	1140MM		1424MM
Power	35W	55W	55W	70W
Dimension(LDH)	11406880MM		14246880MM
Light effect	140-150LM/W
LED chip	2835
CRI	>80Ra
CCT	2700K-6500K
Function	Emergency/0-10V Dimmable/DALI Dimmable/Track rail module for option

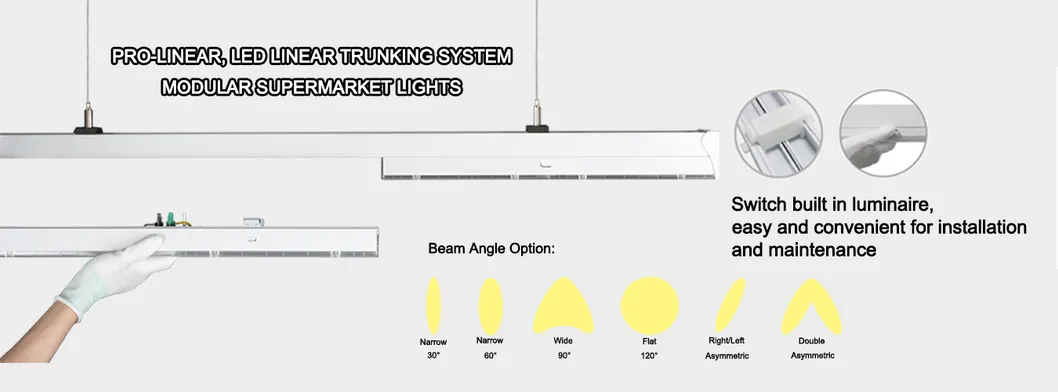

Beam Angle	30°,60°,90°,120°,Right/Left Asymmetric,Double Asymmetric
Wire	3 wire/5 wire / 7 wire / 11 wire
Housing	Pure Aluminum
Lifespan	50000hours
Certificate	CE,ROHS,LVD,EMC,
Warranty	5 years

The perfect continuous LED linear solution for industry, commercial and other applications.

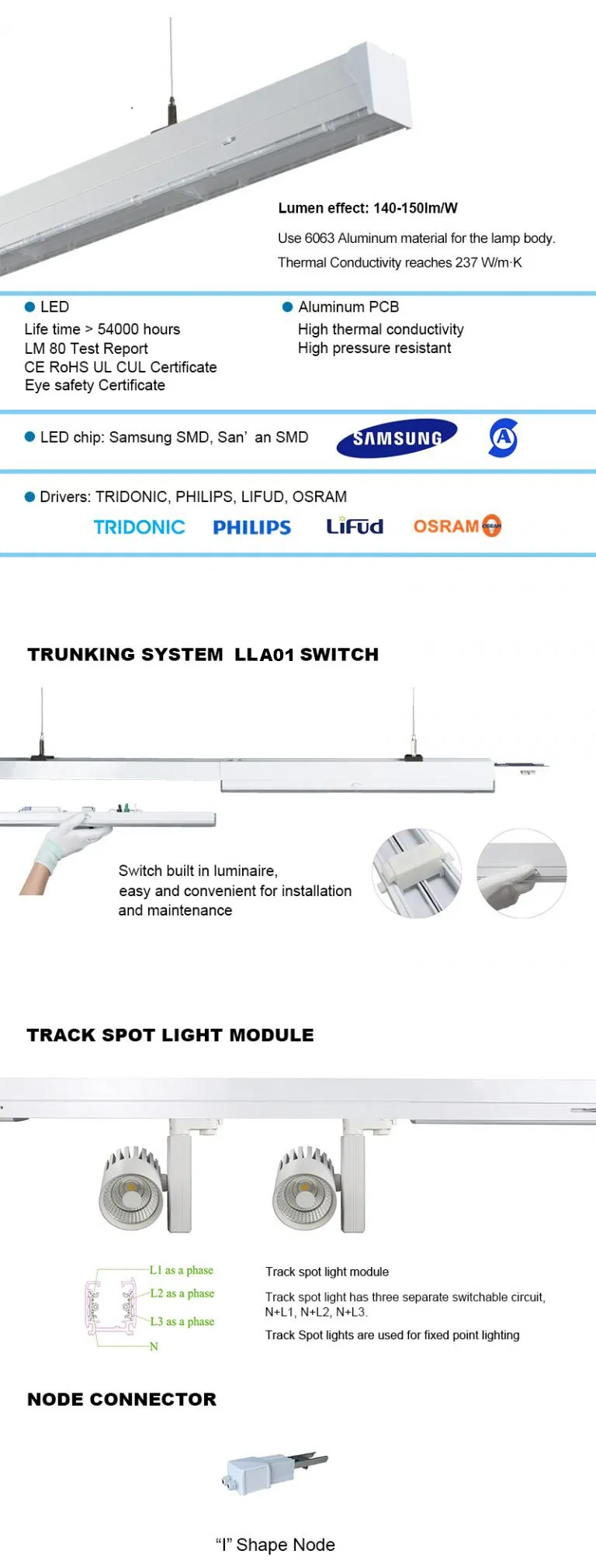

Linear Trunking System LA01 series is not a simple light, it is a integrated lighting solution.With its advantages of energy-effciency, low maintenance costs and convenient installation, it is an ideal alternative to traditional linear fluorescent lights in a varriety of industral and commercial applications. Lighting System is a modular concept consisting of trunking rails, luminaire inserts and accessories.

The LLA01 trunking system for challenging lighting demands in all applications. With fully compatible modular kit, it adapts individually to complex lighting tasks. All functions such as power supply and lighting control are integrated into this multi functional trunking. Luminaires can be positioned flexibly
and the system can be adapted to suit structural alterations at any time. The trunking rail is simply a matter of replacing or adding lighting modules, light sources or optics as required.
We use 6063 Aluminum material for the lamp body. Thermal Conductivity reaches 237 W/m·K

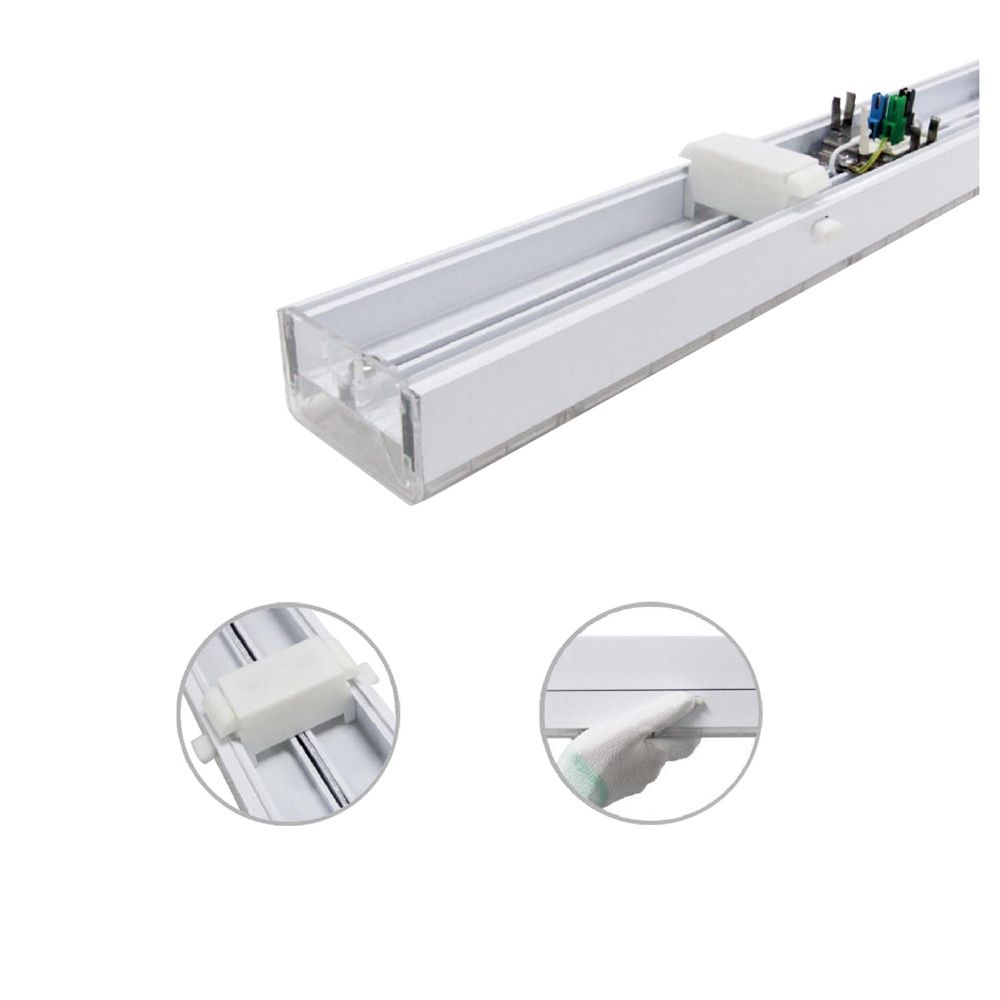

1. TRUNKING RAILTrunking rail is standard with 3, 5, 7 or 11 cores through-wiring with 2.5mm² cable
cross-section. Separate power supplies, dimming or emergency supply can be integrated with the 7 cores wiring.

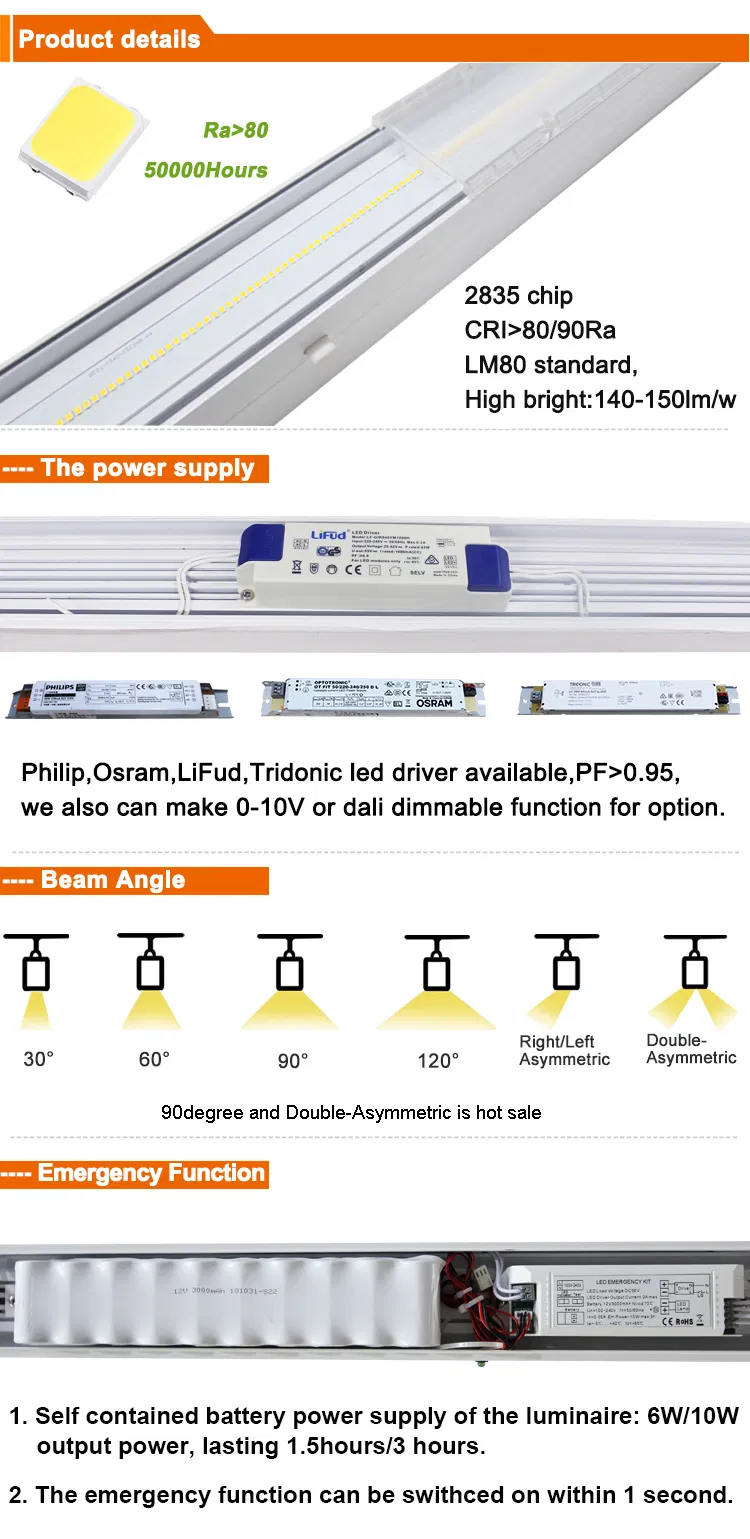

2. LIGHT SOURCEThe fitting is designed to operate a range of LED' s up to 75W. 2835 SMD.

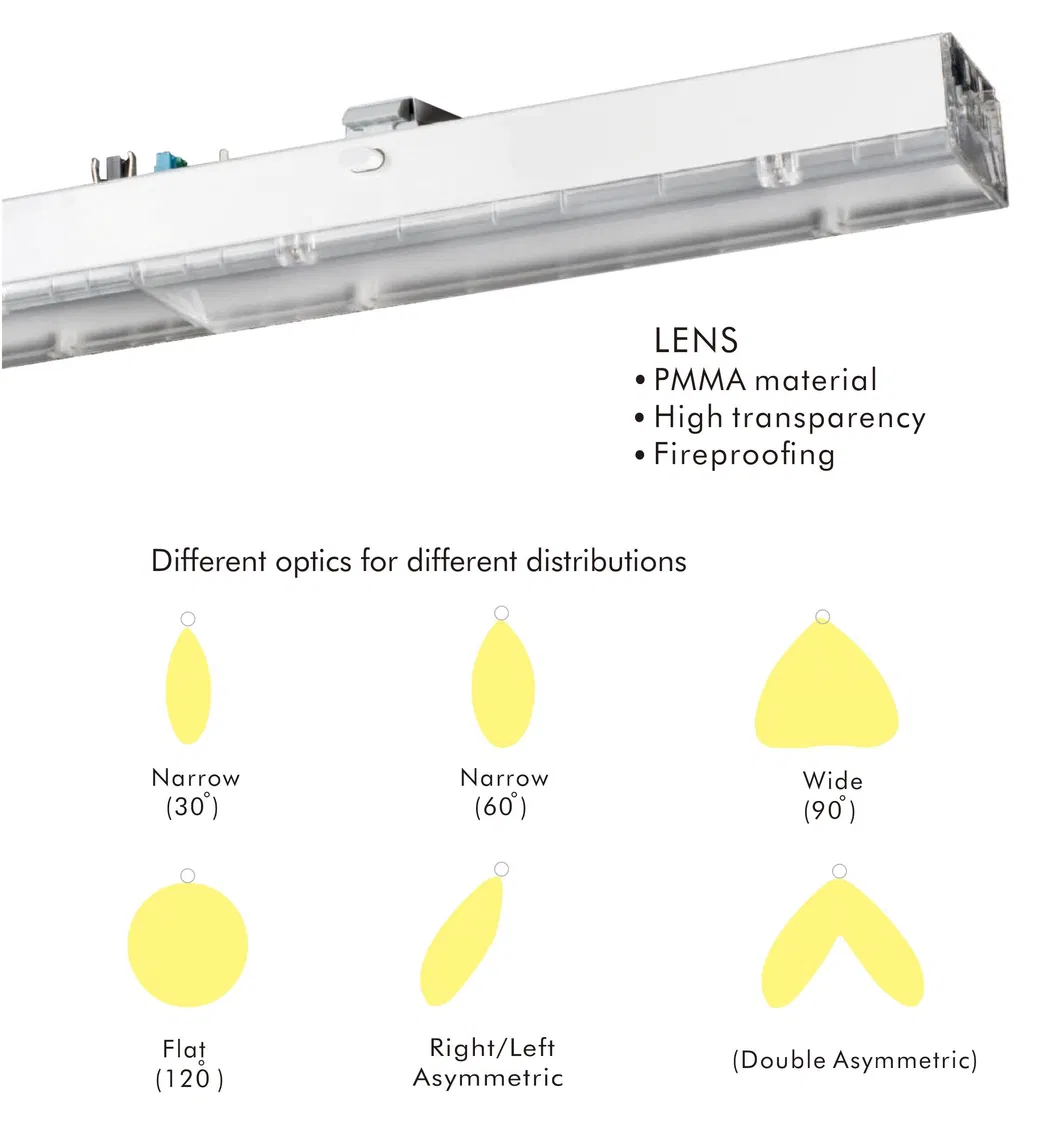

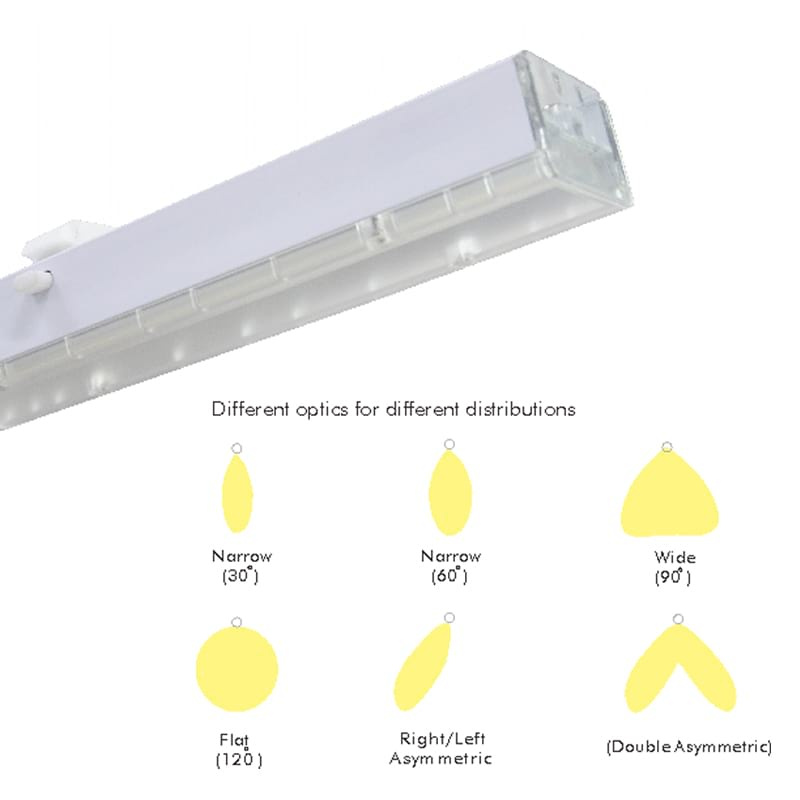

3. OPTICSNarrow, wide distribution, right/left/double asymmetric available.

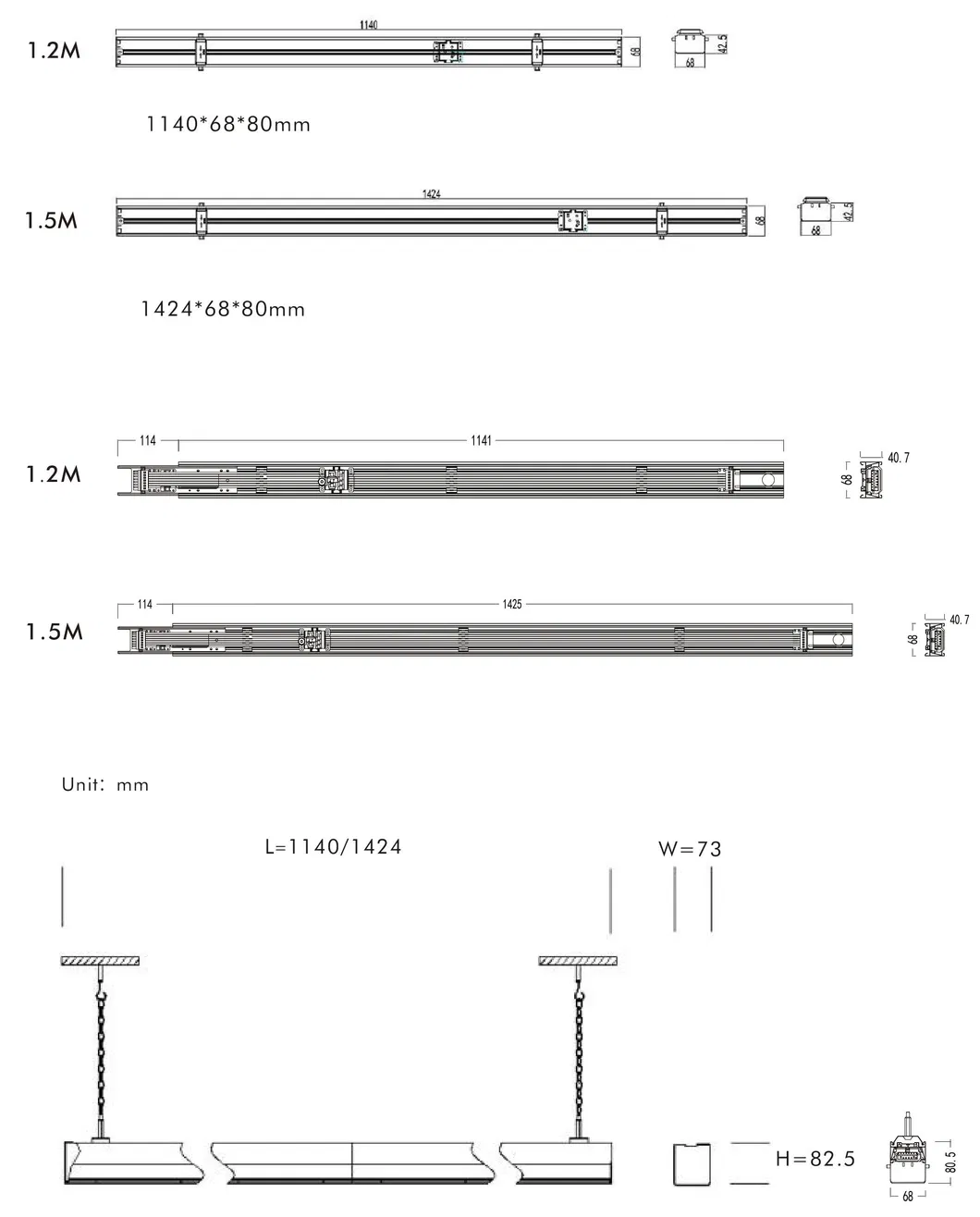

4. DIMENSIONS1140mmx68mmx80mm /1424mmx68mmx80mm.

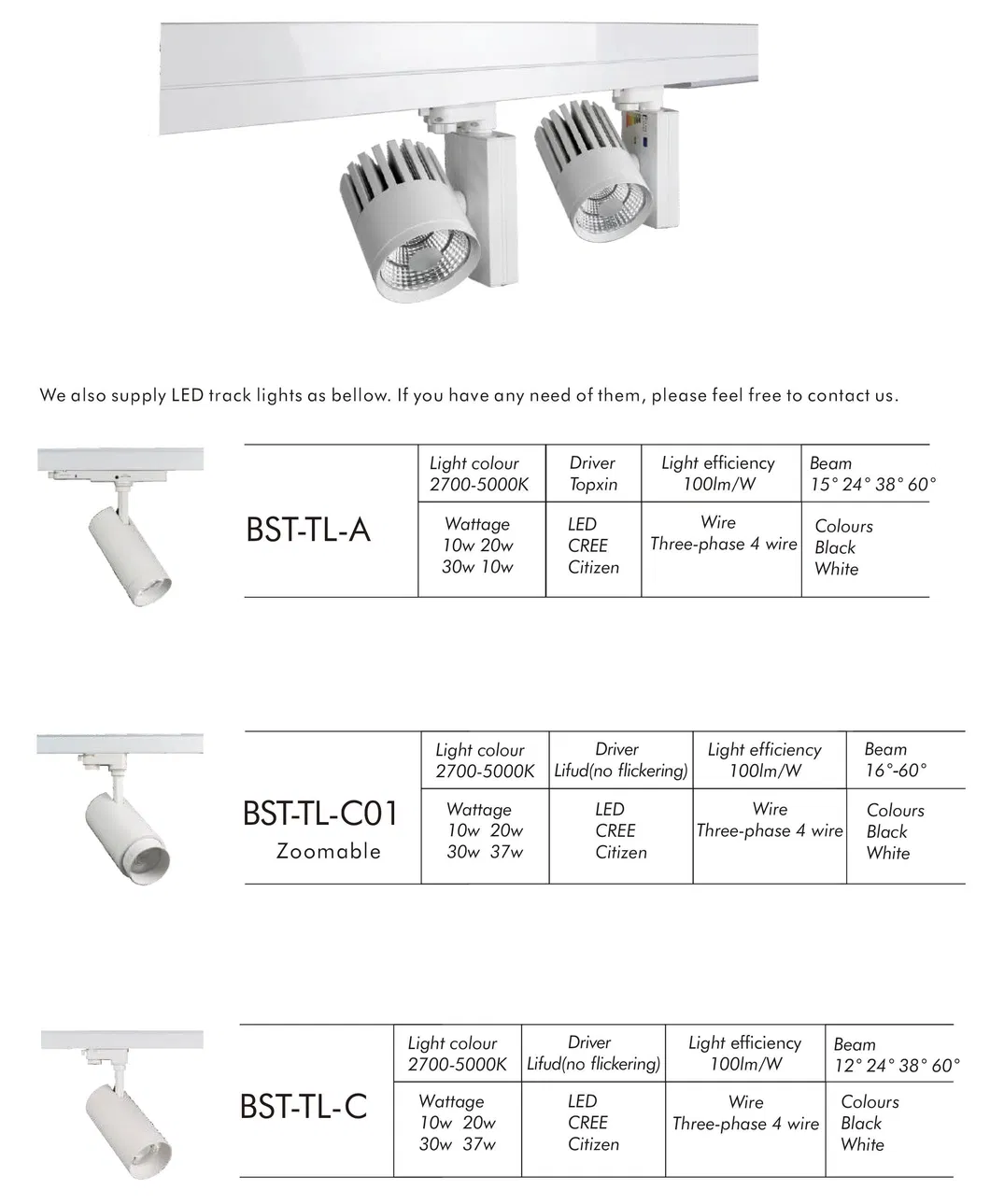

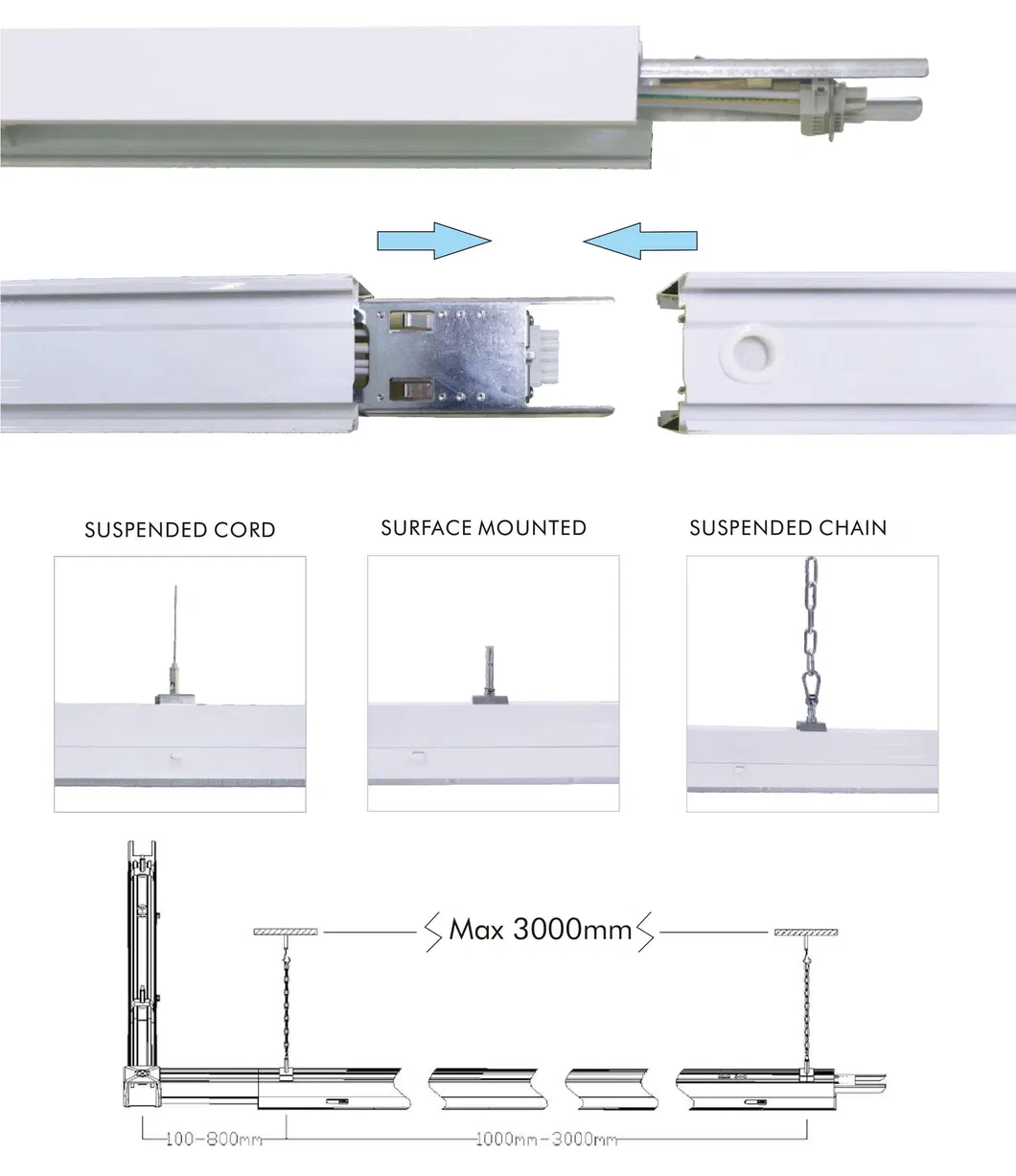

5. MOUNTINGSuspended or surface mounted. cord hanger, ceiling mounting clip track spot light.

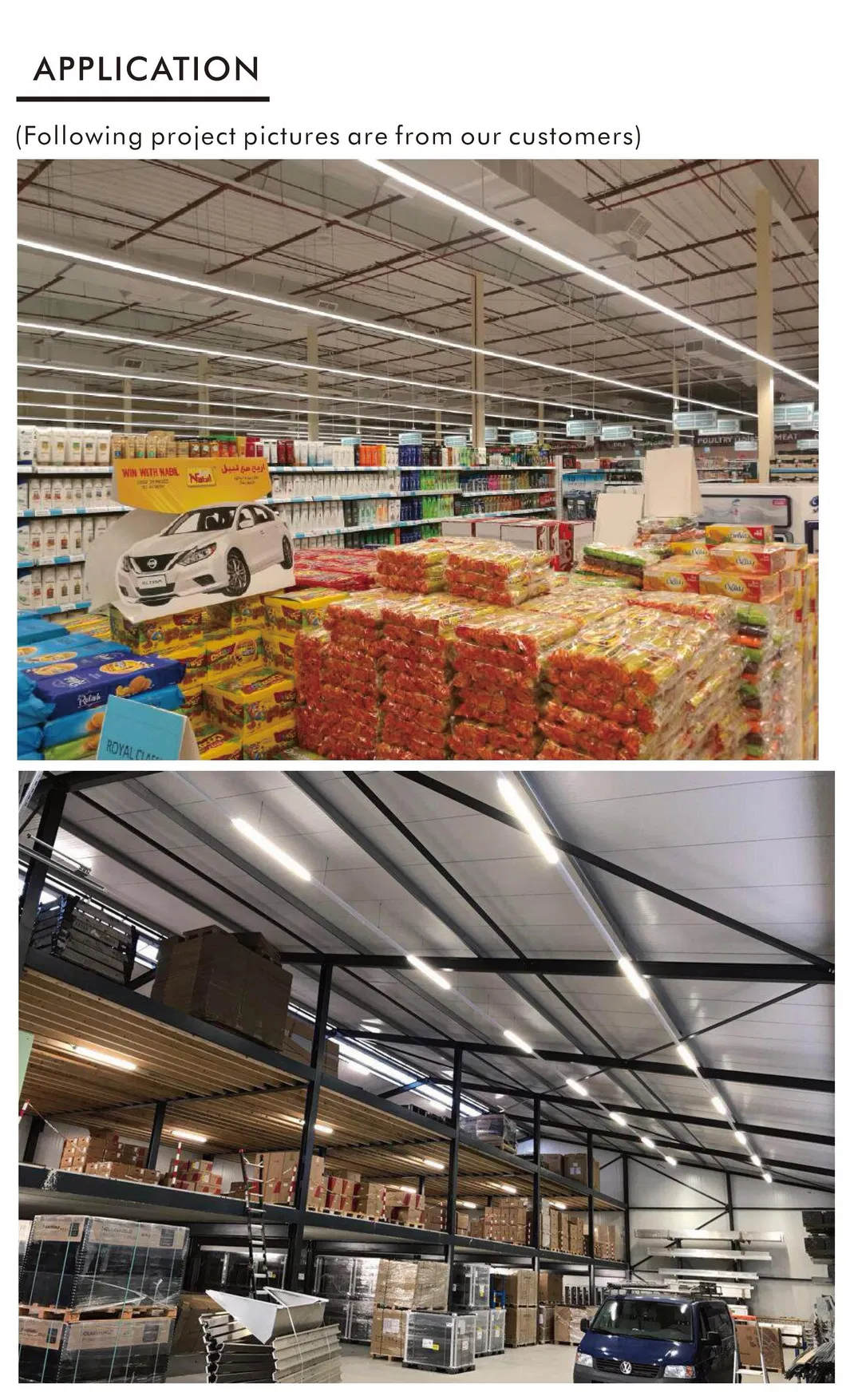

6. APPLICATIONSuitable for indoor use only.

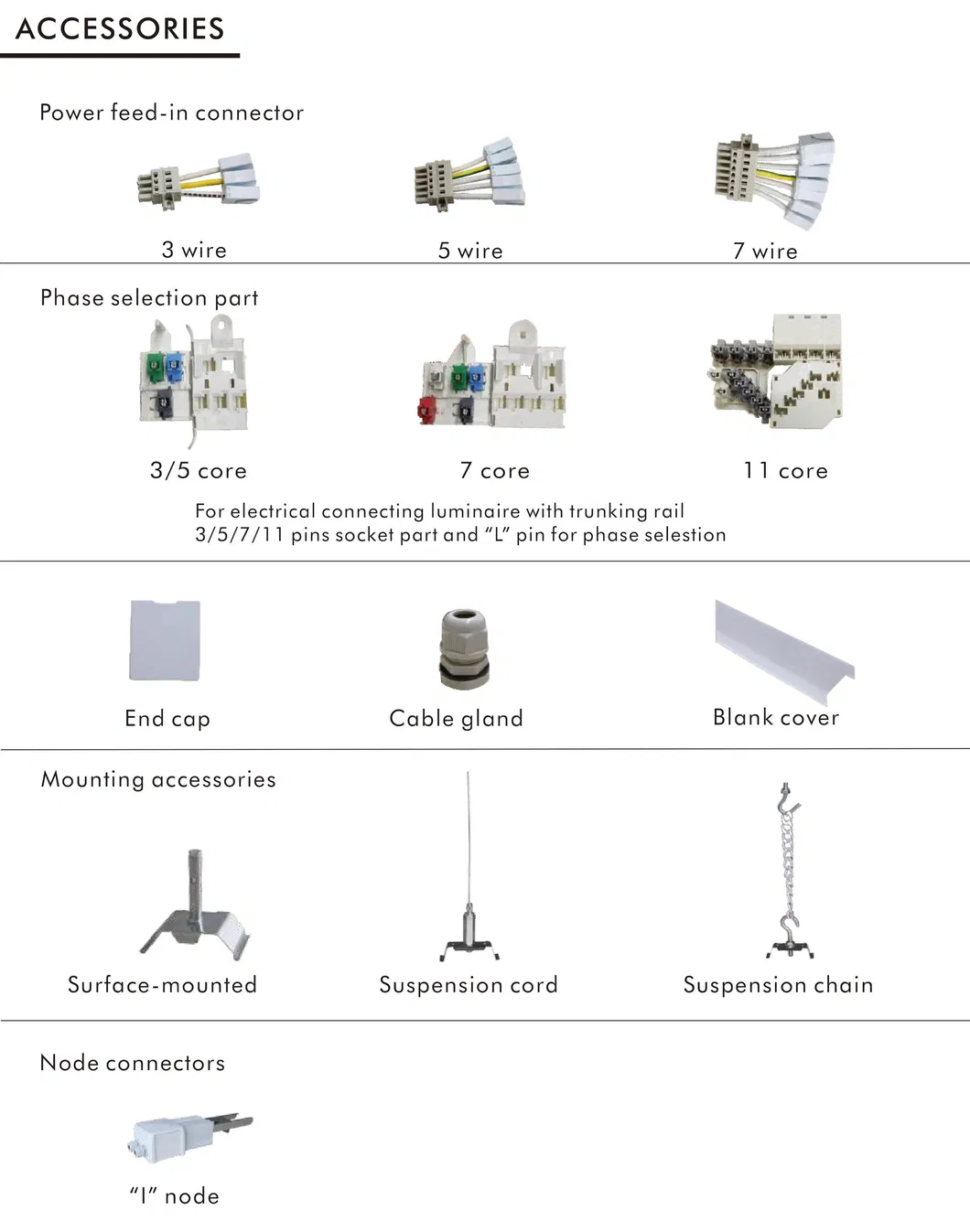

7. Accessories

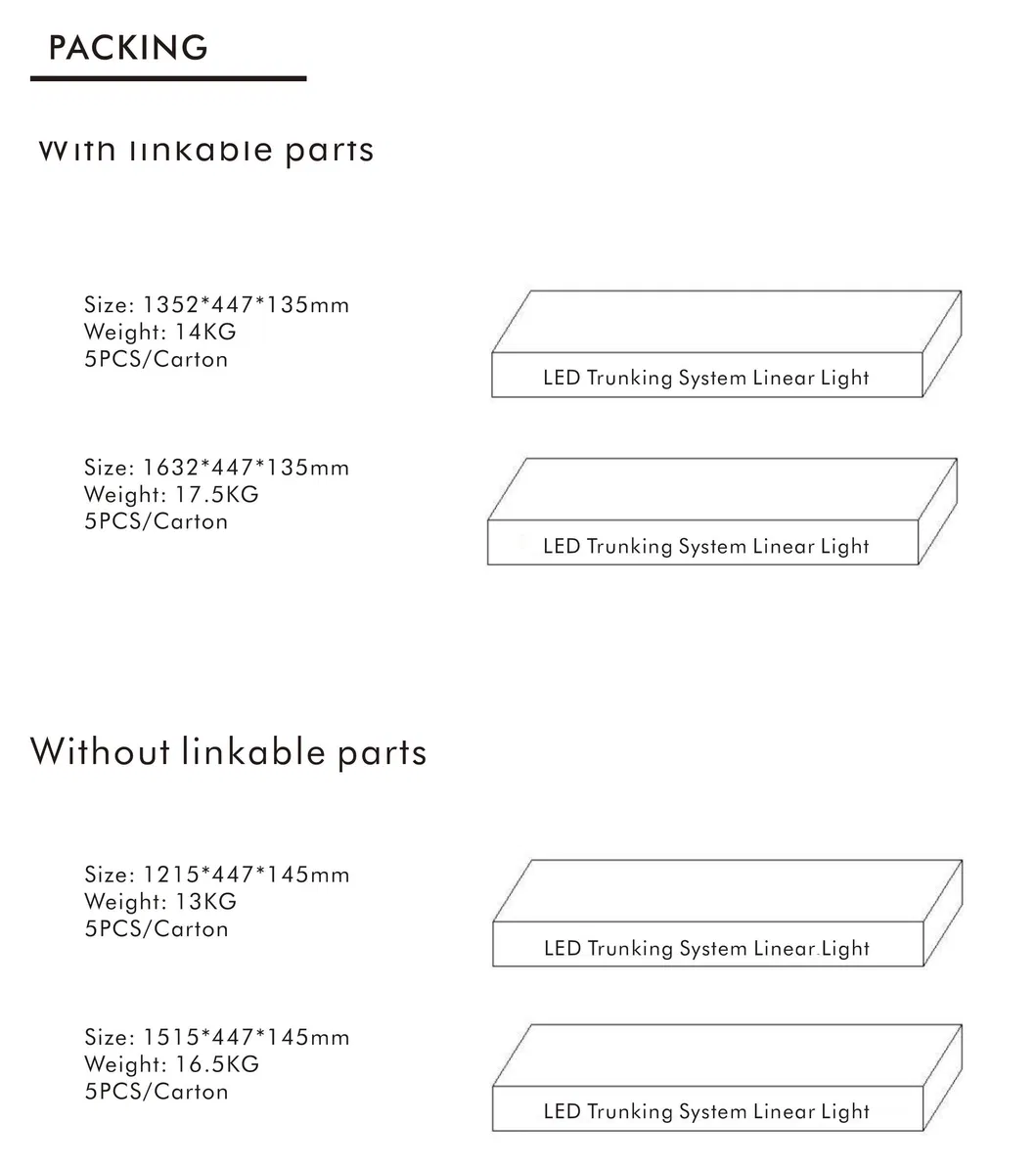

8. Packing

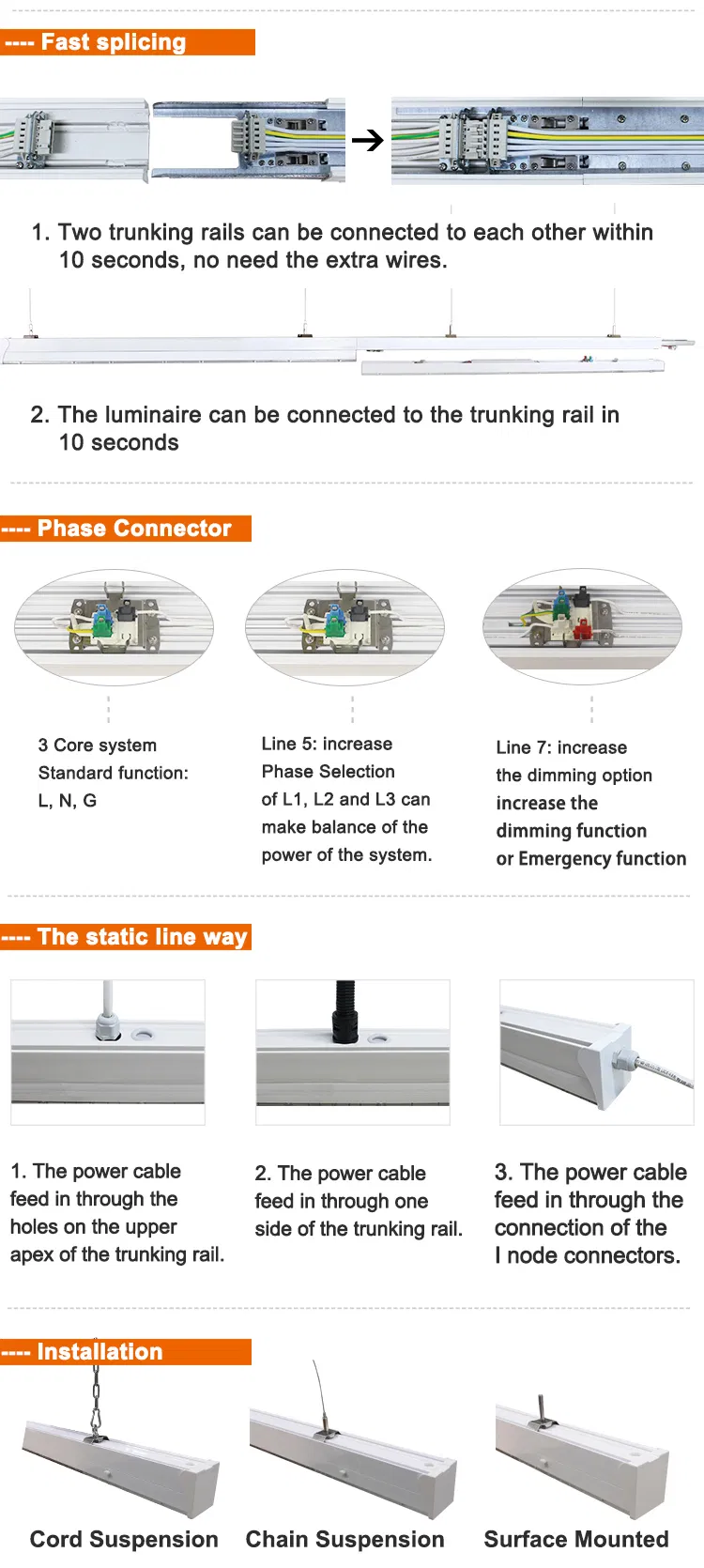

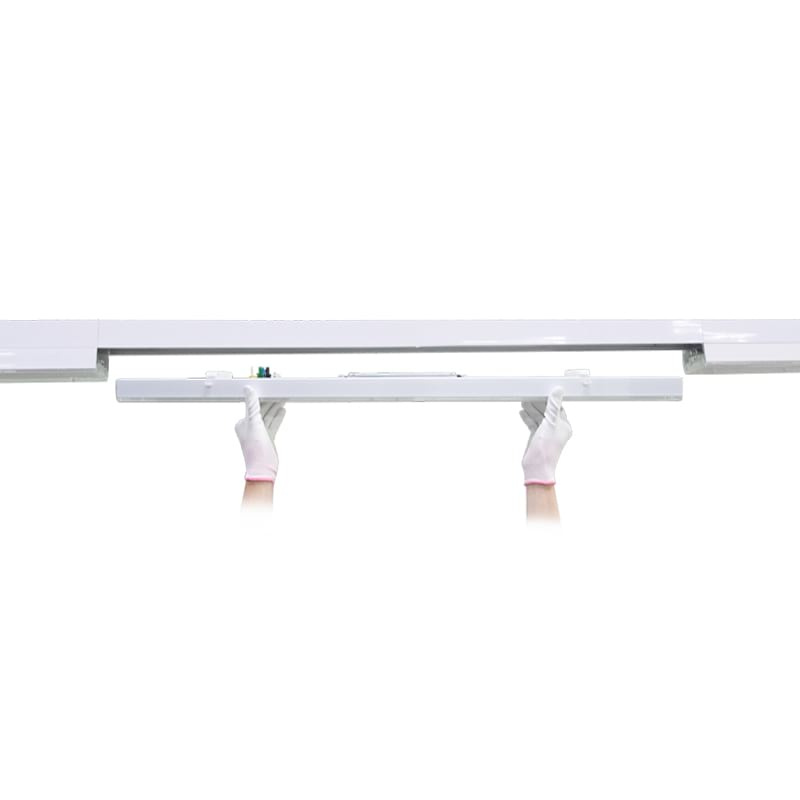

The cable in the trunking with pre-assembled connectors makes it possible to join trunking units without any tools, 3 circuit pre-selection via moving of contact pin prior to installation in rail.

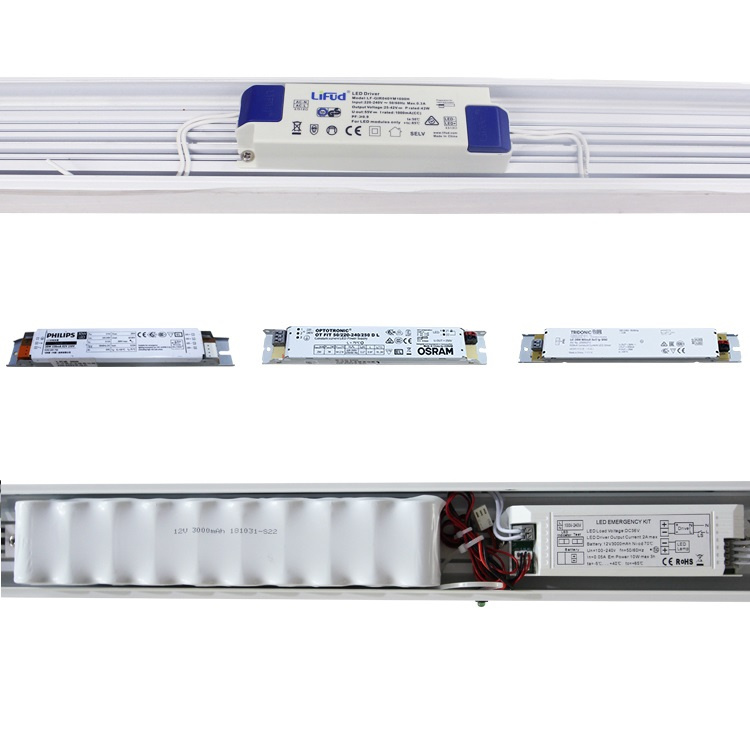

Eergency Lighting Function:

1. Built-in battery:1800mAh/3600mAh(NiMH).

2. External emergency supply: generator, central UPS.

3.5mm² cable carrying 16A, we can run maximum 65 meters of continued luminaire under 220V AC with 70W 1424mm lumiaires each.

For instance, total power of circuit: P=UI=220VX16A=3520W. Total quantity of lumiaire it could bear 3520W/70W=50units.
Total length:1.4x50≈70meters.

LA01 series	Length	Wattage	CRI	Colour Temp	Luminous Flux
	1140mm	35W/50W	>80Ra	2700-6500K	4900lm/7000lm
	1424mm	35W/50W/70W			4900lm/7000lm/9800l

All system components, trunking rail and luminaire inserts are perfectly matched. Modules can be positioned in the rails with randomly dened distances according to system dimensions for both trunking rail and individual luminaire installations.

With a color rendering index of Ra>80, Color temperatures of 2700K, 3000K, 4000K, 5000K, 5700K and 6000K, it could meet environmental requirements for energy-efficient building and lighting solutions.

For special applications where requests high accuracy of color, such as in museum, printing factory and so on, CRI95 linear series is highly recommended.
