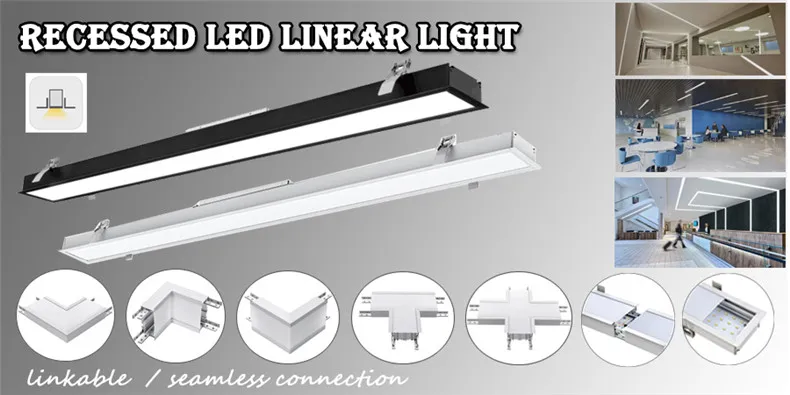

Recessed Aluminum Profile Office 1200mm 40W LED Linear Light
Recessed aluminum profile office 1200mm 40w LED linear lightSpecifications:ModelEN-7035-LE20W06EN-7035-LE40W12EN-7035-LE60W18EN-7035-LE80W24Input voltageAC185-265VAC185-265VAC185-265VAC185-265VWattage20W40W60W80WBeam angle120°120°120°120°LED chipEpistar SMD 2835 - 126......
Send Inquiry
Product Description
Recessed aluminum profile office 1200mm 40w LED linear light
Specifications:
| Model | EN-7035-LE20W06 | EN-7035-LE40W12 | EN-7035-LE60W18 | EN-7035-LE80W24 |
| Input voltage | AC185-265V | AC185-265V | AC185-265V | AC185-265V |
| Wattage | 20W | 40W | 60W | 80W |
| Beam angle | 120° | 120° | 120° | 120° |
| LED chip | Epistar SMD 2835 - 126pcs | Epistar SMD 2835 - 252pcs | Epistar SMD 2835 - 378pcs | Epistar SMD 2835 - 504pcs |
| Luminous Efficiency | 2100LM | 4200LM | 6300LM | 8400LM |
| CRI | >80 | >80 | >80 | >80 |
| CCT | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K |
| Working Temperature | 0ºC- +50ºC | 0ºC- +50ºC | 0ºC- +50ºC | 0ºC- +50ºC |
| Material | Aluminum +PC | Aluminum +PC | Aluminum +PC | Aluminum +PC |
| Dimension | L620*W70*H35mm | L1215*W70*H35mm | L1810*W70*H35mm | L2405*W70*H35mm |
| Hole Size | L605*W55*H60mm | L1200*W55*H60mm | L1795*W55*H60mm | L2390*W55*H60mm |

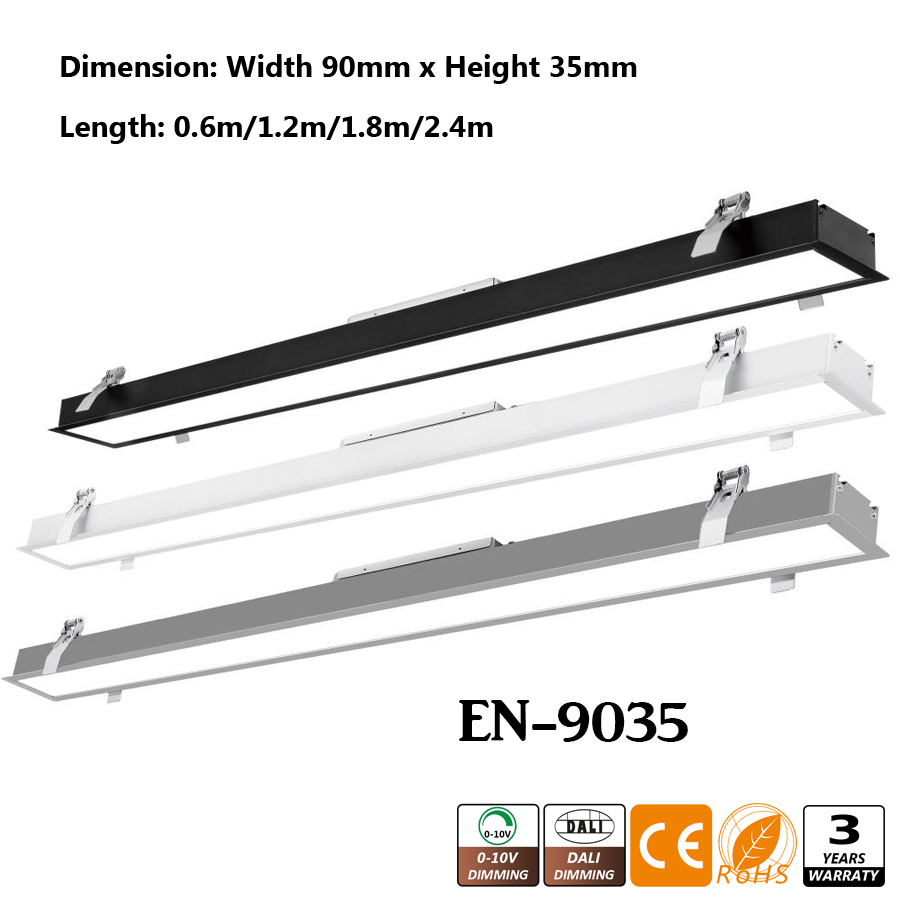

| Model | EN-9035-LE20W06 | EN-9035-LE40W12 | EN-9035-LE60W18 | EN-9035-LE80W24 |
| Input voltage | AC185-265V | AC185-265V | AC185-265V | AC185-265V |
| Wattage | 20W | 40W | 60W | 80W |
| Beam angle | 120° | 120° | 120° | 120° |
| LED chip | Epistar SMD 2835 - 144pcs | Epistar SMD 2835 - 288pcs | Epistar SMD 2835 - 432pcs | Epistar SMD 2835 - 576pcs |
| Luminous Efficiency | 2100LM | 4200LM | 6300LM | 8400LM |
| CRI | >80 | >80 | >80 | >80 |
| CCT | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K |
| Working Temperature | 0ºC- +50ºC | 0ºC- +50ºC | 0ºC- +50ºC | 0ºC- +50ºC |
| Material | Aluminum +PC | Aluminum +PC | Aluminum +PC | Aluminum +PC |
| Dimension | L620*W90*H35mm | L1215*W90*H35mm | L1810*W90*H35mm | L2405*W90*H35mm |
| Hole Size | L605*W75*H60mm | L1200*W75*H60mm | L1795*W75*H60mm | L2390*W75*H60mm |

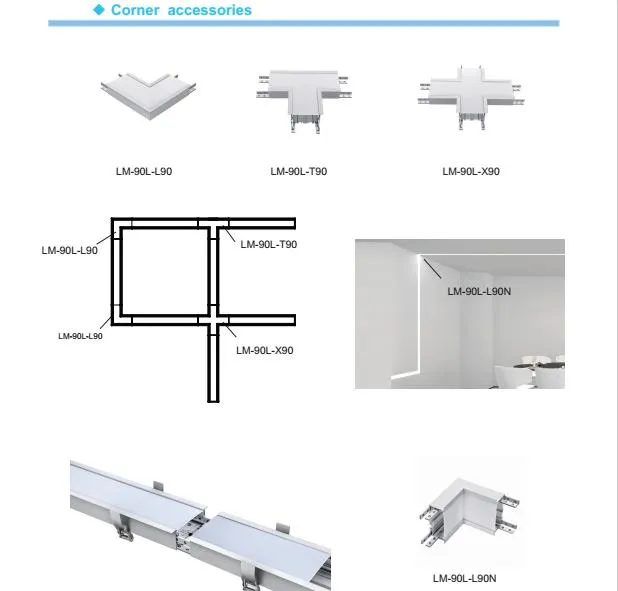

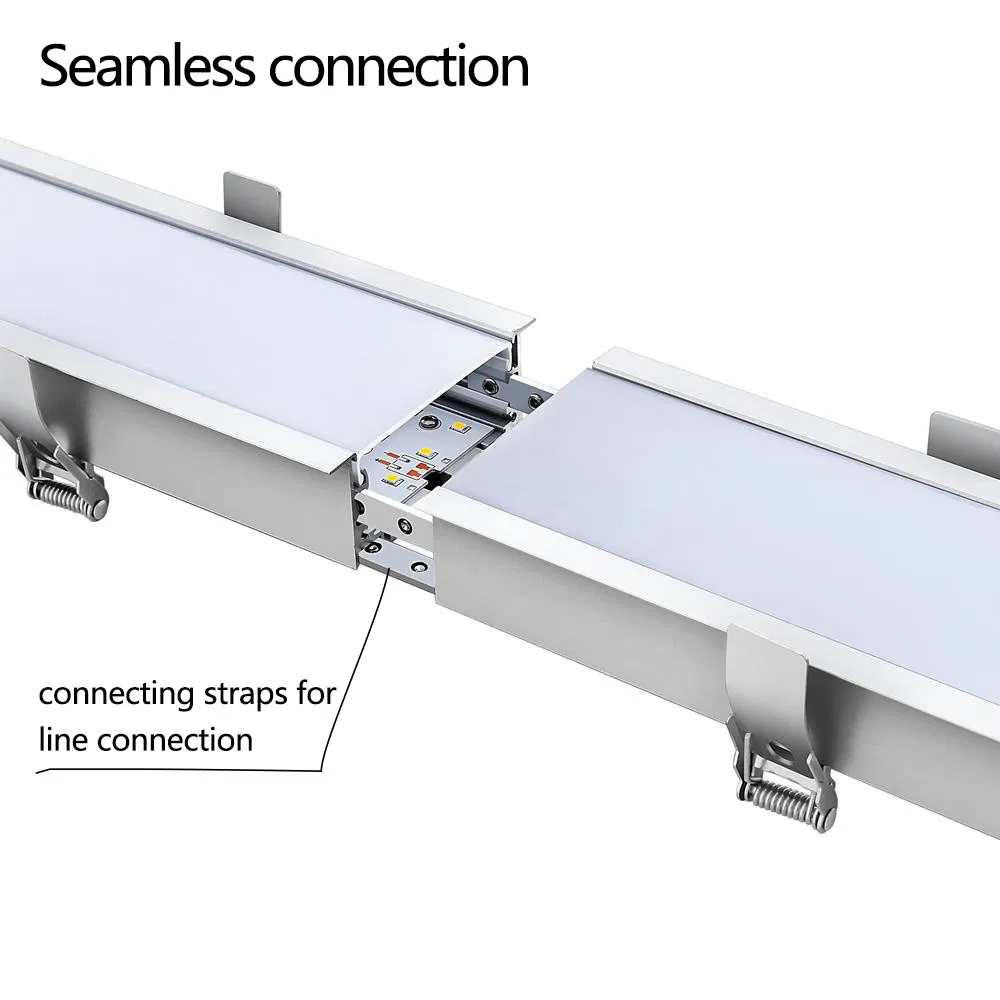

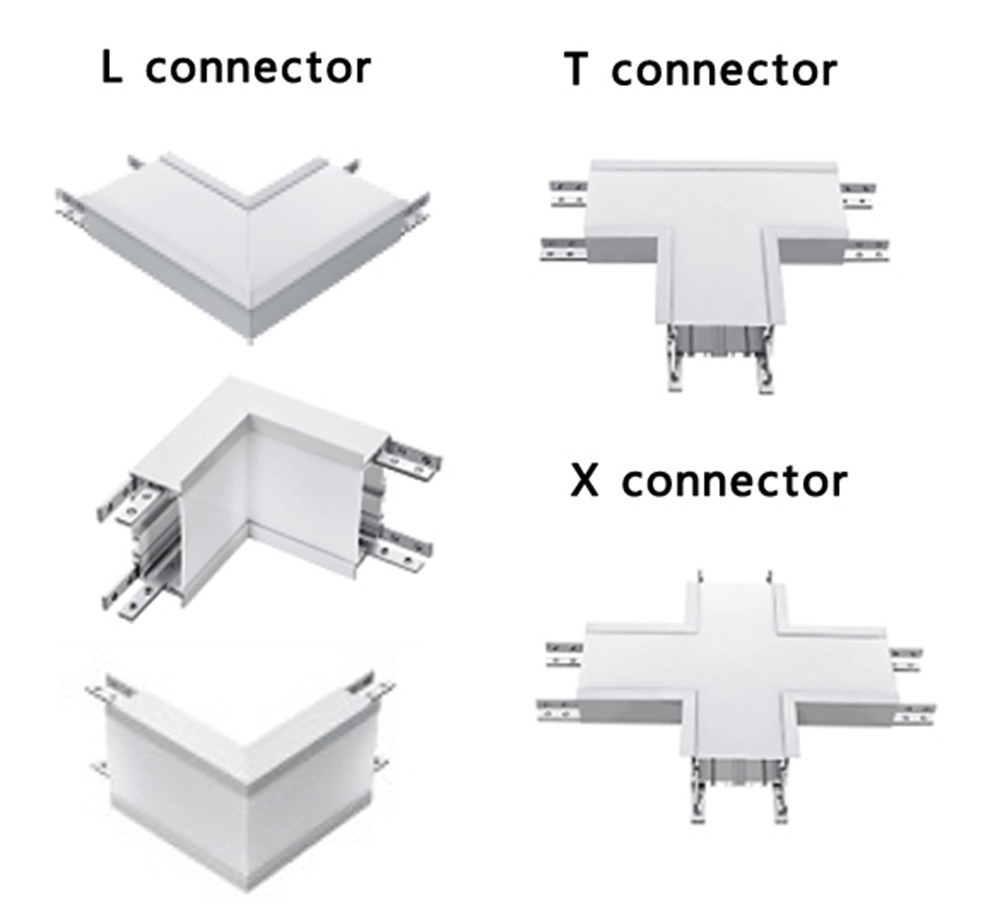

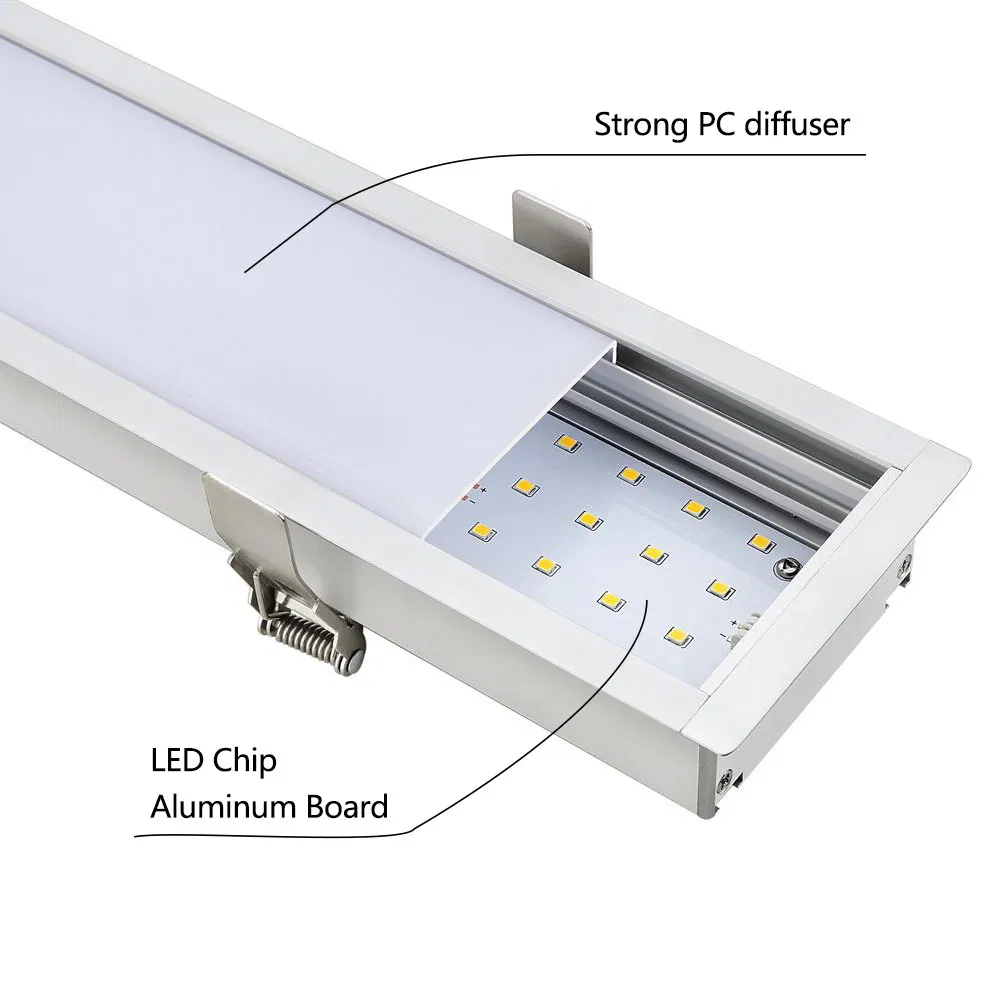

Product view:

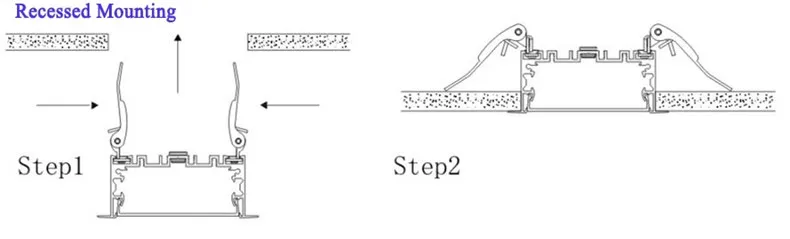

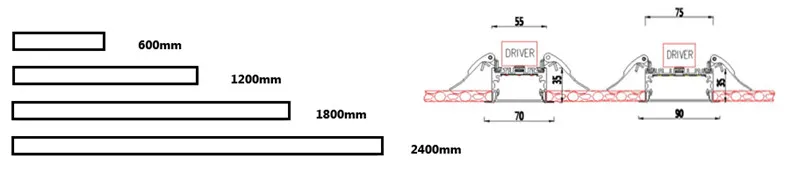

Installation:

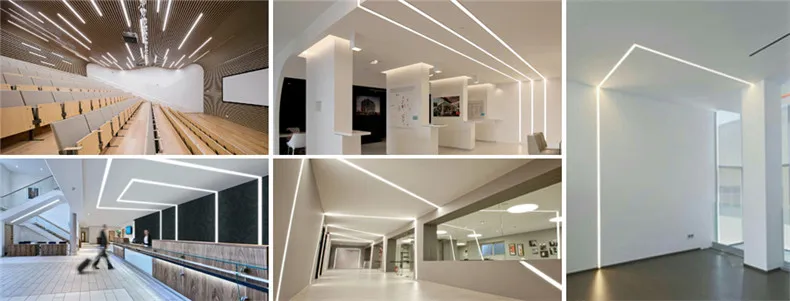

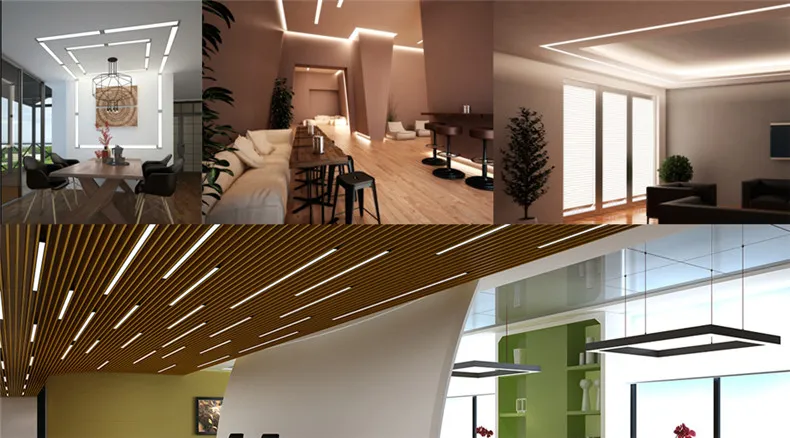

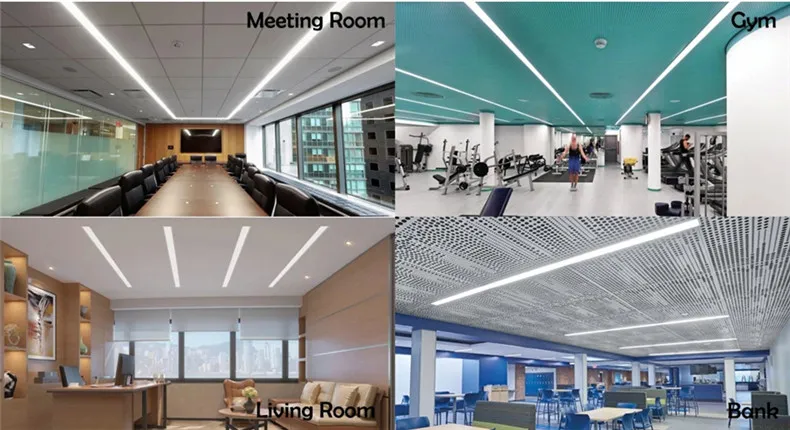

Application:
Widely using both on household lighting and commercial lighting.
Such as office, super market, work shop, school, hospital, bank, warehouse etc.
Enrich Lighting Co., Ltd. is a reliable supplier focus in LED product filed for over 10 years, we are very professional at LED linear aluminum lights, we have helped many customers on their lighting projects and had good feedbacks.
We attend international lighting fair to show our newest products every year.
2017 Hongkong lighting fair:
2018 Dubai Light Trade Show:
2018 Hongkong Lighting Fair:
