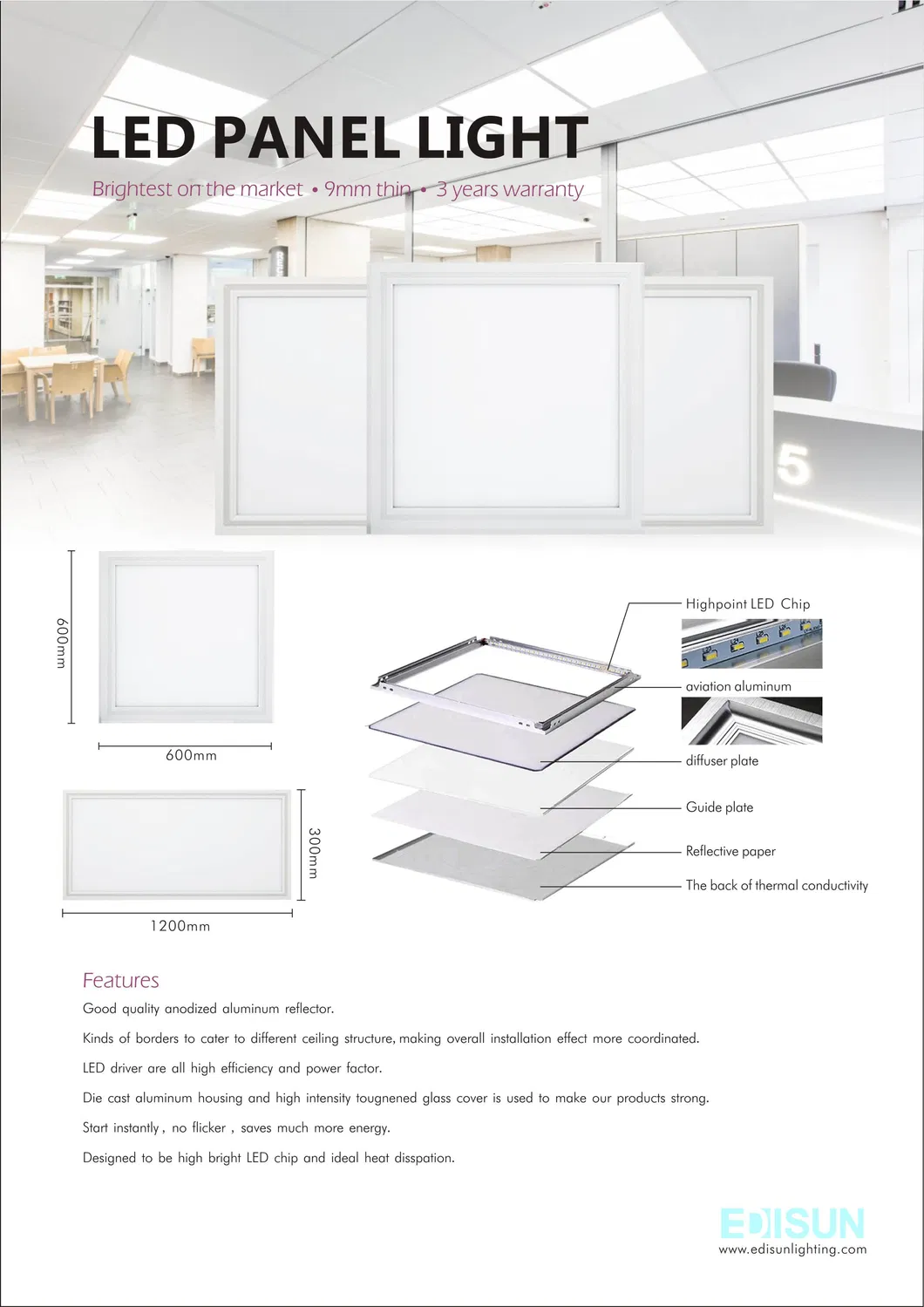

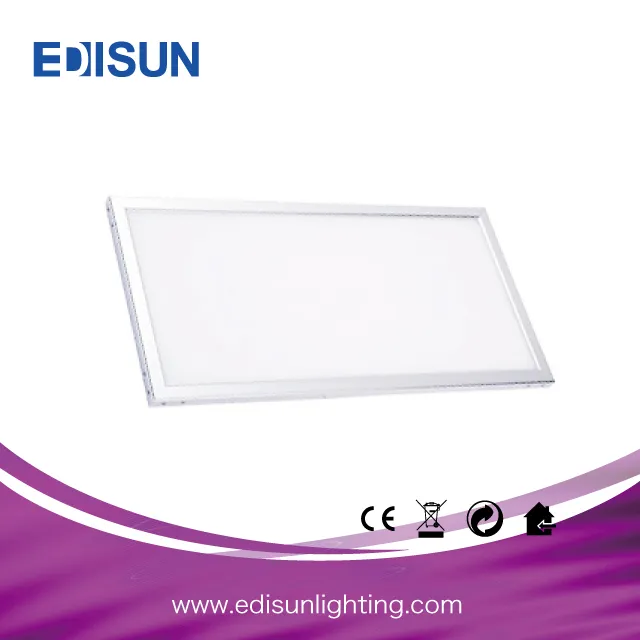

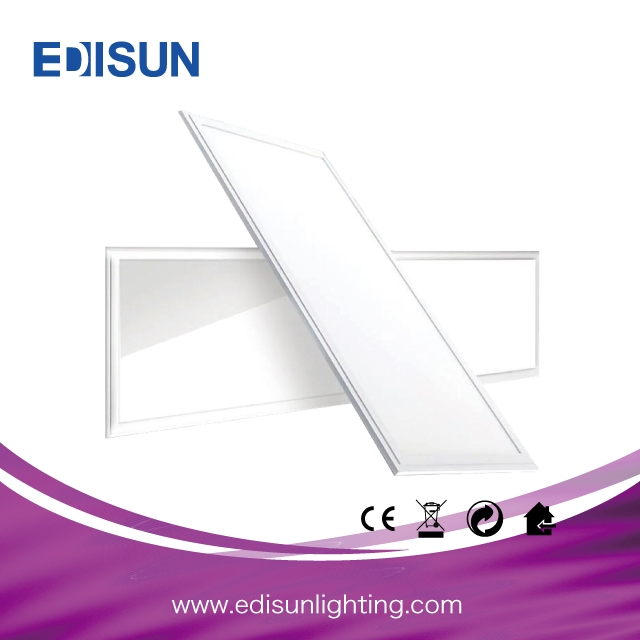

30120 48W LED Ceiling Panel Light
Our Product:Specification of LED Panel1.Size:2x2ft (600x600mm)2.Emergency Power:36W 48W 3.CRI: ≥804.PF:0.9 / 0.55.Input Voltage:AC100-285V6.Lumens:90-100LM/W7.Driver:Lifud8.Dimmable:Available9.Life span:50,000hrs10.Certificates:CE ROHS EMC el No.DS-PL6060-36WDS-PL6060-40WDS-6060-48WPower Cons......
Send Inquiry
Product Description
Specification of LED Panel
1.Size:2x2ft (600x600mm)
2.Emergency Power:36W 48W
3.CRI: ≥80
4.PF:0.9 / 0.5
5.Input Voltage:AC100-285V
6.Lumens:90-100LM/W
7.Driver:Lifud
8.Dimmable:Available
9.Life span:50,000hrs
10.Certificates:CE ROHS EMC
| el No. | DS-PL6060-36W | DS-PL6060-40W | DS-6060-48W |
| Power Consumption | 36W | 40W | 48W |
| Input Voltage | AC180-285V | AC180-285V | AC180-285V |
| Working Frequency | 50/60HZ | 50/60HZ | 50/60HZ |
| Size | 600*600*10MM | 600*600*10MM | 600*600*10MM |
| LED Type | SMD2835 | SMD2835 | SMD2835 |
| LED QTY | 192PCS | 216PCS | 240PCS |
| IP Grade | IP54 | IP54 | IP54 |
| Luminous | 3500LM | 3800LM | 4300MM |
| CRI | >80 | >80 | >80 |
| Brand of Driver | Lifud | Lifud | Lifud |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Certification of Driver | CE TUV SAA | CE TUV SAA | CE TUV SAA |
| working Temperature | -20~+60°C | -20~+60°C | -20~+60°C |
| Warranty | 3 Years | 3 Years | 3 Years |
*** Aluminium frame with good heat conduction.
***Warranty: 3 years
***it has the feature of uniform and smooth light beam, low glare rating, low light pollution, and excel lent protection from eyestrain.
***Green and environmentally-friendly. Healthy beam, without ultraviolet radiation &infrared, no radicalization
***No twinkling: rapid start, steady work, no noise, no twinkling can effectively protect the eyes
***Energy saving: low power consumption, low heat, high level of brightness, uniform light-emitting, energy-saving about 50%
***the range of color temperature:2700K-6500K
***Color rendering index(CRI)is optional , for example we can make Ra>70
***Designed with constant current technology.
***The latest indoor illumination product with comprehensive application
***Easy to install and low cost of maintenance
*** High lumen, low degradation, low heat

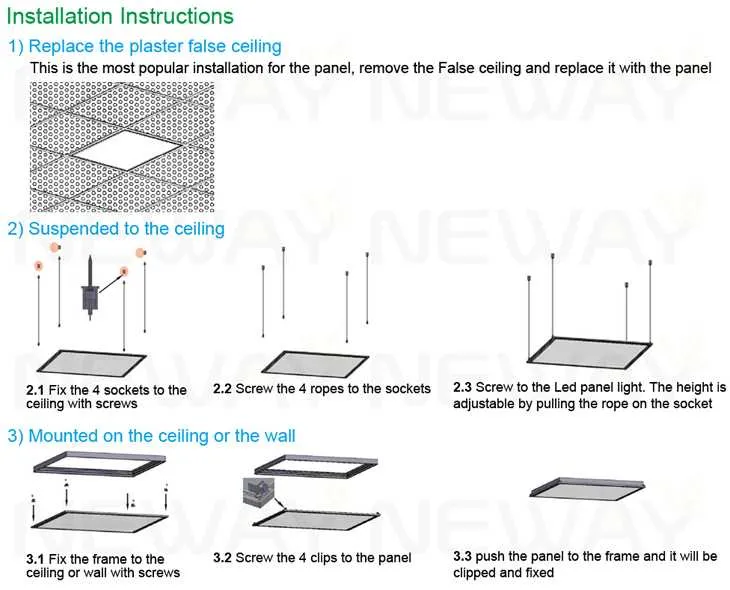

Installation information of LED Panel Light :
1.Please note the power wiring of positive and negative when installation power wiring (positive with word)
2.Connect into the panel lamp terminals power wire needs to tighten with the screw
3.To avoid danger, pls cut off power supply before connecting wiring.
4.Lock the screw, pls not use
Embedded installation of led panel light
1.Taken the ceiling and LED panel light turn 45 degrees, and put it above the ceiling , pls do not force squeezing or through the ceiling
2.please placed panel lamp handled with care, ensure the products shine with the best effect
3.Choose embedded installation LED panel lamp, first consideration that wether the panel light and the size of the ceiling corresponds
Suspension installation of led panel light
1.Pls put a soft mat on the floor before Installing corner fixing parts , lest scratches or damaged panel
2.please placed panel lamp handled with care, ensure the products shine with the best effect
3.Lock the screw, pls not use greatly forcibly, lest crush the panel lamp
1.The first open four φ5mm holes on the ceiling
2.Make the glue plug put into open good holes
3.Screw through fixed cap, locked in plug hole
Instruction of LED Flat panel light:

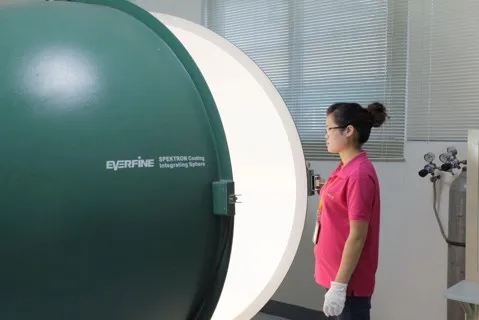

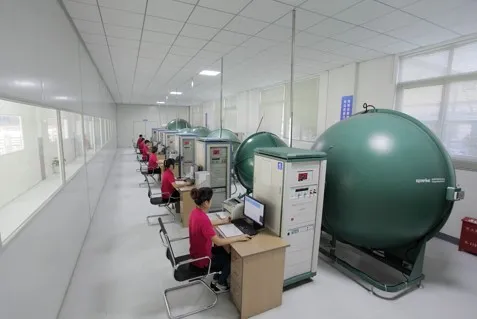

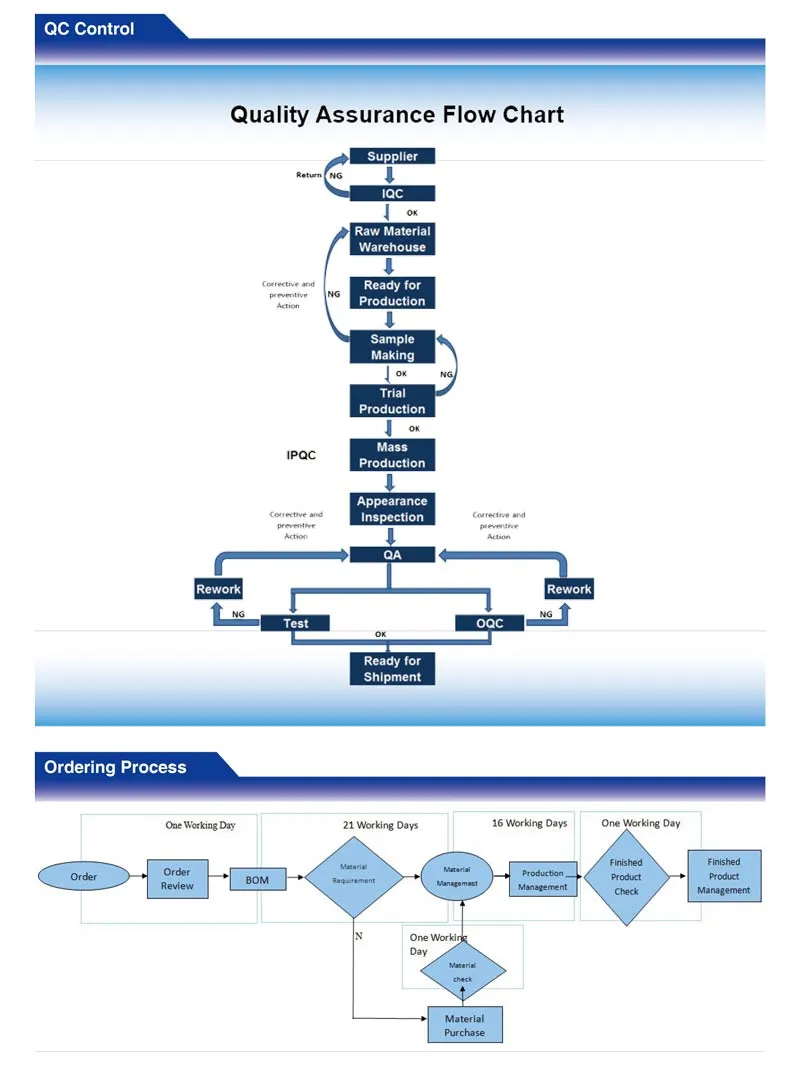

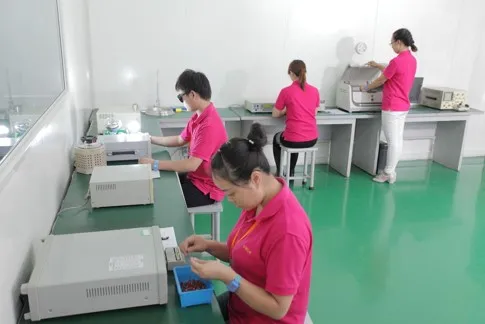

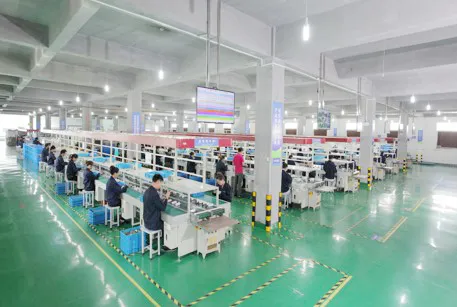

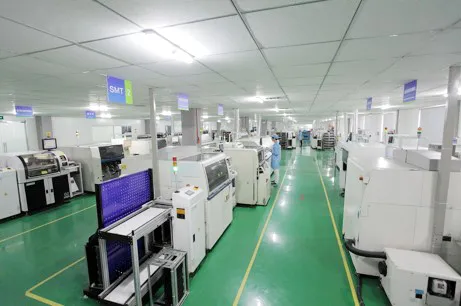

Quality Control
FAQ
Q1.Are you manufacturer or Trade Company?
We are a professional manufacturer of led light,led tube,led panel and energy saving lamps.
Q2. What terms of payment you use?
TT,LC at sight and Western union
Q3.How do you offer samples?
We offer free samples in certain quantity and delivery within 5-7 working days.
Q4. What's the order process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
d. Sample confirmation---digital sample, blank sample without printing or hardcopy.
e. Payment terms--- TT 30% in advanced, balanced before shipment.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
Q5.What is your delivery time?
Sample order: 5-7 working days
Mass order: 25-30 working days after 30% deposit received.
Q6.What is your MOQ?
For this model, usually our MOQ is 5000pcs, but we also accept sample order for trial.
Q7.Can your factory make the lights based on customers' design?
Yes, OEM and ODM service are available, we have professional designing team.
