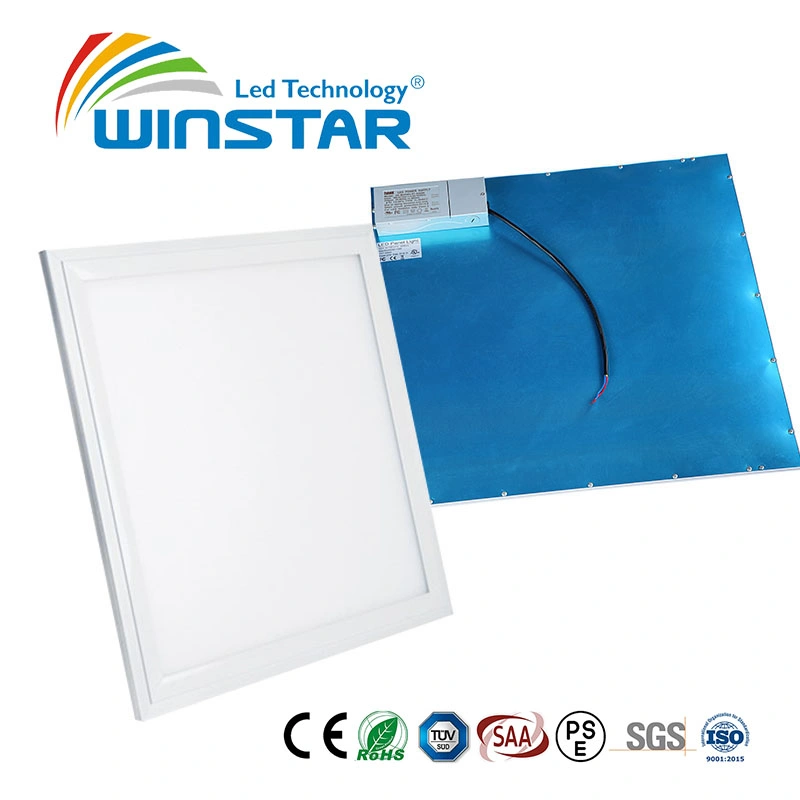

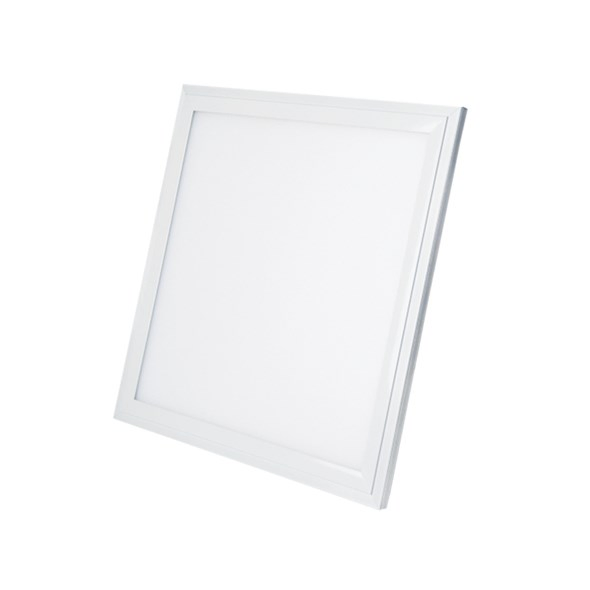

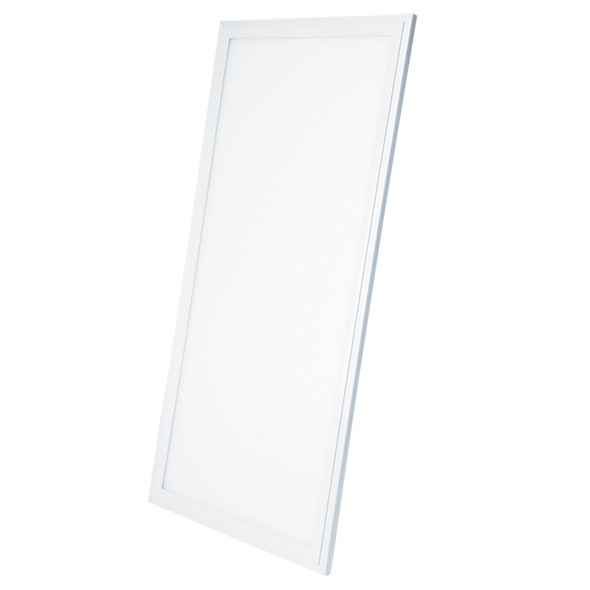

SMD4014 36W 40W 90lm-120lm Ceiling LED Panel Light
SMD4014 36W 40W 90LM-120LM Ceiling LED Panel LightProduct Avantage:1. High thermal conductivity aluminum 6063, which is lighter and better heat dissipation.2. 45°cutting, welding and polish. Stable white stoving varnish appearance is simple but elegant.3.High transparency PMMA 2.0mm thicknes......
Send Inquiry
Product Description
SMD4014 36W 40W 90LM-120LM Ceiling LED Panel Light

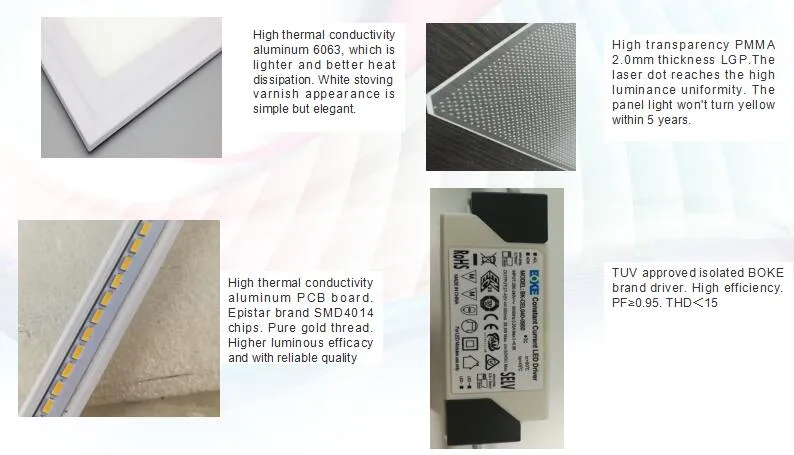

Product Avantage:
1. High thermal conductivity aluminum 6063, which is lighter and better heat dissipation.
2. 45°cutting, welding and polish. Stable white stoving varnish appearance is simple but elegant.
3.High transparency PMMA 2.0mm thickness LGP and PC diffuser plate. Higher luminous efficacy.
4. High thermal conductivity aluminum PCB board. Epistar brand SMD4014chips. Pure gold thread. Higher luminous efficacy and with reliable quality.
5. Triac dimmable, 0-10v dimmable and DALI dimmable are available.
6. Embedded, surface mounted and suspended installations. Suitable to office, supermarket, hotel etc.
7. TUV approved isolated driver. Long lifespan and reliable quality with 5 years warranty.
8.Suspended,Embedded,Surface ceiling installation.

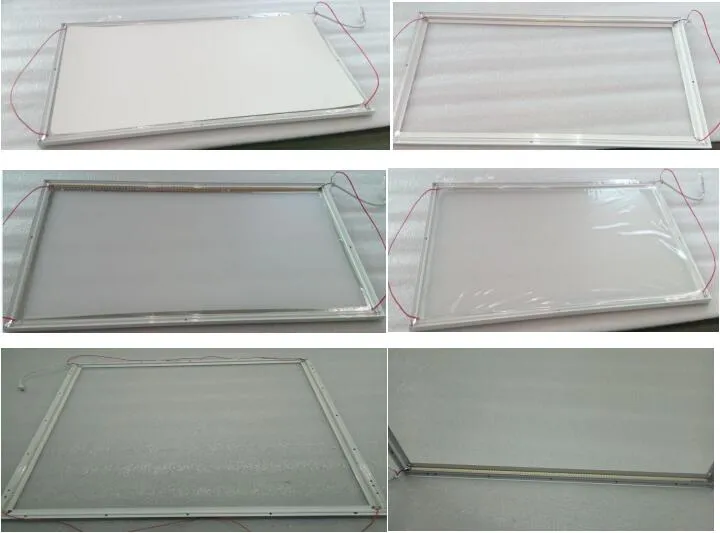

Product Details Show:

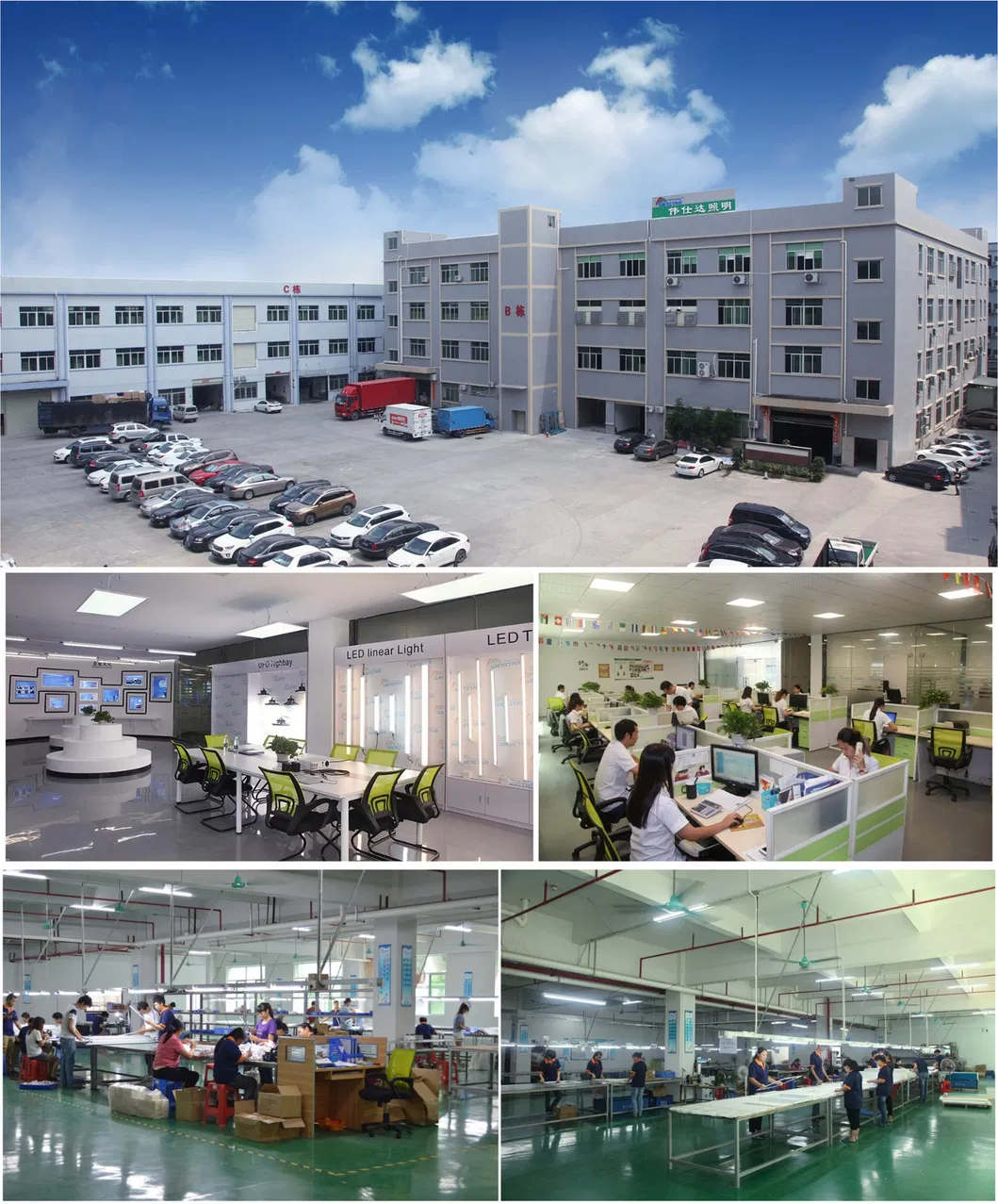

Company Briefs:
Winstar Power Technology Limited,since 2009, combines the latest led lighting technologies with over decade of rich experience to produce led tube light, tri-proof light, high bay light and panel light. Now we have 5000 square meters factory and 100 staffs. We are a professional and mature team with a common appreciation for the reliable great quality products. Always delivery on time and OEM is supported. The engineers are with abundant experience for more than 10 years. Our Team will be available for any technical enquiries and will be happy to support you on selecting the most appropriate lighting solutions in order to improve your demanding and complex projects.
WINSTAR is a top ranked led lighting products exporter, and has customers in over 60 countries through the Europe, Asia, South America, Latin America and Middle East. We are committed to creating outstanding products backed by friendly, responsible excellent service to delight our esteemed loyal customers around the world.
Company Advantages:
1. Big production capacity, fast delivery.
2. Strict QC inspecting rules: all products must be 100% inspected before delivery.
3. OEM/ODM services are available
4. 24 hours online service.
5. Prompt quotation for your inquiry
6. Quality,reliability and long product life.
7. Professional manufacturer offers competitive price.
8. Diversified rich experienced skilled workers.
Production Process:
Winstar has set up a full set of scientific & standard production system strictly complying with ISO9001:2015; We own the advanced&modern production equipments including the high speed SMT machine, auto wave welding machine, high-precision integrating sphere, IES testing machine and auto aging line.
Qulity Control:
As a professional manufacturer and exporter, we fully understand that quality is of vital importance to our sustainable development. We have the strict quality control, advanced machines and a strong R&D team to ensure high quality products, thus Winstar has set up a full set of scientific & standard production system strictly complying with ISO9001:2015; We own the advanced &modern production equipments including the high speed SMT machine, auto wave welding machine, high-precision integrating sphere, IES testing machine and auto aging line, etc; Meanwhile we have 6 senior engineers with 10 years working experience in the LED field and more than 20 senior administrators with bachelor degree in all the sectors.
Winstar is able to make the products with high quality, high efficiency and long lifespan. All our products are CE, RoHS, TUV approved and has been exported to more than 50 countries and regions.
Warranty:
3-5 Years Warranty
If item is defective within 3-5 years, you can still send it back to us. We will send you a new one after receiving the defective item. But you need to pay for whole shipping freight. Special situation could be discussed with us.
FAQ:
Q1: Are you a factory or trading company? Where is your company located?
A1: We are a factory 100%, not trading company. Our company is located in Dongguan, China
Q2: What is the warranty for our lamps?
A2: We have 3-5 years warranty for our lamps
Q3: How do you ensure the quality
A3: We are working with four QC processes to guaranty the quality: 1. For raw materials; 2. During the half of production; 3.Final QC test one by one after aging 12 hours; 4. QC selects inspection of the packaged products
Q4: How to do if any quality problems from our reason in the warranty time?
A4: First, take pictures or videos as proof and send to us, and then we will replace new ones for free.
Q5: OEM OR ODM accepted?
A5: Yes, we can do OEM & ODM, logo on the light or package both is available.
Q6: Can we get support if we have our own market position?
A6: Please inform us your detailed market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
Q7: What's your MOQ? Can I order small quantity for testing at first order?
A7: For new client, we accept small order for building mutual trust and long-term business relationship.
Q8: What is your shipping method suggested?
A8: Small package via courier such as DHL, Fedex, UPS; Bigger package by Air shipment; Big package via Vessel.
Q9: How many days will samples be finished? And how about the mass production?
A9: Generally 5-7 days for samples making. The leading time of mass production will depend on the quantity.
Q10. What's the payment method you accept?
A10: T/T, L/C, Western union, MoneyGram. We could discuss case by case.
Q11: Can I visit your company?
Welcome to visit our factory and it is our great pleasure.
Product Avantage:
1. High thermal conductivity aluminum 6063, which is lighter and better heat dissipation.
2. 45°cutting, welding and polish. Stable white stoving varnish appearance is simple but elegant.
3.High transparency PMMA 2.0mm thickness LGP and PC diffuser plate. Higher luminous efficacy.
4. High thermal conductivity aluminum PCB board. Epistar brand SMD4014chips. Pure gold thread. Higher luminous efficacy and with reliable quality.
5. Triac dimmable, 0-10v dimmable and DALI dimmable are available.
6. Embedded, surface mounted and suspended installations. Suitable to office, supermarket, hotel etc.
7. TUV approved isolated driver. Long lifespan and reliable quality with 5 years warranty.
8.Suspended,Embedded,Surface ceiling installation.
| Specification | ||
Model No.: | WS-PL-233B-300 | WS-PL-234B-300 |
| Power (W): | 36W | 40W |
| Description: | LED Pannel Lights ,UGR<19, Flicker free,Project lighting | |
| Material: | Aluminium+PMMA | |
| Lamp Size: | 295x1195x10MM | 595x595x10MM |
| Input Voltage(V): | 220-240V AC | |
| Frequency Range: | 50Hz-60Hz | |
| LED Chips: | SMD4014, Epistar chips | |
| Color Temperature: | 3000-6500K | |
| Power Factor: | More than 0.9 | |
| Ra: | >80 | |
| Beam Angle: | 120 degree | |
| Lumen(lm): | 90LM/W-120LM/W | |
| Lifespan: | 50,000 hours | |
| Warranty: | 5 years | |
| Working Temperature: | -20ºC to +45ºC | |
| Certificate: | CE, EMC, LVD, RoHS, SAA | |
| Package: | Neutral inner box, brown master carton | |
| Delivery Time | 5~7days for samples, 15-20 days for bulk order | |
Product Details Show:
Company Briefs:
Winstar Power Technology Limited,since 2009, combines the latest led lighting technologies with over decade of rich experience to produce led tube light, tri-proof light, high bay light and panel light. Now we have 5000 square meters factory and 100 staffs. We are a professional and mature team with a common appreciation for the reliable great quality products. Always delivery on time and OEM is supported. The engineers are with abundant experience for more than 10 years. Our Team will be available for any technical enquiries and will be happy to support you on selecting the most appropriate lighting solutions in order to improve your demanding and complex projects.
WINSTAR is a top ranked led lighting products exporter, and has customers in over 60 countries through the Europe, Asia, South America, Latin America and Middle East. We are committed to creating outstanding products backed by friendly, responsible excellent service to delight our esteemed loyal customers around the world.
Company Advantages:
1. Big production capacity, fast delivery.
2. Strict QC inspecting rules: all products must be 100% inspected before delivery.
3. OEM/ODM services are available
4. 24 hours online service.
5. Prompt quotation for your inquiry
6. Quality,reliability and long product life.
7. Professional manufacturer offers competitive price.
8. Diversified rich experienced skilled workers.
Production Process:
Winstar has set up a full set of scientific & standard production system strictly complying with ISO9001:2015; We own the advanced&modern production equipments including the high speed SMT machine, auto wave welding machine, high-precision integrating sphere, IES testing machine and auto aging line.
Qulity Control:
As a professional manufacturer and exporter, we fully understand that quality is of vital importance to our sustainable development. We have the strict quality control, advanced machines and a strong R&D team to ensure high quality products, thus Winstar has set up a full set of scientific & standard production system strictly complying with ISO9001:2015; We own the advanced &modern production equipments including the high speed SMT machine, auto wave welding machine, high-precision integrating sphere, IES testing machine and auto aging line, etc; Meanwhile we have 6 senior engineers with 10 years working experience in the LED field and more than 20 senior administrators with bachelor degree in all the sectors.
Winstar is able to make the products with high quality, high efficiency and long lifespan. All our products are CE, RoHS, TUV approved and has been exported to more than 50 countries and regions.
Warranty:
3-5 Years Warranty
If item is defective within 3-5 years, you can still send it back to us. We will send you a new one after receiving the defective item. But you need to pay for whole shipping freight. Special situation could be discussed with us.
FAQ:
Q1: Are you a factory or trading company? Where is your company located?
A1: We are a factory 100%, not trading company. Our company is located in Dongguan, China
Q2: What is the warranty for our lamps?
A2: We have 3-5 years warranty for our lamps
Q3: How do you ensure the quality
A3: We are working with four QC processes to guaranty the quality: 1. For raw materials; 2. During the half of production; 3.Final QC test one by one after aging 12 hours; 4. QC selects inspection of the packaged products
Q4: How to do if any quality problems from our reason in the warranty time?
A4: First, take pictures or videos as proof and send to us, and then we will replace new ones for free.
Q5: OEM OR ODM accepted?
A5: Yes, we can do OEM & ODM, logo on the light or package both is available.
Q6: Can we get support if we have our own market position?
A6: Please inform us your detailed market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
Q7: What's your MOQ? Can I order small quantity for testing at first order?
A7: For new client, we accept small order for building mutual trust and long-term business relationship.
Q8: What is your shipping method suggested?
A8: Small package via courier such as DHL, Fedex, UPS; Bigger package by Air shipment; Big package via Vessel.
Q9: How many days will samples be finished? And how about the mass production?
A9: Generally 5-7 days for samples making. The leading time of mass production will depend on the quantity.
Q10. What's the payment method you accept?
A10: T/T, L/C, Western union, MoneyGram. We could discuss case by case.
Q11: Can I visit your company?
Welcome to visit our factory and it is our great pleasure.
