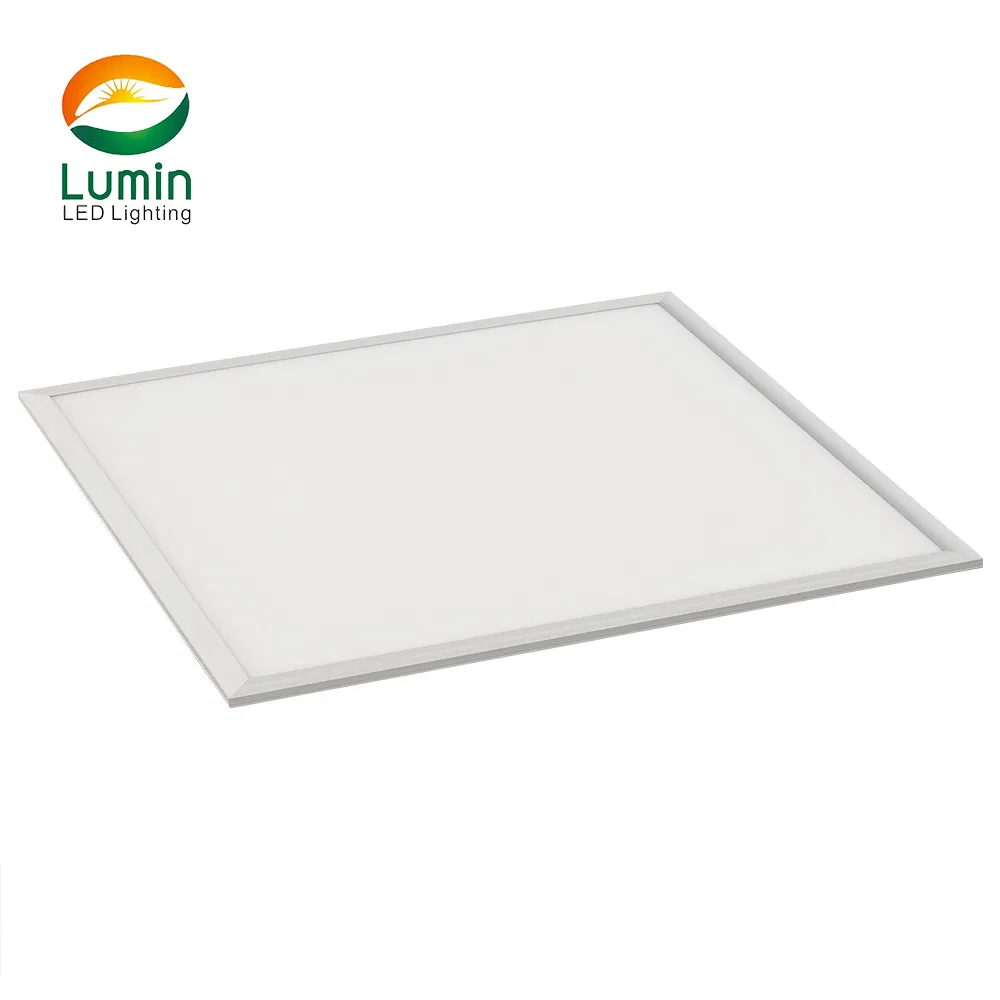

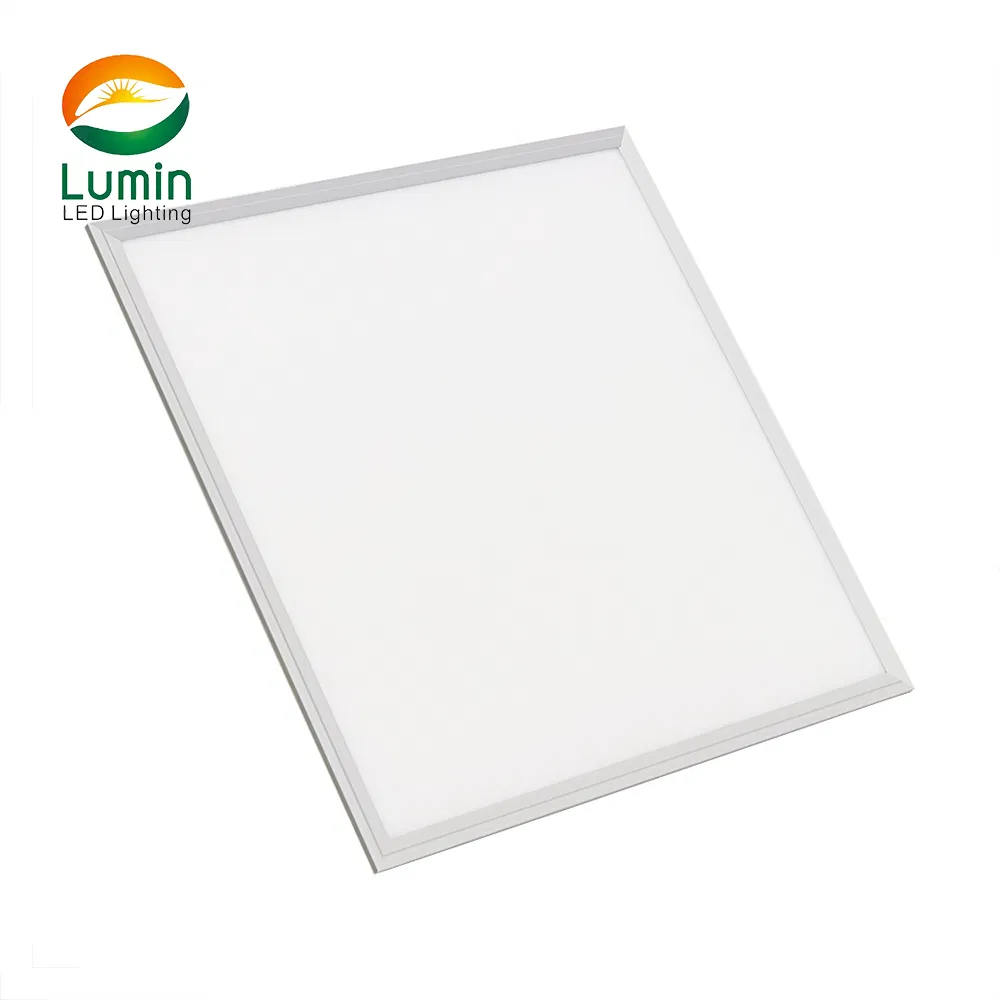

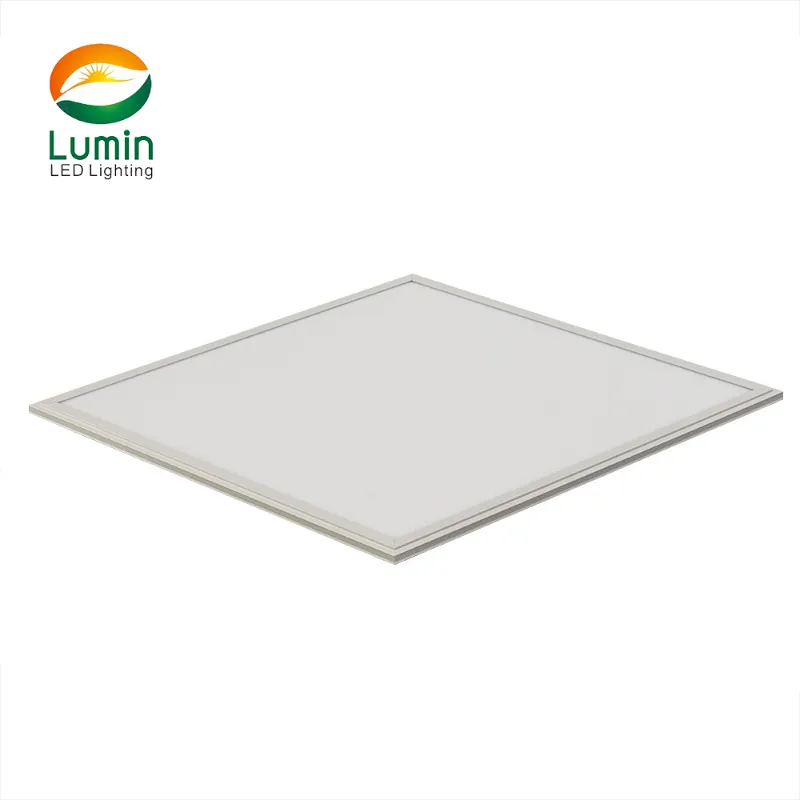

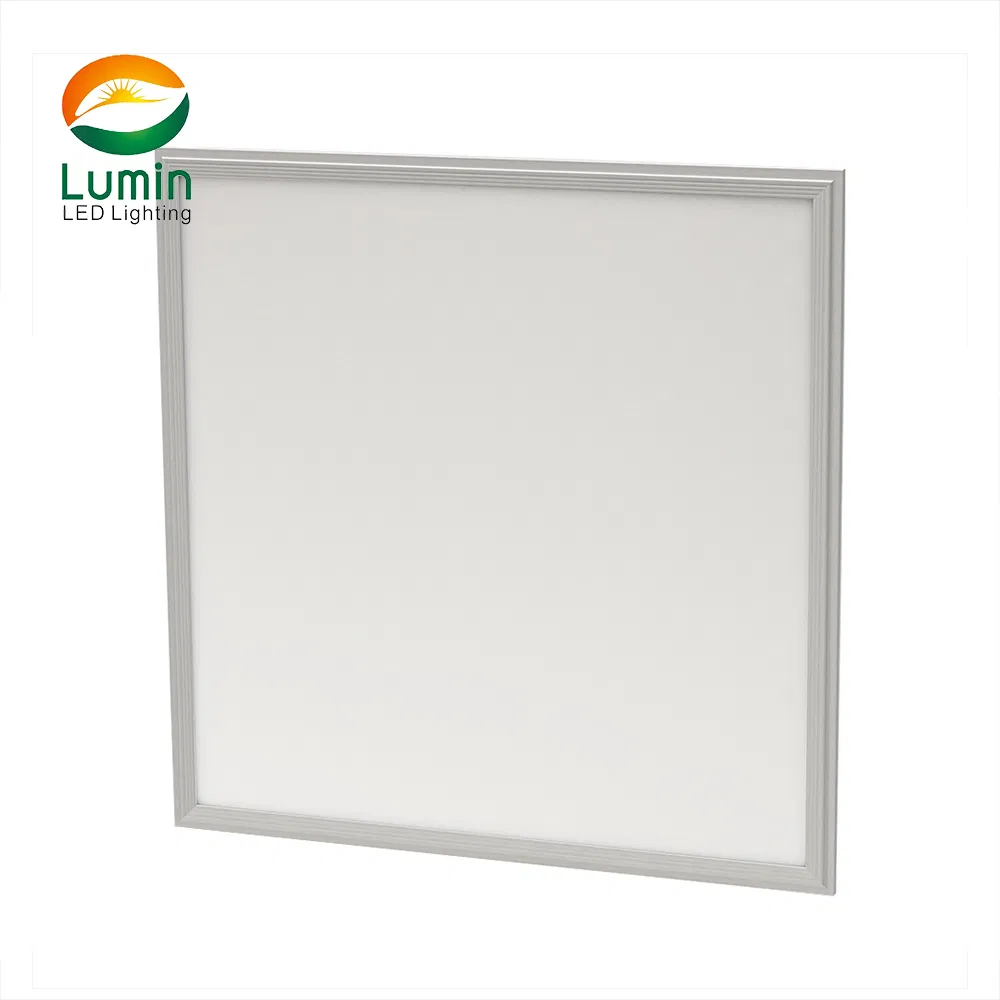

                                      Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting
                                      • Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial LightingSquare Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting
                                      • Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial LightingSquare Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting
                                      • Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial LightingSquare Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting
                                      • Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial LightingSquare Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting

                                      Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting

                                      Slim 40W 600*600 LED Panel LightSpecificationsModelDimensionPowerLuminousInput VoltageCRICCTDimmable SolutionLifetimeIP RatingUGRLM-B66-40W595*595*9MM(600*600)40W100 LM/WAC100-240VRa>803000K4000K5000K6000K0-10V,DALI,Triac50,000hoursIP4020LM-B1203-40W1195*295*9MM1200*300)40WLM-B63-20W595*295*9MM(6......

                                      Send Inquiry

                                      Product Description

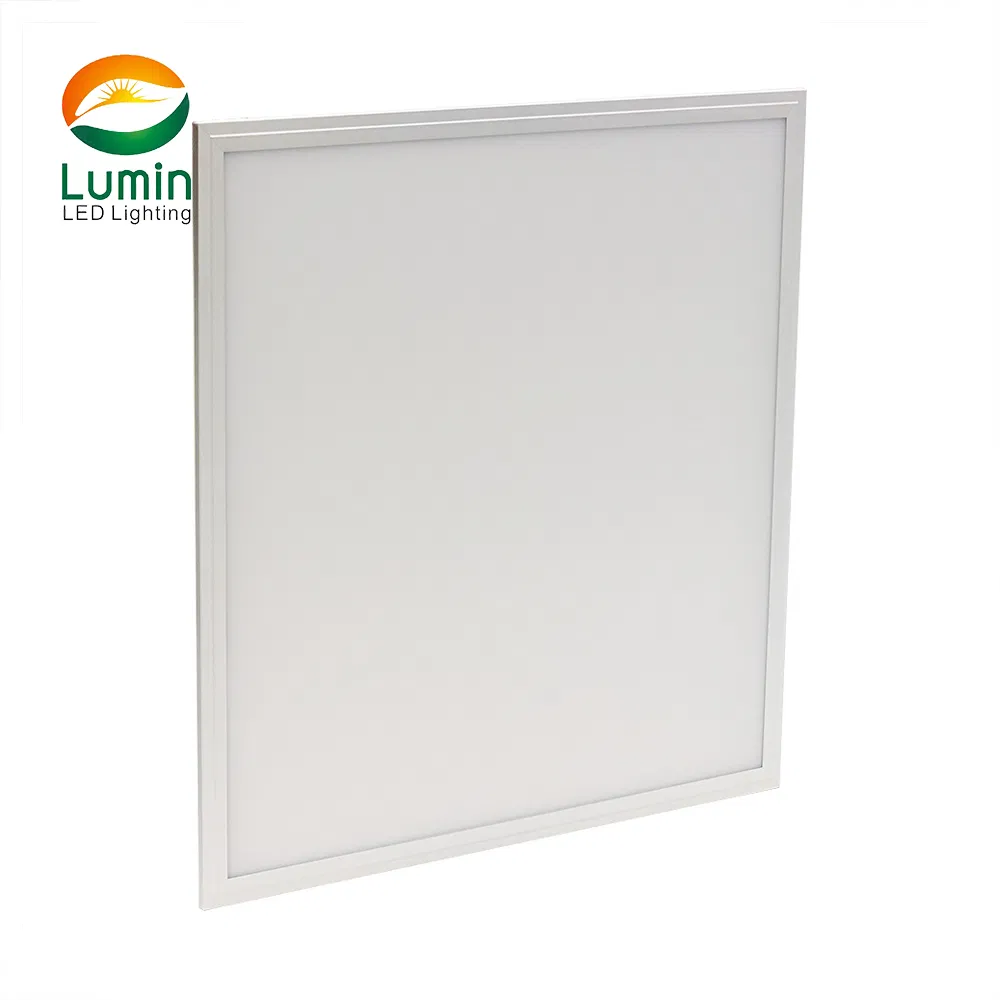

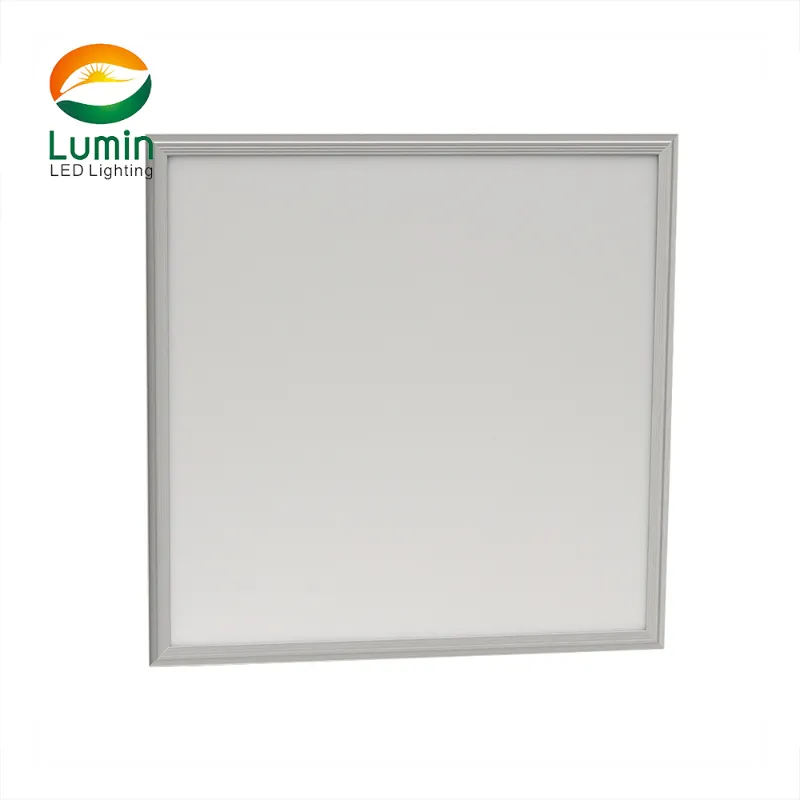

                                      Slim 40W 600*600 LED Panel Light
                                      Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting


                                      Specifications
                                      ModelDimensionPowerLuminousInput VoltageCRICCTDimmable SolutionLifetimeIP RatingUGR
                                      LM-B66-40W595*595*9MM
                                      (600*600)
                                      40W100 LM/WAC100-240VRa>803000K
                                      4000K
                                      5000K
                                      6000K
                                      0-10V,DALI,Triac50,000hoursIP4020
                                      LM-B1203-40W1195*295*9MM
                                      1200*300)
                                      40W
                                      LM-B63-20W595*295*9MM
                                      (600*300)
                                      20W
                                      LM-B33-20W295*295*9MM
                                      (300*300)
                                      20W
                                      LM-B620-40W620*620*9MM
                                      (625*625)
                                      40W

                                      Our Features
                                      1.     100 lm/w
                                               Remarkable light efficiency

                                      With the panel 40W 600*600mm,you realize more
                                                 than 60% energy savings compared to a classic
                                                4×18W T8 Luminaire.


                                      2.    CRI 82
                                                 Excellent  color rendering
                                                 With an CRI of 82,you get a 82 faithful colors.Particularly suited for
                                                 office lighting.

                                      3.     <6 SDCM
                                                 Constant color temperature
                                                 LEDs are selected in a single 6 SDCM BIN.In order to guarantee a
                                                 homogeneity of color on the entire panel light.All these luminaires
                                                 LEDs have an imperceptible color variation to the eye(<6 SDCM).

                                      4.     No UV,no IR
                                                 Photobiological saftey
                                                 Photobiological saftey(UV,IR,Blue Light,etc.) complies with the IEC/
                                                 EN62471 standard.

                                      5.    Flicker Free
                                                 Low ripple LED driver
                                                 The ripple of LED driver is controlled below 300mV,which makes the
                                                  panel realize flicker free .(Non-professional tools:take photos with
                                                  digital camera,the light does not flicker)

                                      6.     Dimmable
                                                  Dimming options
                                                  DALI,RF 2.4G,3 in1 dimming(0/1-10V, PWM, Rx).
                                      Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting

                                      Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting
                                      Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting



                                      Electrics
                                      1. High efficiency power supply,ENEC listed.
                                      2. Input Voltage:AC200-240V,50/60Hz.
                                      3. Power Factor: >0.9.
                                      4. Dimming solutions can be customized.

                                      Environmentally friendly
                                      1. No glare,mercury,ultraviolet,infrared or other hazardouse substances.
                                      2. Working Temperature:-25ºC~50ºC.

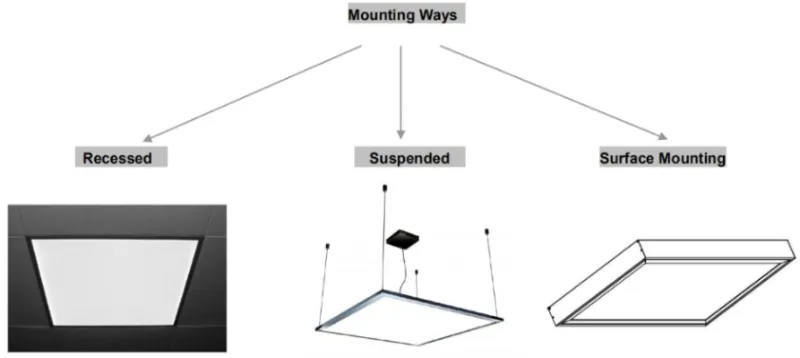

                                      Installation Instructions
                                      1. Fixtures must be operated by a licensed electrician.
                                      2. Check if fixtures are in good condition once the packaging is open.
                                      3. Do not let fixture fall down from ceiling system or clash to hard staff.
                                      4. Make sure that the cable of fixture is long enough to connect.Do not knot or pull the cable strongly.
                                      5. Do connect input end of fixture to output end of LED driver.
                                      6. Wiring must be firm and tight with insulation protection well.Be aware of electricity shock.
                                      7. Keep fixture and LED driver away from water or liquid,free from electric leakage and eletricity shock.


                                      Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting



                                      Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting

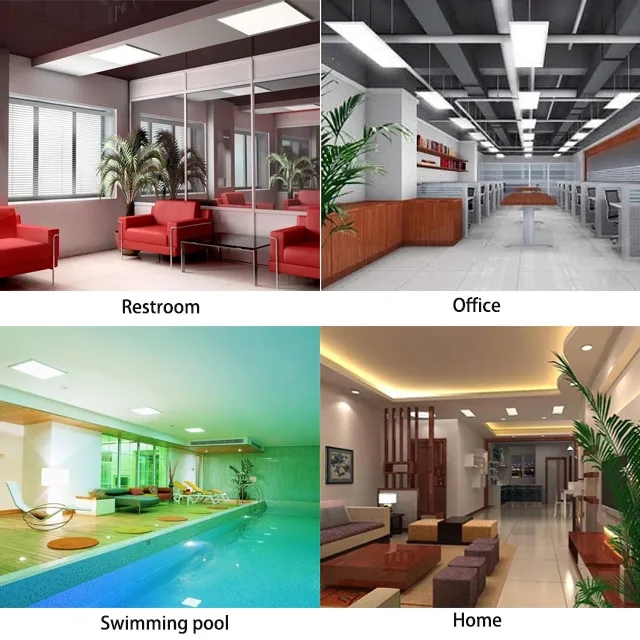

                                      Projects
                                      Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting

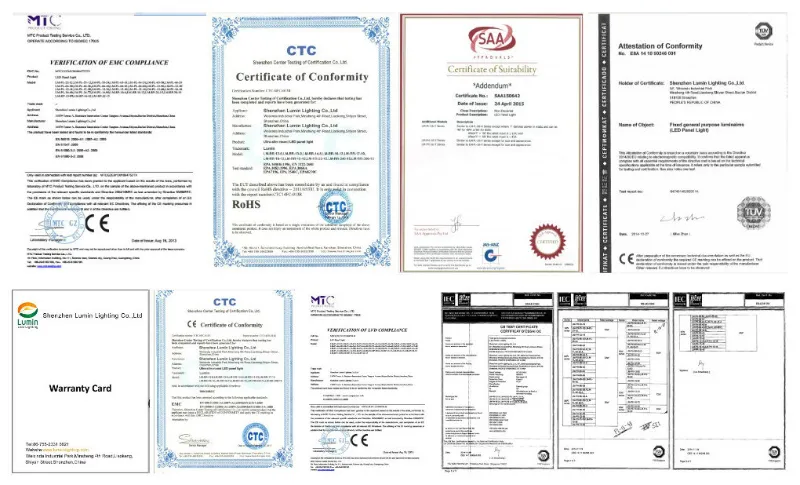

                                      Certification
                                      Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting


                                      About LUMIN
                                      Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting

                                      Based in Shenzhen,Lumin Lighting is a fast-growing semiconductor lighting manufacturer and suppliers in
                                      China.Lumin Lighting was founded on November 17,2008.Since its founding,Lumin Lighting is committed
                                      to developing,manufacturing and popularizing LED lighting products,responding to the government policy of
                                      energy-saving,emission reduction,and maintainable development.

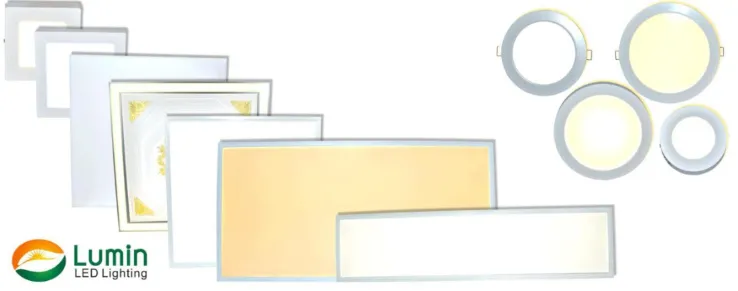

                                      Lumin Lighting product lines mainly include LED Panel,LED downlight,LED bulbs,and outdoor lights.Meantime,
                                      Lumin Lighting also provides customized lighting solutions to customers.

                                      Lumin Lighting takes product quality as our lifeline.We focus on quality during thewhole production process
                                      by seriously carrying out ISO 9001 Quality System and ISO Environment Management System.

                                      Best Services
                                      (1) Your inquiry will be replied within 12 hours.
                                      (2) Fast sample deliverly:3 days around.
                                      (3) Best-trained and experienced sales staffs follow up with your inquiries and orders.
                                      (4) OEM/ODM services:all can be customized.
                                      (5) Distributor,agent,investor and more are welcome.
                                      (6) It can be 5-year limited warranty:spare parts can be offered along with orders.

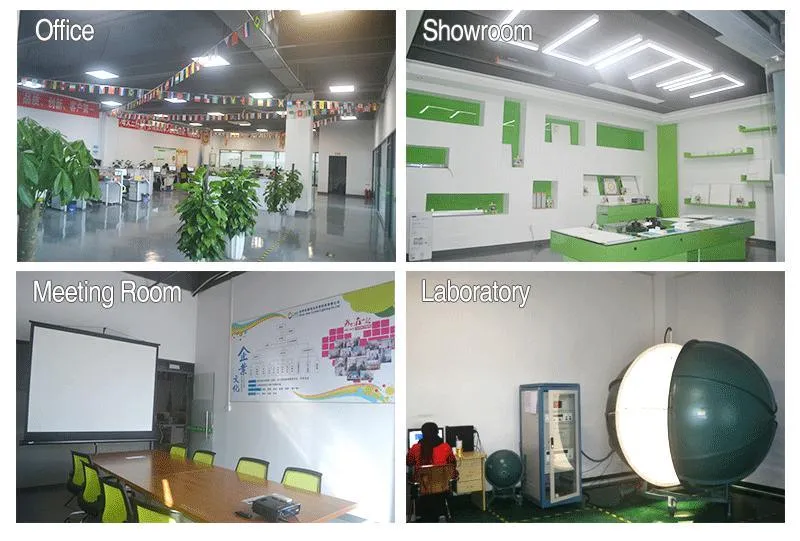

                                      Company Profile
                                      Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting
                                      Exhibition
                                      Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting
                                      Square Slim Aluminum Frame 36W 40W LED Panel Light for Comercial Lighting

                                      FAQ

                                      Q1: What is the Warranty for the lamps?
                                      A1: Re the panels,it has 5 years warranty.If there any quality problems on our side ,we will  replace the panels or
                                      return-back the money to you .

                                      Q2: What is colour temperature?
                                      A2: The panels has warm white, natural white and pure white  colour temperatures for choice.
                                      Warm white = 2700K-3200K
                                      Natural white = 4000K-4500K
                                      Pure white = 6000K-6500K

                                      Q3:: What is CRI?
                                      A3: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For our LED panels,Our CRI is >85.

                                      Q4: Will your LED panel work on a dimmer switch?
                                      A4: Yes, can do as per your request.

                                      Q5: What is the size you have for UFO high bay light?(mm)
                                      A5:100W: φ290*170mm,  150W:φ340*180mm,  200W:400*194.

                                      Q6:Is there cheap shipping cost to import to our country?
                                      A6: For small order,express will be best, for bulk order,sea ship way is best but take much time.
                                      For urgent orders,we suggest by express, big quantity by air.

                                      Q7:Can we get support if we have our own market position?
                                      A7: Please inform us your detailed mind on your market demand,we will discuss and
                                      propose helpful suggestion for you,to find the best solution for you.

                                                                                    Thank you!
