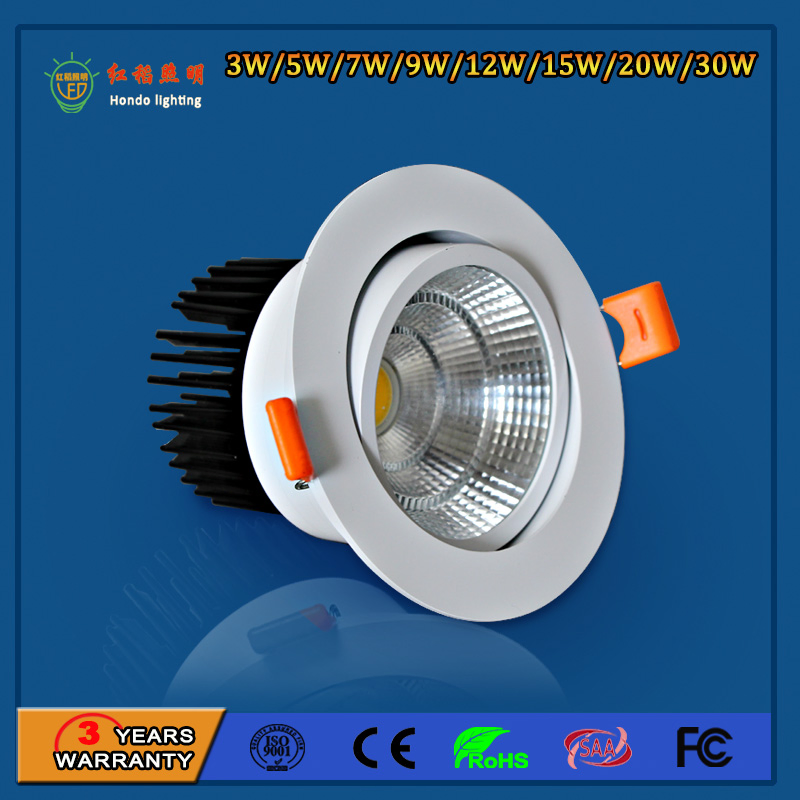

Ce FCC Approved 20W COB Dimmable LED Ceiling Lamp

Product Description

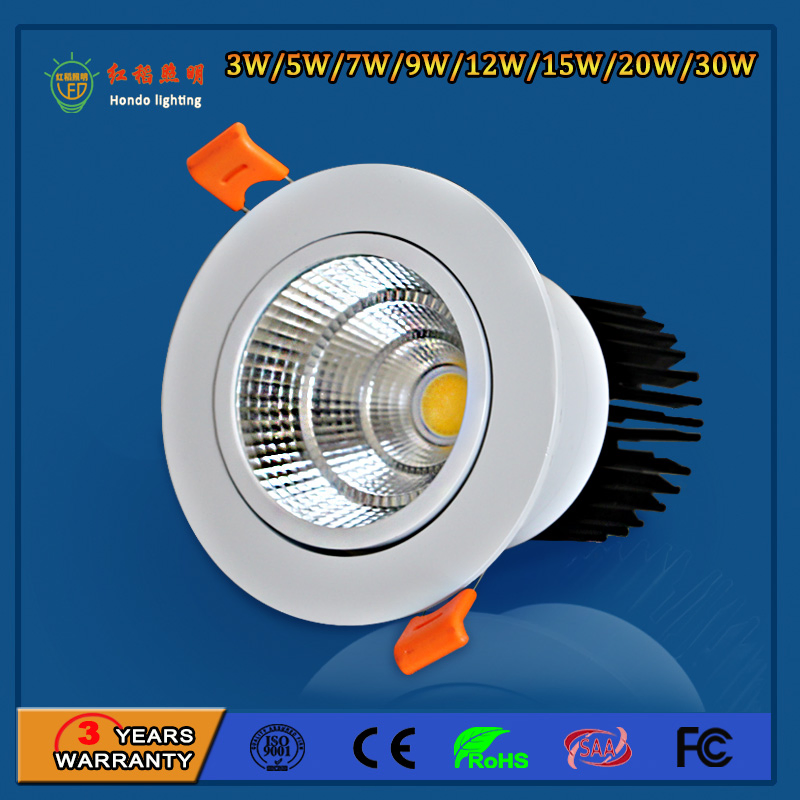

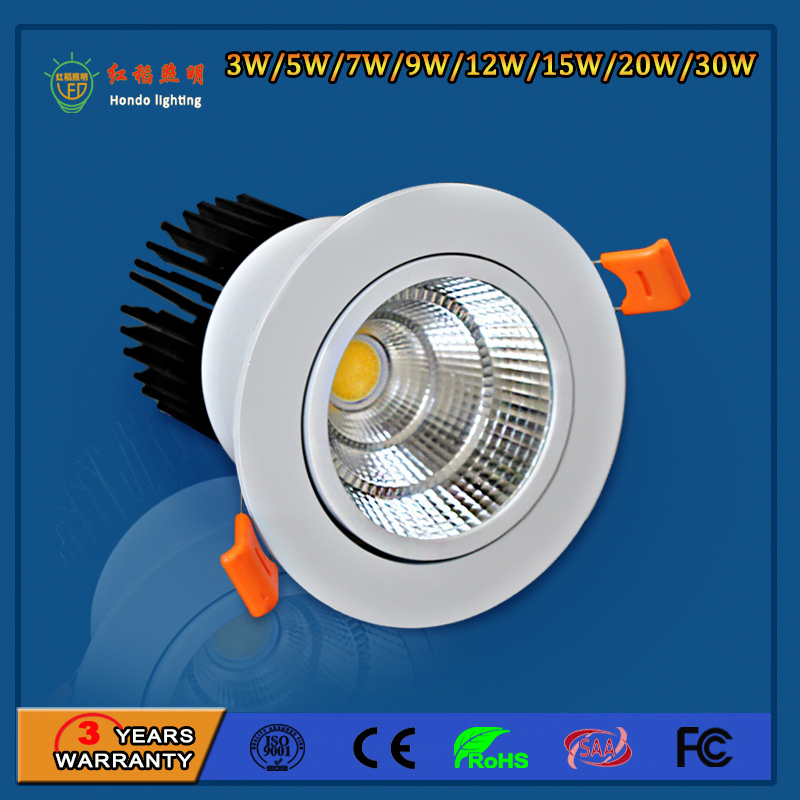

20W COB Indoor LED Spotlight

Main specfications:

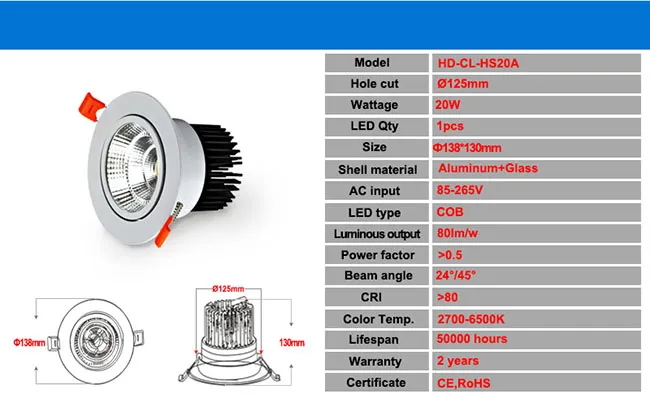

Specifications sheet :

Model	HD-CL-HS03A	HD-CL-HS05A	HD-CL-HS07A	HD-CL-HS09A
Size	Ø90×H60mm	Ø90×H65mm	Ø90×H85mm	Ø110×H75mm
Hole cut	Ø55mm	Ø75mm	Ø75mm	Ø75mm
Wattage	3W	5W	7W	9W
Shell material	Aluminum+Glass
AC input	85-265V
LED type	COB
LED Qty	1pcs
Luminous output	80LM/W
Power factor	>0.5/0.9
Beam angle	24°
CRI	>80
Color Temp.	2700-6500K
Lifespan	50000 hours
Warranty	2/3 years
Certificate	CE,RoHS

Model	HD-CL-HS12A	HD-CL-HS15A	HD-CL-HS20A	HD-CL-HS30A
Size	Ø110×H95mm	Ø138×H85mm	Ø138×H130mm	Ø160×H125mm
Hole cut	Ø95mm	Ø95mm	Ø120mm	Ø120mm
Wattage	12W	15W	20W	30W
Beam angle	24°	24°	45°	45°
Shell material	Aluminum+Glass
AC input	85-265V
LED type	COB
LED Qty	1pcs
Luminous output	80LM/W
Power factor	>0.5/0.9
CRI	>80
Color Temp.	2700-6500K
Lifespan	50000 hours
Warranty	2/3 years
Certificate	CE,RoHS

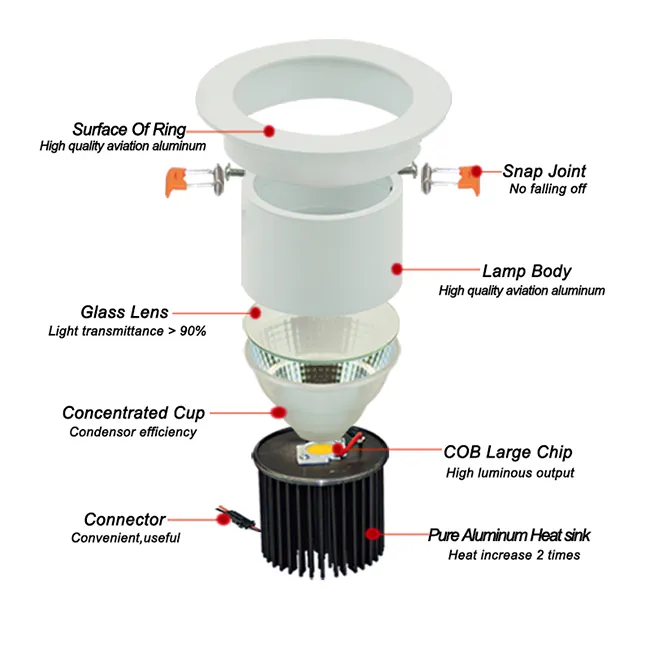

Disassembly Diagram:

Main features discriptions:

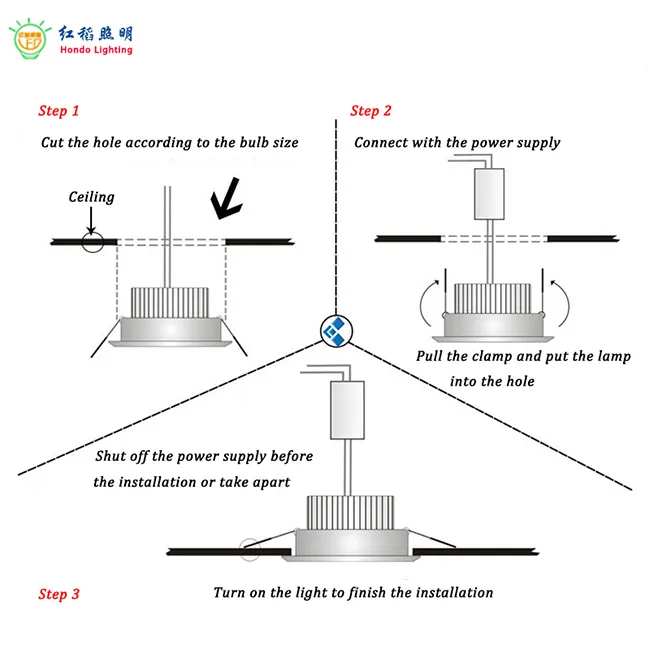

How to install the light ?

Application:

1. Suitable for exhibition hall, meeting room, hotels, supermarkets, restaurants, amusement park .etc.
2. Architecture and home decoration, recessed/ceiling/wall lighting, cabinet/counter lighting, step lighting included.
3. Perfect replacement of traditional light.

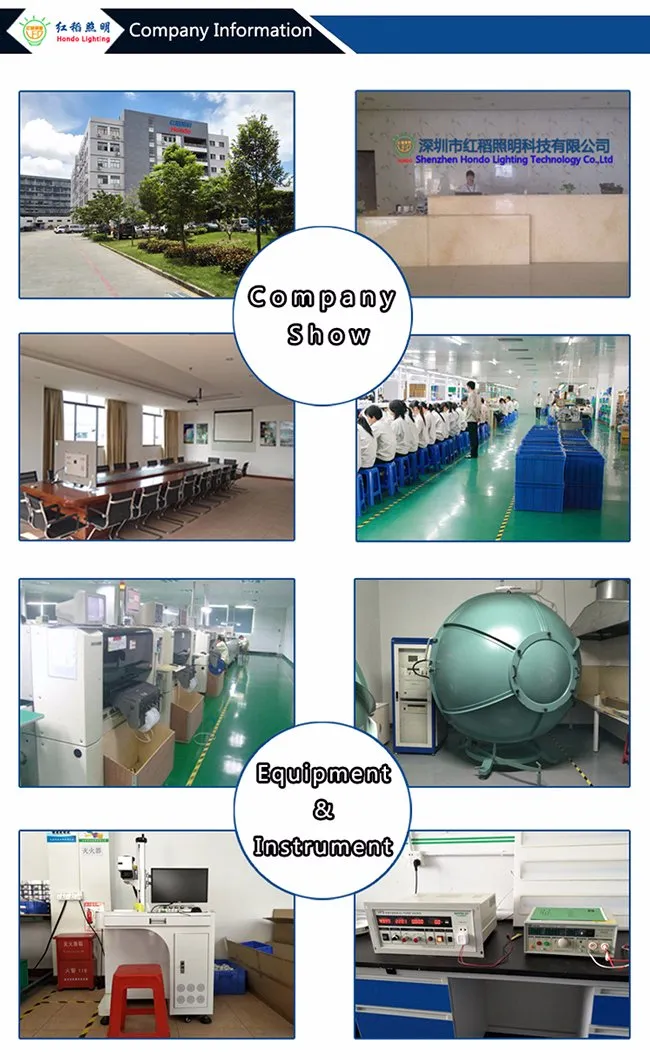

Our Company:

Shenzhen Hondo Lighting Technology Co., Ltd has been established since 2011, which is a professional manufacturer and exporter of led lighting for residential and commercial use. Our plant covers 4000 square meter, with more than 200 employees. Our main products includes led strip, led tube, led bulb, led flood light, led underwater light etc. Committed to the improvement of the living environment and cost saving, we are providing the diversified energy-saving solutions for different customers. At present we are the exclusive manufacturer for SYNERGY GROUP in HONG KONG (Stock code: 8105.HK).

Ce FCC Approved 20W COB Dimmable LED Ceiling Lamp

FAQ:
Q1: Are you a factory or trading company? Where is your company located?
A1: We are a factory 100%, not trading company. Our company is located in Shenzhen, China
Q2: What is the warranty for our lamps?
A2: We have 3 years warranty for our lamps
Q3: How do you ensure the quality
A3: We are working with four QC processes to guaranty the quality: 1 .For raw materials; 2. During the half of production; 3.Final QC test one by one after aging 12 hours; 4. QC selects inspection of the packaged products
Q4: How to do if any quality problems from our reason in the warranty time?
A4: First, take pictures or videos as proof and send to us, and then we will replace new ones for free.
Q5: OEM OR ODM accepted?
A5: Yes, we can do OEM & ODM, logo on the light or package both is available.
Q6: Can we get support if we have our own market position?
A6: Please inform us your detailed market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
Q7: What's your MOQ? Can I order small quantity for testing at first order?
A7: For new client, we accept small order for building mutual trust and long-term business relationship.
Q8: What is your shipping method suggested?
A8: Small package via courier such as DHL,Fedex,UPS,EMS; Bigger package by Air shipment; Big package via Vessel
Q9: How many days will samples be finished? And how about the mass production?
A9: Generally 5-7 days for samples making. The leading time of mass production will depend on the quantity.
Q10. What's the payment method you accept?
A10: T/T, L/C, Western union, MoneyGram
Q11: Can i visit your company?
Welcome to visit our factory and it is our great pleasure
