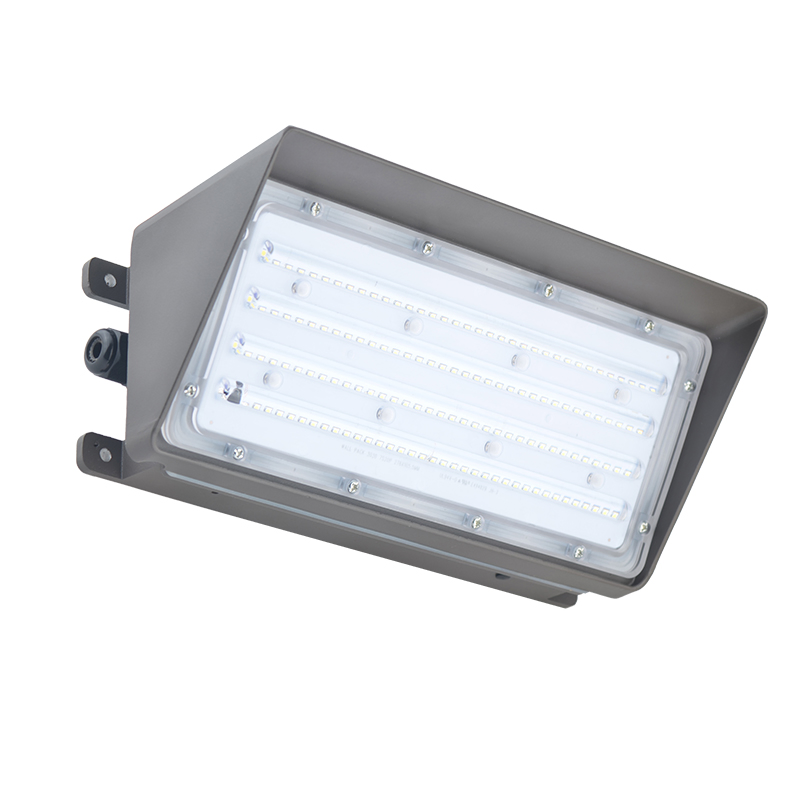

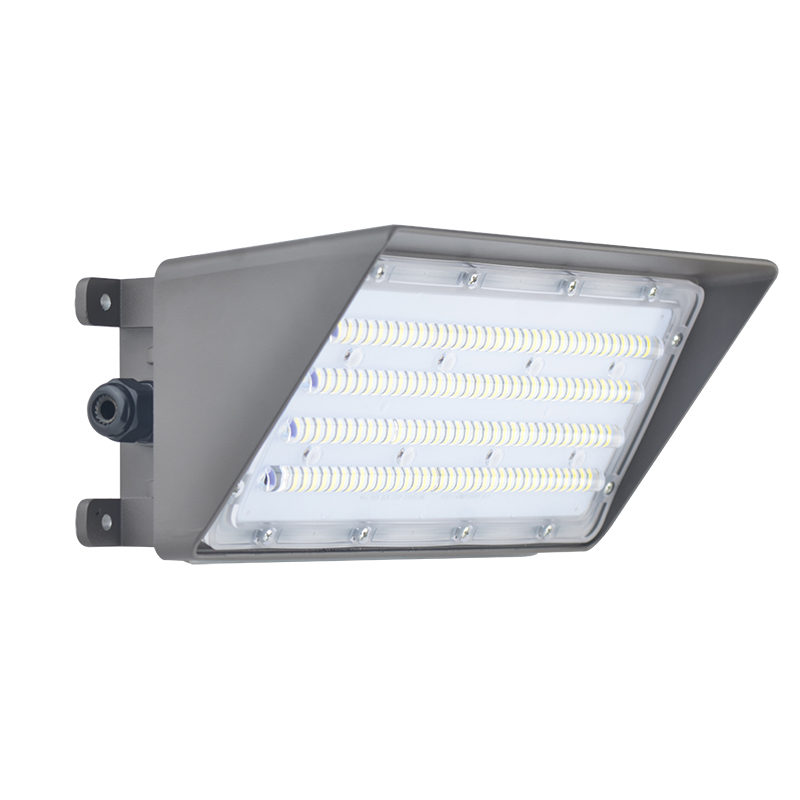

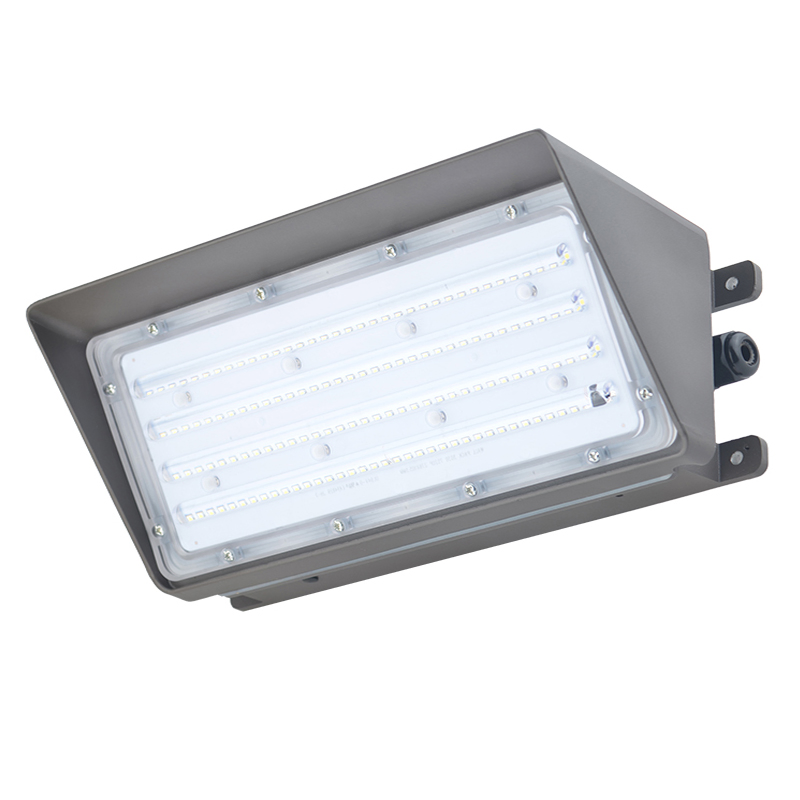

High Lumen 80W LED Wallpack

Product Description

High Lumen 80W LED Wallpack

1) Light Source: 350PCS 5630 LED
2) Luminous Flux: 7500LM
3) 23*45mil Chip(55~60Lm/LED)
4) Rated Wattage: 75W
5)Base: 2PIN Wires
6) Rated Voltage: 100~240VAC, 50/60Hz
7) Color Temperature: WW(2700~3800K), NW(4000-5000K) or CW(5500-6700K)
8) Beam Angle: 120 °
9) Lifetime: 50, 000Hours
10) Size: 465*230*334mm
11) Net weight: 7.2KG
12) CE. ROHS approved
3) Body Temperature: < 70°
14) Recommended replaced panel light 200W HPS
15) IP Rating: IP65

Quick Details
Place of Origin: Guangdong China (Mainland)
Brand Name: Bbier Lighting
Model Number: BB-RSD-003
Base Material: Aluminum
Diffuser: Tempered Glass
Usage: Street
Voltage: 240v
Power Supply: LEDs(Meanwell driver)
Certifications: CE, RoHS
OEM&ODM: AcceptableIs customized: YesItem type: Wall pack
Useage: OutdoorIP rating: IP65Power Factor: 0.95
Lamp type: LedCRI: 75Corlor temperatures: 2700-6700K

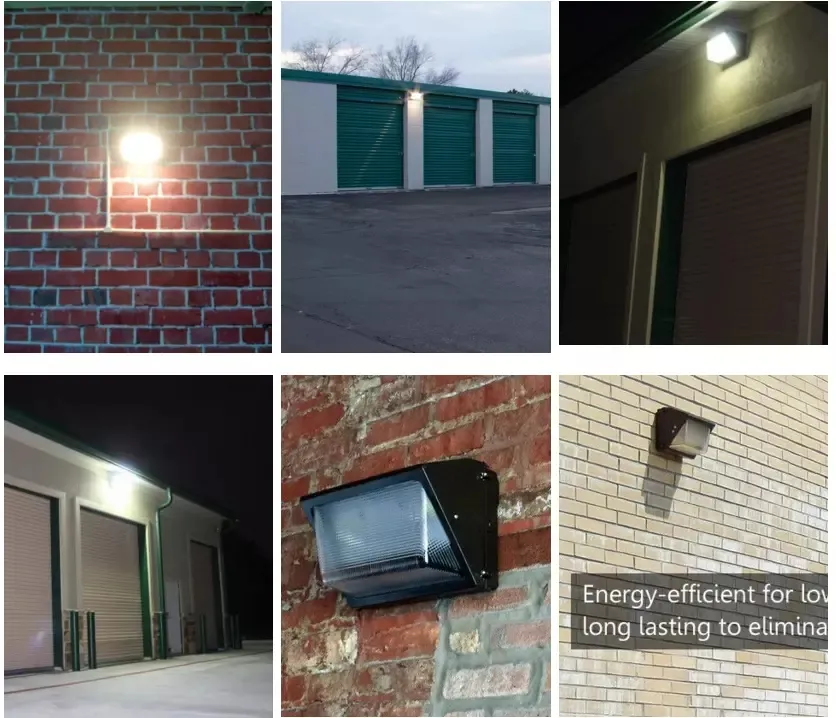

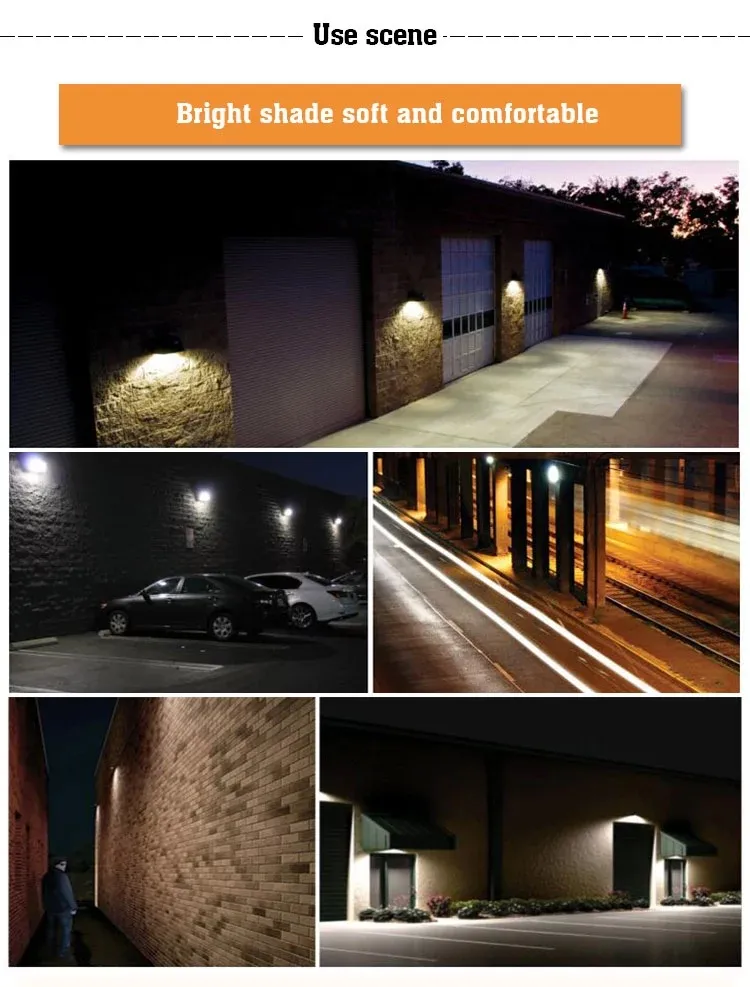

Application:
Warehouse facilities Shipping, and receiving areas Cold storage facilities Industrial plants Security lightingStreetroad Square gymnaslum Parking lots All other commercial buildings

Advantages:
1. Extremely long life
2. Maintenance-free
3. Highly Efficient and Energy Saving
4. Instant starting, no Cold-Start
5. Bright, white light (CRI >= 85)
6. Improved visibility and security
7. No glare and light pollution
8. Green Light Source

Full Name	BB-RSD-75W
Item No.	BB-RSD-003
Power	75W
Input Vlotage	100~240VAC, 50/60Hz
Luminous Flux	75000LM
LED Source	250PCS 5630 LED
Size	465230334mm
Replacement	200W HPS
Luminous Efficacy	> 100LM/W
Beam Angle	120degree
Lamp Base	2PIN Wires
CRI	Ra> 80
Color Temperature	WW(2700-3800K), NW(4000-5000K) or CW(5500-6700K)
Driver	Mean Well, UL , TUV Certified Power Supply
Lifespan	50, 000hours
Power Factor	> 0.95
Power Efficiency	> 87%
Materials	Aluminum & Tempered Glass
IP Rating	65
Body Temperature	< 70º C
Warranty	3 years
Certifications	CE RoHS EMC LVD
Application	Lighting Building Facades, Loading areas, Garages, Custom Applications, etc...
