How Do You Install and Connect Multiple LED Dustproof Lights Easily
2025-11-24
Installing multiple LED dustproof lights in a row doesn't have to be a complex, time-consuming project. With the right product and a clear guide, you can achieve a professional, durable lighting system with ease. This article will walk you through the straightforward process, highlighting why WELLWAY's innovative design simplifies the entire installation, saving you significant time and labor costs.

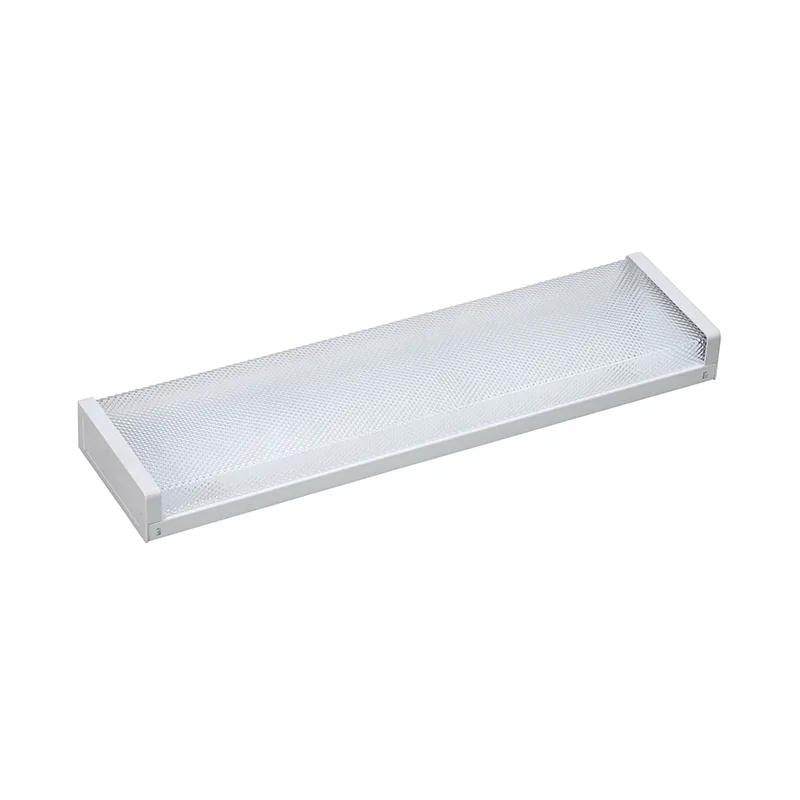

Key Features of the WELLWAY LED Dustproof Light for Easy Installation
Our WELLWAY fixtures are engineered for seamless multi-unit connections. Here are the core features that make it possible:
-
Daisy-Chaining Capability: Pre-wired connection ports allow you to link one light directly to the next, eliminating the need for complex individual wiring to the main power source for each unit.
-
Plug-and-Play Connectors: We include robust, waterproof connectors that simply snap together, ensuring a secure and safe electrical connection without any extra tools or wire nuts.
-
Versatile Mounting Options: The lights come with multiple mounting choices—surface, pendant, or ceiling—to adapt to any industrial or commercial environment.
Product Parameters at a Glance
| Parameter | Specification |
|---|---|
| Model | WW-DPL-40W-SL |
| Power Consumption | 40W (Equivalent to 150W Traditional Fixture) |
| IP Rating | IP65 (Fully Dustproof and Protected Against Water Jets) |
| Luminous Flux | 4800 Lumens |
| Color Temperature | 4000K (Cool White) / 5000K (Daylight) |
| Connection Method | Daisy-Chain via IP-Rated Connectors |
| Input Voltage | 100-277V AC |
| Dimensions | 1200mm x 100mm |
LED Dustproof Light FAQ
What is the maximum number of WELLWAY LED Dustproof Lights I can connect in a single series?
You can safely connect up to 10 units of our 40W model in a single daisy-chain series on a standard circuit. For longer runs, we recommend dividing the lights into multiple parallel circuits to ensure optimal performance and safety.
Are the connectors truly waterproof and safe for outdoor use?
Absolutely. The WELLWAY LED Dustproof Light comes with pre-attached IP65-rated connectors. This means the connection points are fully protected against dust ingress and low-pressure water jets, making them perfectly safe for damp indoor and outdoor applications like warehouses, parking garages, and food processing plants.
Do I need an electrician to install these lights, or can I do it myself?
While the daisy-chain system is designed for simplicity, we always recommend that the initial hardwiring from your main power supply to the first light fixture is performed by a qualified electrician to ensure all local codes and safety standards are met. The subsequent connections between the lights, however, are a straightforward plug-and-play process.
By choosing WELLWAY, you are not just selecting a light; you are investing in a lighting solution that prioritizes efficiency, durability, and effortless installation. Our LED Dustproof Light is built to perform reliably in tough conditions while drastically reducing your setup time.
Contact Us today to request a free lighting layout plan and a personalized quote for your project. Let WELLWAY illuminate your space with smart, robust lighting.
