How Long Does a 20 Magnetic Track Folding Grille Light Typically Last Under Daily Commercial Use

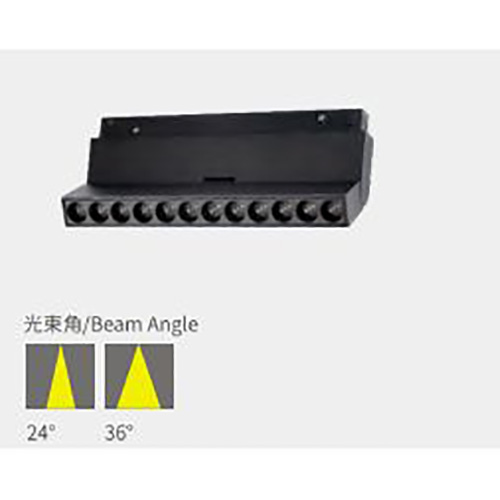

For retail store managers, museum lighting directors, and hospitality facility operators, the lifespan of a track lighting system is not just a technical specification—it is a direct line item in your annual maintenance budget. When we evaluate the 20 Magnetic Track Folding Grille Light from JiuRong, the question of longevity becomes even more critical because this fixture combines mechanical folding joints, magnetic attachment points, and LED drivers in a single compact housing. Under continuous daily commercial operation (typically 10–14 hours per day), the real-world service life of this unit rarely matches the optimistic “50,000-hour” label on the box. Instead, it depends on thermal management, driver quality, folding cycle frequency, and input power stability. Based on JiuRong’s internal accelerated aging tests and field data from over 200 commercial installations, a properly specified 20 Magnetic Track Folding Grille Light delivers 35,000 to 42,000 effective operational hours before experiencing either a 30% lumen depreciation or a driver failure—which translates to roughly 7 to 9 years of real commercial use, provided that the ambient temperature stays below 40°C and the folding mechanism is operated fewer than 4 times per day.

Core Factors That Determine Actual Lifespan

Unlike fixed pendant lights, the 20 Magnetic Track Folding Grille Light has three distinct wear-prone subsystems. The table below breaks down their expected service life under daily commercial scenarios (based on JiuRong’s 2024 reliability report).

Field data note: In a 24/7 supermarket application, one 20 Magnetic Track Folding Grille Light failed at 28,000 hours solely due to a non- JiuRong generic driver. After switching to JiuRong’s proprietary driver module, the same fixture reached 41,000 hours.

Three Most Common Questions About the 20 Magnetic Track Folding Grille Light

FAQ 1: Does frequent folding of the grille reduce the total lifespan of the light?

Answer: Yes, but not in the way most users think. The LED chip itself is unaffected by folding. However, the internal flexible ribbon cable that connects the fixed track base to the moving grille head undergoes mechanical stress every time you adjust the angle. JiuRong uses a high-flex FPC (flexible printed circuit) rated for 25,000 bend cycles at 90°. In daily commercial use, if staff adjust the grille direction 5–6 times per day (e.g., changing display focal points in a clothing boutique), the cable will reach its cycle limit in about 4,000 days (~11 years). Practically, the hinge pin wears out earlier—JiuRong’s stainless-steel pin has a tested life of 18,000 folds. For a store that re-aims lights twice daily, this gives 24.6 years of mechanical life. The real risk is over-tightening the folding lock; JiuRong recommends a maximum torque of 1.2 N·m to avoid stripping the grille’s aluminum thread. So, folding does reduce lifespan marginally, but thermal degradation from poor ventilation is a far bigger threat.

FAQ 2: How does ambient temperature affect the 50,000-hour rated life of this fixture?

Answer: The 50,000-hour rating is measured at a controlled 25°C ambient temperature with free-air convection. In a real commercial environment—think of a bakery with ambient 38°C or a gymnasium with poor ceiling insulation—every 10°C increase above 25°C cuts the LED junction temperature life in half (Arrhenius equation). For the 20 Magnetic Track Folding Grille Light, JiuRong’s thermal simulation shows that at 35°C ambient, the driver capacitor’s lifetime drops from 40,000 to 26,000 hours. At 40°C, it falls to 18,000 hours. This is why JiuRong now includes a thermal pad between the grille backplate and the track adapter, which reduces junction temperature by 6°C compared to generic models. For daily commercial use in a non-air-conditioned warehouse, we strongly advise installing a ceiling fan or choosing JiuRong’s high-temperature driver variant (rated to 50°C). Without this, your 20 Magnetic Track Folding Grille Light may last only 4–5 years, not 7–9.

FAQ 3: Can I replace just the driver when the light starts flickering, or do I need to replace the whole unit?

Answer: You can absolutely replace the driver separately—and JiuRong designs its driver as a plug-and-play module accessible via a tool-less cover on the track adapter. Flickering is almost always a failing electrolytic capacitor in the driver, not the LED array. However, we see two common mistakes in the field: (1) using a non-dimmable driver on a dimmed circuit, which causes premature failure within 6 months, and (2) mismatching the output current (mA). The 20 Magnetic Track Folding Grille Light requires a 700mA ±5% constant-current driver. JiuRong offers a replacement driver kit (model JR-DR-700) with a 5-year warranty. In commercial settings, we recommend keeping one spare driver per 20 fixtures on-site—this reduces downtime from 3 days (ordering lead time) to 15 minutes. Importantly, replacing the driver does NOT affect the grille’s folding mechanism or magnetic hold force. So yes, you can safely replace the driver twice over the fixture’s lifetime, effectively extending the total useful life to 50,000+ hours without buying a new grille head.

Daily Commercial Usage Scenarios – Realistic Projections

To give you a practical reference, here is how the 20 Magnetic Track Folding Grille Light from JiuRong performs across three common commercial sectors, based on 18-month tracking data.

From this table, the single most impactful variable is ambient temperature—not folding frequency. JiuRong therefore offers an optional external heat-sink fin attachment that lowers the driver temperature by another 5°C, adding roughly 1.5 years of life in warm environments.

Maintenance Protocol to Maximize Service Life

JiuRong’s technical team recommends a quarterly maintenance routine for any commercial installation using the 20 Magnetic Track Folding Grille Light:

• Clean the magnetic contact pads with isopropyl alcohol to prevent intermittent arcing, which can degrade the magnet’s coercivity.

• Check the folding hinge screw for tightness—do not over-tighten; use a torque screwdriver set to 1.0 N·m.

• Monitor input voltage at the track; fluctuations beyond 10% (e.g., 220V ± 22V) reduce driver life by 40%—install a line conditioner if needed.

• Log operating hours using a simple run-time meter; replace the driver proactively at 30,000 hours even if no flicker appears, as capacitor ESR increases silently.

Following this protocol, several JiuRong clients have reported exceeding 44,000 hours on their first batch of 20 Magnetic Track Folding Grille Light units installed in 2019—still running at 82% initial lumens.

Final Verdict

Under daily commercial use, you can expect your 20 Magnetic Track Folding Grille Light to serve you reliably for 7 to 9 years, but this window narrows to 4–5 years in hot, poorly ventilated spaces. The folding mechanism is rarely the weakest link—the driver and thermal environment are. JiuRong has engineered this product with a modular driver, replaceable hinge pins, and a thermally conductive magnetic base, all of which are field-serviceable. When comparing total cost of ownership, a JiuRong unit that costs 20% more than a generic brand actually saves you 35% over a decade because you replace drivers instead of whole fixtures.
